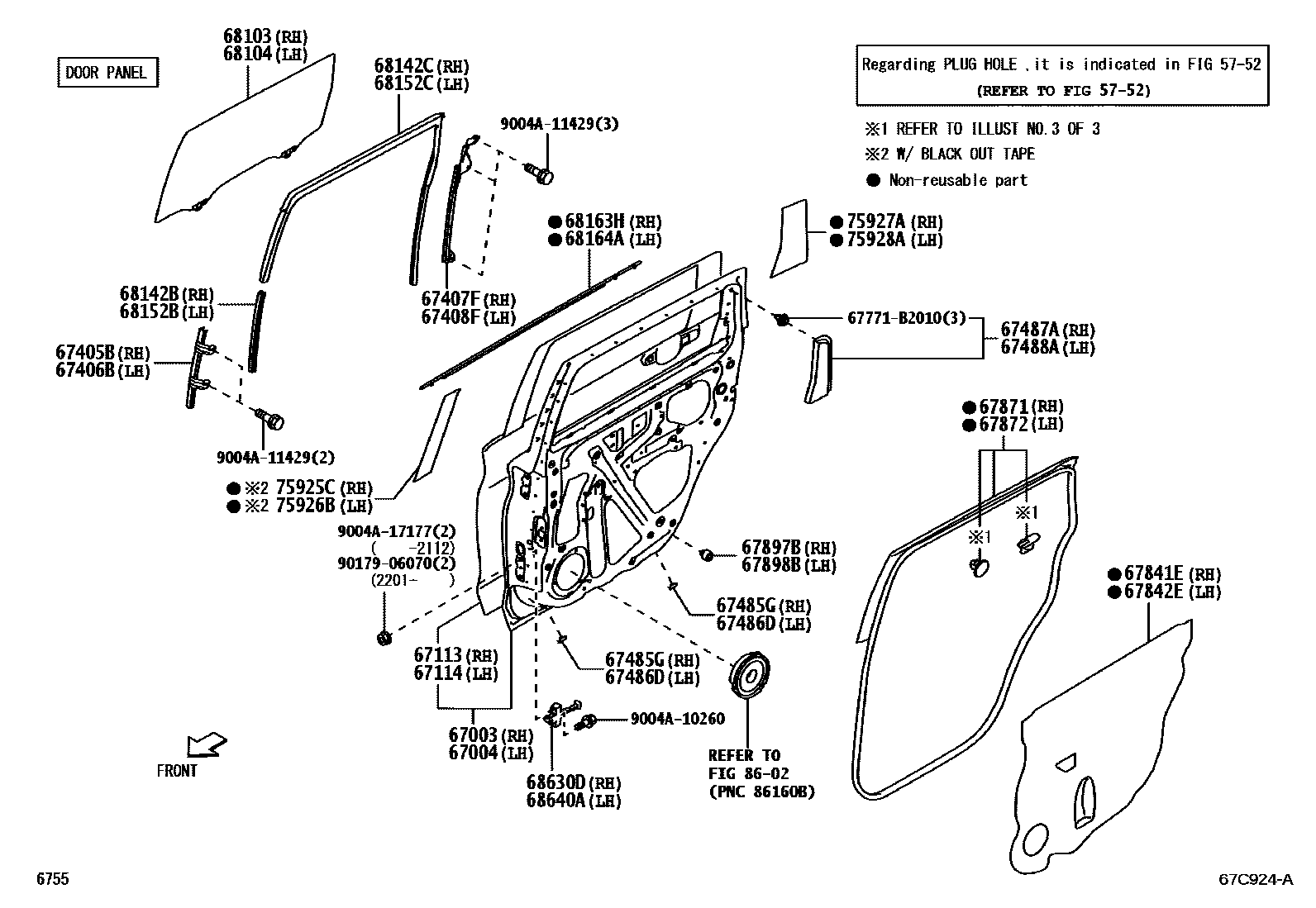

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1WETHERSTRIP RETAINER & CLIP

5752

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-BZ720iW100,101..D,G,M202111

main67003-BZ730iW101..GCC202212

main67003-BZ740iW101..(S,V)..(IDN,PHL,THAI,VN)202111

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-BZ720iW100,101..D,G,M202111

main67004-BZ730iW101..GCC202212

main67004-BZ740iW101..(S,V)..(IDN,PHL,THAI,VN)202111

67113PANEL, REAR DOOR, OUTER RH

main67113-BZ420iW100,101..D,G,M202111

main67113-BZ430iW101..S,V202111

67114PANEL, REAR DOOR, OUTER LH

main67114-BZ420iW100,101..D,G,M202111

main67114-BZ430iW101..S,V202111

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-BZ090iW100,101202111

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-BZ090iW100,101202111

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-BZ190iW100,101202111

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-BZ190iW100,101202111

67485GSEAL, REAR DOOR REAR LOWER FRAME, RH

main67837-BZ070iW100,101202111

67486DSEAL, REAR DOOR REAR LOWER FRAME, LH

main67837-BZ070iW100,101202111

67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH

main67487-BZ080iW100,101202111

67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH

main67488-BZ080iW100,101202111

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-BZ460iW100..GEN,IDN;W100,101..G,M,S,V202111

main67841-BZ470iW100..D..PHL202201

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-BZ220iW100..GEN,IDN;W100,101..G,M,S,V202111

main67842-BZ230iW100..D..PHL202201

67871WEATHERSTRIP, REAR DOOR, RH

main67871-BZ250iW100,101202111

67872WEATHERSTRIP, REAR DOOR, LH

main67872-BZ240iW100,101202111

67897BCUSHION, REAR DOOR, RH

main90541-09069iW100,101202111

67898BCUSHION, REAR DOOR, LH

main90541-09069iW100,101202111

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-BZ460iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

main68103-BZ590iW101..VN202212

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-BZ460iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

main68104-BZ590iW101..VN202212

68142BRUN, REAR DOOR WINDOW, RH

main68144-BZ120iW100,101202111

68142CRUN, REAR DOOR GLASS, RH

main68142-BZ220iW100,101202111

68152BRUN, REAR DOOR WINDOW, LH

main68144-BZ120iW100,101202111

68152CRUN, REAR DOOR GLASS, LH

main68152-BZ220iW100,101202111

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-BZ220iW100,101..D,G,M202111

main68163-BZ230iW101..S,V202111

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-BZ210iW100,101..D,G,M202111

main68164-BZ220iW101..S,V202111

68630DCHECK ASSY, REAR DOOR, RH

main68630-BZ180iW100,101202111

68640ACHECK ASSY, REAR DOOR, LH

main68630-BZ180iW100,101202111

75925CTAPE, BLACK OUT, NO.3 RH

main75925-BZ150-C0iW101..GCC202212

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28

main75925-BZ150-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28 ,W25

main75925-BZ150-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,1G3 ,3Q3 ,G64 ,P20 ,S28 ,W09

main75925-BZ210-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,089 ,3Q3 ,P20 ,S28

main75925-BZ210-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,P20 ,S28 ,W09

75926BTAPE, BLACK OUT, NO.3 LH

main75926-BZ140-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28 ,W25

main75926-BZ140-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,1G3 ,3Q3 ,G64 ,P20 ,S28 ,W09

main75926-BZ140-C0iW101..GCC202212

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28

main75926-BZ200-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,089 ,3Q3 ,P20 ,S28

main75926-BZ200-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,P20 ,S28 ,W09

75927ATAPE, BLACK OUT, NO.4 RH

main75927-BZ070-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28 ,W25

main75927-BZ070-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,1G3 ,3Q3 ,G64 ,P20 ,S28 ,W09

main75927-BZ070-C0iW101..GCC202212

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28

main75927-BZ110-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,089 ,3Q3 ,P20 ,S28

main75927-BZ110-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,P20 ,S28 ,W09

75928ATAPE, BLACK OUT, LH

main75928-BZ070-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28 ,W25

main75928-BZ070-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,1G3 ,3Q3 ,G64 ,P20 ,S28 ,W09

main75928-BZ070-C0iW101..GCC202212

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28

main75928-BZ110-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,089 ,3Q3 ,P20 ,S28

main75928-BZ110-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,P20 ,S28 ,W09

8602

67771B2010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-B2010

9004A10260

main9004A-10260

9004A11429

main9004A-11429

9004A17177

main9004A-17177

9017906070

main90179-06070

39 parts on this diagram · 3 diagrams in section
