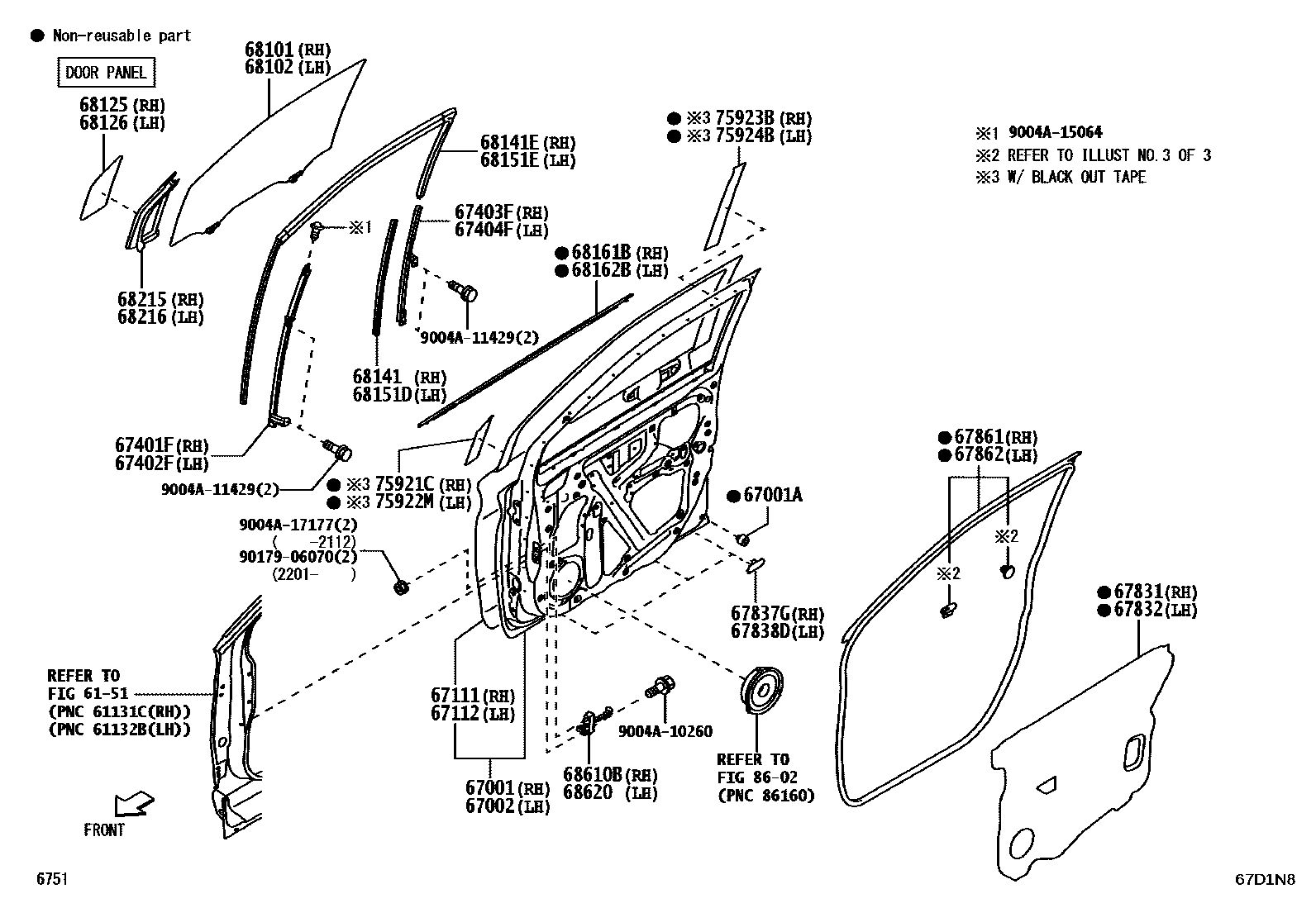

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1WEATHERSTRIP RETAINER & CLIP

6151

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-BZ710iW100,101..GEN,IDN,MXC,PHL,THAI,VN202111

main67001-BZ720iW101..GCC202212

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iW100,101¥170202111

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-BZ710iW100,101..GEN,IDN,MXC,PHL,THAI,VN202111

main67002-BZ720iW101..GCC202212

67111PANEL, FRONT DOOR, OUTER RH

main67111-BZ410iW100,101202111

67112PANEL, FRONT DOOR, OUTER LH

main67112-BZ410iW100,101202111

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-BZ150iW100,101202111

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-BZ160iW100,101202111

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-BZ180iW100,101202111

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-BZ180iW100,101202111

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-BZ490iW100,101202111

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-BZ130iW100,101202111

67837GSEAL, FRONT DOOR VENT, RH

main67837-BZ070iW100,101202111

67838DSEAL, FRONT DOOR VENT, LH

main67837-BZ070iW100,101202111

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-BZ250iW100,101202111

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-BZ240iW100,101202111

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-BZ400iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

main68101-BZ540iW101..VN202212

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-BZ400iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

main68102-BZ530iW101..VN202212

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-BZ070iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

main68125-BZ090iW101..VN202212

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-BZ070iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

main68126-BZ090iW101..VN202212

68141RUN, FRONT DOOR GLASS

main68143-BZ130iW100,101202111

68141ERUN, FRONT DOOR GLASS, RH

main68141-BZ210iW100,101202111

68151DRUN, FRONT DOOR GLASS, LH

main68143-BZ130iW100,101202111

68151ERUN, FRONT DOOR GLASS, LH

main68151-BZ210iW100,101202111

68161BWEATHERSTRIP, FRONT DOOR GLASS, OUTER RH

main68161-BZ230iW100,101..D,G,M202111

main68161-BZ240iW101..S,V202111

68162BWEATHERSTRIP, FRONT DOOR GLASS, OUTER LH

main68162-BZ220iW100,101..D,G,M202111

main68162-BZ230iW101..S,V202111

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-BZ020iW100,101202111

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-BZ020iW100,101202111

68610BCHECK ASSY, FRONT DOOR, RH

main68610-BZ210iW100,101202111

68620CHECK ASSY, FRONT DOOR, LH

main68610-BZ210iW100,101202111

75921CTAPE, BLACK OUT, NO.1 RH

main75921-BZ170-C0iW100,101..(G,M)..(GEN,IDN,MXC,PHL)202111

TUYAKESI BLACK DUMMYCOLOR,1G3 ,3Q3 ,G64 ,P20 ,S28 ,W09

main75921-BZ170-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28 ,W25

main75921-BZ170-C0iW101..GCC202212

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28

main75921-BZ270-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,089 ,3Q3 ,P20 ,S28

main75921-BZ270-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,P20 ,S28 ,W09

75922MTAPE, BLACK OUT, NO.1 LH

main75922-BZ150-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28 ,W25

main75922-BZ150-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,1G3 ,3Q3 ,G64 ,P20 ,S28 ,W09

main75922-BZ150-C0iW101..GCC202212

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28

main75922-BZ280-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,089 ,3Q3 ,P20 ,S28

main75922-BZ280-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,P20 ,S28 ,W09

75923BTAPE, BLACK OUT, NO.2 RH

main75923-BZ220-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28 ,W25

main75923-BZ220-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,1G3 ,3Q3 ,G64 ,P20 ,S28 ,W09

main75923-BZ220-C0iW101..GCC202212

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28

main75923-BZ280-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,089 ,3Q3 ,P20 ,S28

main75923-BZ280-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,P20 ,S28 ,W09

75924BTAPE, BLACK OUT, NO.2 LH

main75924-BZ210-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28 ,W25

main75924-BZ210-C0iW101..(S,V)..(IDN,PHL,THAI)202111

TUYAKESI BLACK DUMMYCOLOR,1G3 ,3Q3 ,G64 ,P20 ,S28 ,W09

main75924-BZ210-C0iW101..GCC202212

TUYAKESI BLACK DUMMYCOLOR,089 ,1G3 ,3Q3 ,P20 ,S28

main75924-BZ290-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,089 ,3Q3 ,P20 ,S28

main75924-BZ290-C0iW101..(S,V)..VN202212

TUYAKESI BLACK DUMMYCOLOR,P20 ,S28 ,W09

8602

9004A10260

main9004A-10260

9004A11429

main9004A-11429

9004A15064

main9004A-15064

9004A17177

main9004A-17177¥120

9017906070

main90179-06070¥180

40 parts on this diagram · 3 diagrams in section
