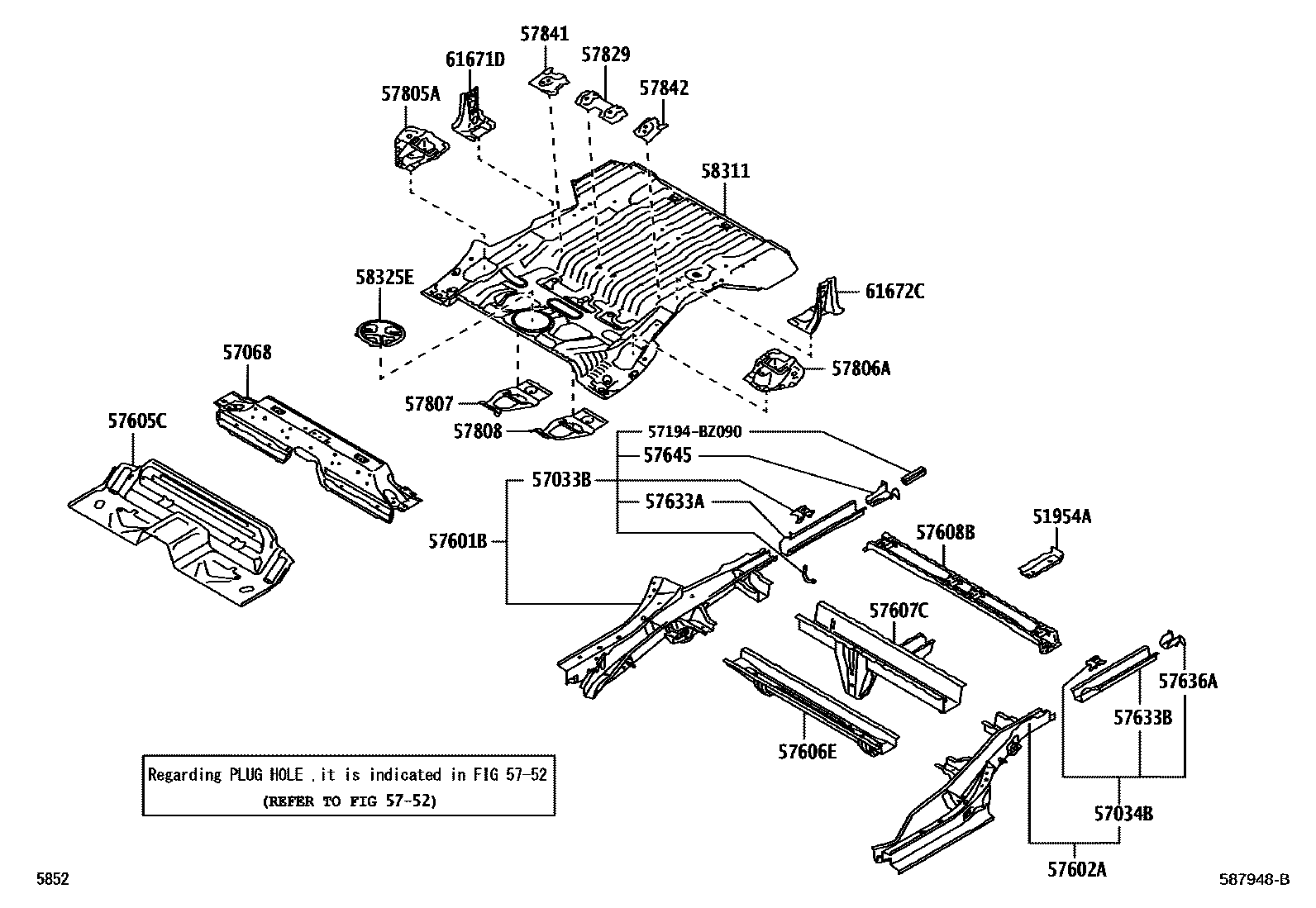

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1REAR FLOOR 0002 1REAR FLOOR 0003 1BACK PANEL

51954ARETAINER, SPARE WHEEL CARRIER

main51989-BZ010iW100,101202111

57033BBRACKET SUB-ASSY, REAR FLOOR MOUNTING, NO.2 RH

main57033-BZ060iW100,101..GCC,GEN,IDN,PHL,THAI,VN202111

main57033-BZ080iW101..MXC202201

57034BBRACKET SUB-ASSY, REAR FLOOR MOUNTING, NO.2 LH

main57034-BZ050iW10#..GCC,GEN,IDN,PHL,THAI,VN202111-202408

main57034-BZ060iW101..MXC202201

main57034-BZ100iW100,101..GCC,GEN,IDN,PHL,THAI,VN202409

PERU + BOLIVIA

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-BZ140iW100,101202111

5752

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-BZ560iW100,101..GEN,IDN,PHL,THAI,VN202111

main57601-BZ570iW101..GCC202212

main57601-BZ590iW101..MXC202201

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-BZ540iW10#..GEN,IDN,PHL,THAI,VN202111-202408

main57602-BZ550iW101..GCC202212-202408

sub57602-BZ551

main57602-BZ551iW101..GCC202409

main57602-BZ560iW101..MXC202201

main57602-BZ800iW100,101..GEN,IDN,PHL,THAI,VN202409

PERU + BOLIVIA

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-BZ210iW100,101202111

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-BZ270iW100,101202111

57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-BZ100iW100,101202111

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-BZ220iW100;W101..CVT..PHL;W101..GCC,GEN,IDN,THAI202111-202408

main57608-BZ270iW101..MXC202201

main57608-BZ340iW100,101..GCC,GEN,IDN,PHL,THAI202409

PERU + BOLIVIA

57633AEXTENSION, REAR FLOOR SIDE MEMBER, REAR RH

main57633-BZ080iW100,101..GCC,GEN,IDN,PHL,THAI,VN202111

main57633-BZ090iW101..MXC202201

57633BEXTENSION, REAR FLOOR SIDE MEMBER, REAR LH

main57634-BZ070iW10#..GCC,GEN,IDN,PHL,THAI,VN202111-202408

main57634-BZ080iW101..MXC202201

main57634-BZ170iW100,101..GCC,GEN,IDN,PHL,THAI,VN202409

PERU + BOLIVIA

57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

main57646-BZ100iW100,101202111

57645REINFORCEMENT, REAR SIDE MEMBER, RH

main57645-BZ150iW100,101202111

57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1

main57805-BZ110iW100,101202111

57806AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2

main57806-BZ080iW100,101202111

57807REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.3

main57807-BZ060iW100,101202111

57808REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.4

main57808-BZ020iW100,101202111

57829REINFORCEMENT, SEAT LEG

main57829-BZ010iW100,101202111

57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH

main57841-BZ090iW100,101202111

57842REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH

main57842-BZ010iW100,101202111

58311PAN, REAR FLOOR

main58311-BZ430iW100,101..GCC,GEN,IDN,PHL,THAI,VN202111

main58311-BZ440iW101..MXC202201-202308

sub58311-BZ630

main58311-BZ630iW101..MXC202309

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-BZ110iW100,101202111

61671DREINFORCEMENT, QUARTER WHEEL HOUSE, RH

main61673-BZ020iW100,101202111

61672CREINFORCEMENT, QUARTER WHEEL HOUSE, LH

main61674-BZ020iW100,101202111

57194BZ090EXTENSION, FRONT SIDE MEMBER, FRONT INNER LH

main57194-BZ090

27 parts on this diagram · 3 diagrams in section
