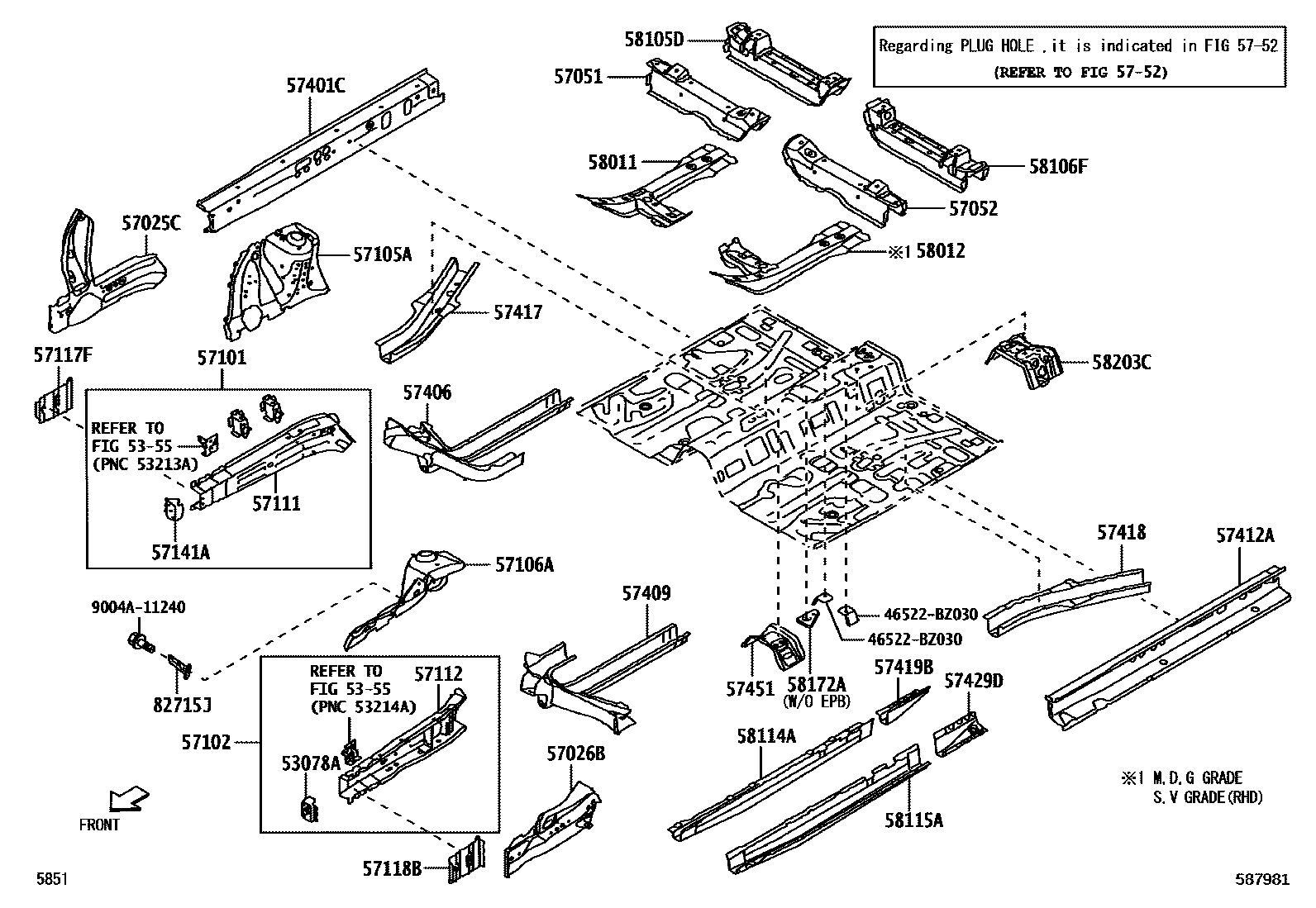

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

53078AEXTENSION SUB-ASSY, FRONT FENDER APRON, LH

main53078-BZ140iW100,101202111

5355

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-BZ070iW100,101202111

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-BZ060iW100,101202111

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-BZ340iW100,101202111

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-BZ230iW100,101202111

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-BZ690iW100,101202111

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-BZ770iW100,101202111

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-BZ200iW100,101202111

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-BZ240iW100,101202111

57111MEMBER, FRONT SIDE, RH

main57111-BZ290iW100,101202111

57112MEMBER, FRONT SIDE, LH

main57112-BZ310iW100,101202111

57117FPLATE, FRONT SIDE MEMBER, NO.2 RH

main57117-BZ080iW100,101202111

57118BPLATE, FRONT SIDE MEMBER, NO.2 LH

main57118-BZ080iW100,101202111

57141ASUPPORT, FRONT BUMPER ARM, RH

main52141-BZ100iW100,101202111

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-BZ470iW10#..RHD202111-202409

main57401-BZ490iW101..CVT..(GCC,PHL,VN)202201-202409

main57401-BZ491iW101..CVT..VN;W101..GCC,MXC,PHL202409

main57401-BZ570iW100,101..RHD202409

main57401-BZ901iW100..LHD;W101..CVT..G..GEN;W101..5F..(GEN,PHL,VN)202201-202208

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-BZ270iW100,101..GCC,GEN,IDN,PHL,THAI,VN202111

main57406-BZ280iW101..MXC202201

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-BZ240iW100,101..GCC,GEN,IDN,PHL,THAI,VN202111

main57409-BZ250iW101..MXC202201

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-BZ490iW10#..LHD202201-202409

main57402-BZ491iW100,101..LHD202409

main57402-BZ500iW101..THAI202201-202409

main57402-BZ560iW101..THAI202409

REAR & REAR SIDE MONITOR(BSM + RCTA)

main57412-BZ360iW100,101..RHD..(GEN,IDN)202111

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-BZ120iW100,101..GCC,GEN,IDN,PHL,THAI,VN202111

main57417-BZ150iW101..MXC202201

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-BZ020iW100,101..GCC,GEN,IDN,PHL,THAI,VN202111

main57418-BZ050iW101..MXC202201

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-BZ080iW100,101202111

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-BZ080iW100,101202111

57451MEMBER, FRONT FLOOR CROSS

main57451-BZ230iW100,101202111

5752

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58025-BZ060iW100,101202111

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58026-BZ060iW100,101..D,G,M;W101..RHD..(S,V)202111

58105DRETAINER SUB-ASSY, SEAT RAIL, REAR RH

main58105-BZ050iW101..MXC202111-202208

main58105-BZ060iW101..CVT..(GCC,PHL,THAI,VN)202201

58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-BZ020iW101..MXC202111-202208

main58106-BZ030iW101..CVT..(GCC,PHL,THAI,VN)202201

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-BZ070iW100,101202111

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-BZ100iW100,101202111

58172APLATE, PARKING BRAKE MOUNTING

main46521-BZ050iW101..5F..PHL202111-202309

58203CBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING

main57055-BZ030iW101..CVT..(GCC,PHL,THAI,VN)202201

main57055-BZ040iW101..MXC202111-202208

82715JBRACKET, WIRING HARNESS CLAMP

main82715-BZE90iW101..5F..PHL202111-202212

46522BZ030

main46522-BZ030

9004A11240

main9004A-11240

36 parts on this diagram · 2 diagrams in section
