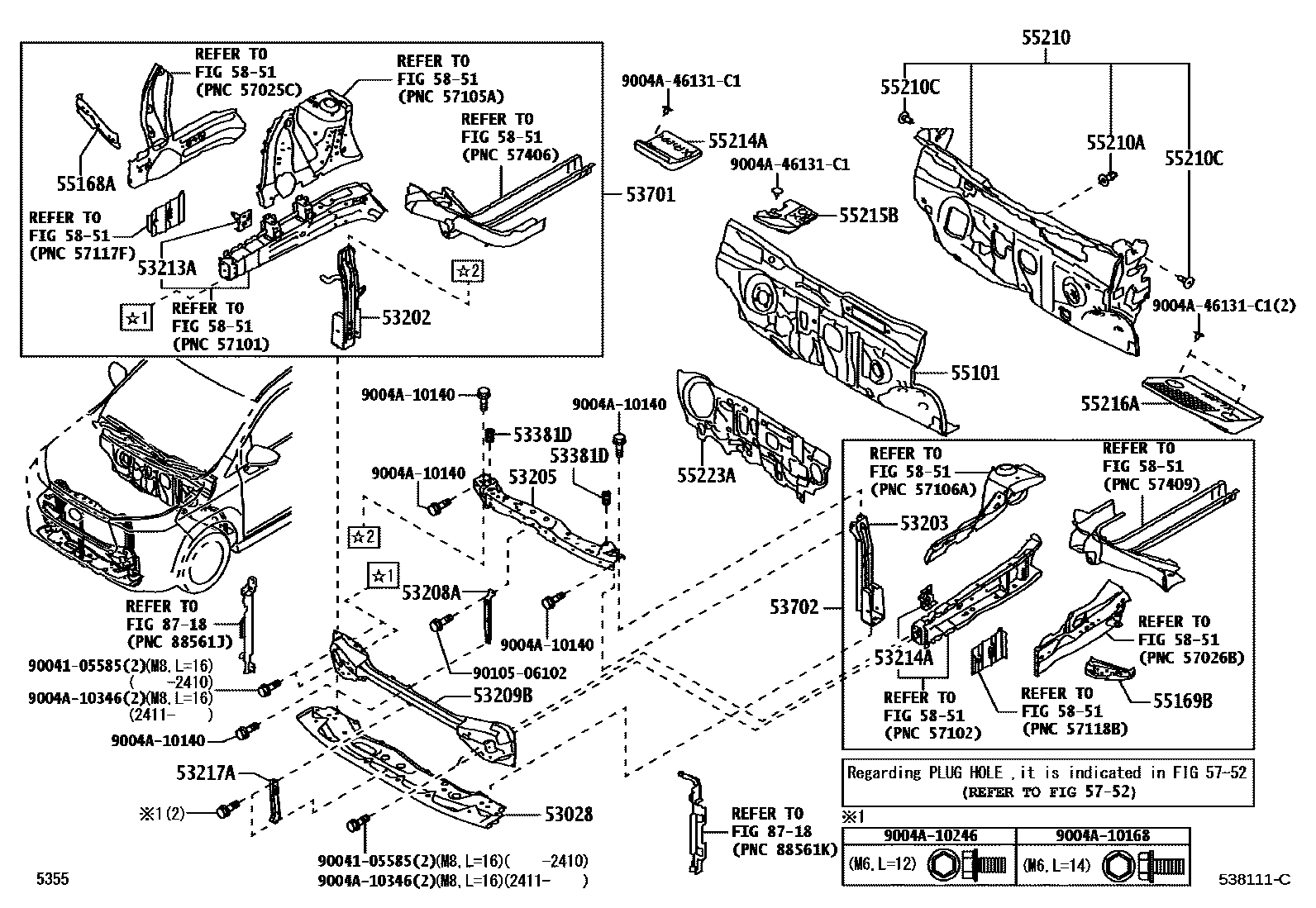

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-BZ240iW100,101202111

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-BZ140iW100,101..GEN,IDN,PHL,THAI,VN202111

main53202-BZ140iW101..MXC202208

PERU + BOLIVIA

main53202-BZ150iW101..GCC,MXC202201

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-BZ240iW101..MXC202208

PERU + BOLIVIA

main53203-BZ240iW100,101..GEN,IDN,PHL,THAI,VN202111

main53203-BZ250iW101..GCC,MXC202201

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-BZ210iW10#202111-202208

sub53205-BZ290

main53205-BZ210iW101..MXC202208-202209

PERU + BOLIVIA

sub53205-BZ290

main53205-BZ290iW10#202209-202408

sub53205-BZ291

main53205-BZ291iW100,101202409

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-BZ260iW100,101202111

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-BZ060iW10#202111-202201

main53209-BZ090iW101..GCC,MXC202201

main53209-BZ160iW100,101..RHD202201

main53209-BZ170iW100,101..LHD..(GEN,PHL,VN)202201

main53209-BZ170iW101..MXC202208

PERU + BOLIVIA

53213ASUPPORT, RADIATOR, UPPER RH

main53213-BZ130iW100,101202111

53214ASUPPORT, RADIATOR, UPPER LH

main53214-BZ110iW100,101202111

53217ABRACE, HOOD LOCK SUPPORT

main53217-BZ030iW100,101..GEN,IDN,MXC,PHL,THAI,VN202111

main53217-BZ050iW101..GCC202212

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-BZ050iW100,101202111

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-BZ610iW101..MXC202201

main53701-BZ700iW100,101..GEN,IDN,PHL,THAI,VN202111

main53701-BZ700iW101..MXC202208

PERU + BOLIVIA

main53701-BZ710iW101..GCC202212

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-BZ780iW101..MXC202208

PERU + BOLIVIA

main53702-BZ780iW100,101..GEN,IDN,PHL,THAI,VN202111

main53702-BZ790iW101..GCC202212

main53702-BZ810iW101..MXC202201

55101PANEL SUB-ASSY, DASH

main55101-BZP00iW101..M..GEN202201

main55101-BZP20iW100,101..LHD..CVT..(GCC,GEN,PHL,VN)202201

main55101-BZP30iW100,101..5F..(GEN,PHL,VN)202201

main55101-BZP90iW100,101..CVT..(IDN,THAI)202111

main55101-BZQ10iW100,101..5F..IDN202111

main55101-BZQ20iW101..CVT..MXC202201

main55101-BZQ30iW101..5F..MXC202201

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-BZ310iW100,101202111

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-BZ210iW100,101202111

55210INSULATOR ASSY, DASH PANEL

main55210-BZ620iW100,101..RHD202111

main55210-BZ680iW100,101..LHD202201

55210ACLIP

main90467-11122iW100,101202111

55210CCLIP

main90467-13079iW100,101202111

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-BZ150iW100,101..RHD202111

main55214-BZ160iW100,101..LHD202201

55215BPAD, DASH PANEL INSULATOR, NO.3

main55215-BZ110iW100,101..RHD..CVT202111

main55215-BZ120iW100,101..5F..IDN202111

main55215-BZ130iW100,101..LHD202201

55216APAD, DASH PANEL INSULATOR, NO.4

main55216-BZ080iW100,101..RHD202111

main55216-BZ090iW100,101..LHD202201

55223AINSULATOR, DASH PANEL, OUTER

main55223-BZ200iW100,101..RHD202111

main55223-BZ220iW100,101..LHD202201

5752

5851

8718

9004105585

main90041-05585

9004A10140

main9004A-10140

9004A10168

main9004A-10168

9004A10246

main9004A-10246

9004A10346

main9004A-10346

9004A46131C1

main9004A-46131C1

9010506102

main90105-06102

32 parts on this diagram · 3 diagrams in section
