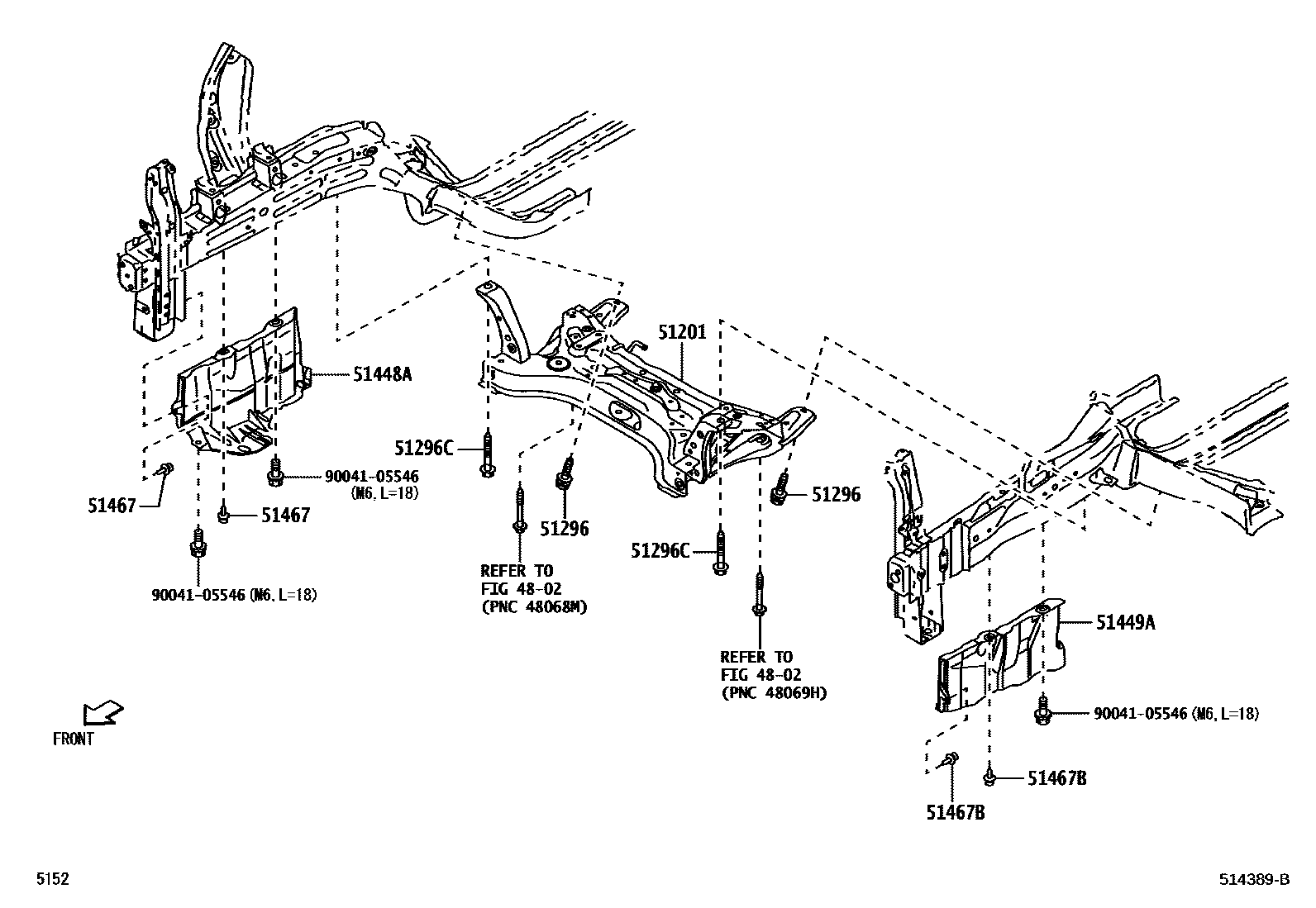

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

4802

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-BZ160iW10#202111-202203

sub51201-BZ161

main51201-BZ161iW100,101202204

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main91673-A1025iW100,101202111-202502

M10,L=31

51296CBOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-05594iW100,101202111

M12,L=91

51448ACOVER, ENGINE SIDE UNDER, RH

main51441-BZ310iW101..VN202212

main51441-BZ340iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

51449ACOVER, ENGINE SIDE UNDER, LH

main51442-BZ150iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

main51442-BZ200iW101..VN202212

51467RETAINER, ENGINE UNDER COVER

main9004A-46323iW100,101202111

51467BRETAINER, ENGINE UNDER COVER

main9004A-46323iW100,101202111

9004105546

main90041-05546

9 parts on this diagram · 3 diagrams in section
