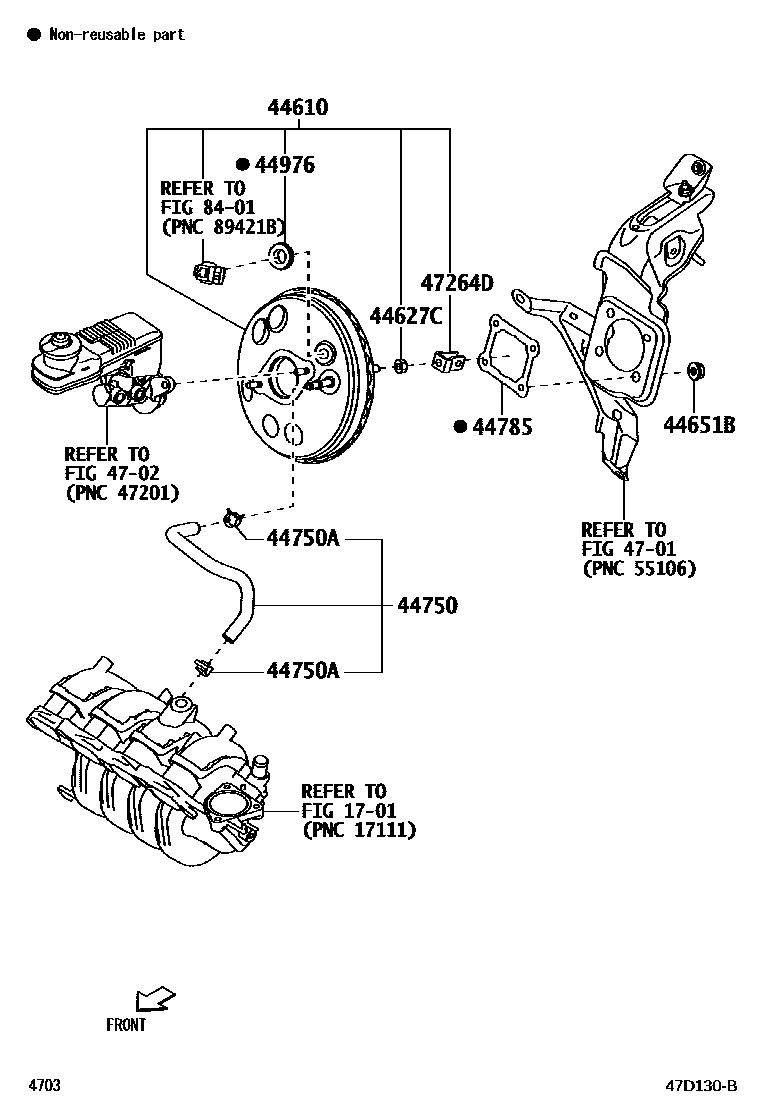

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0004 1W/EJECTOR

1701

44610BOOSTER ASSY, BRAKE

main44610-BZ730iW100,101..RHD202111

main44610-BZA10iW101..5F..PHL202201-202309

main44610-BZA30iW101..MXC202201

44627CNUT, BOOSTER SLEEVE CYLINDER

main9004A-17229iW101..5F..PHL202111-202309

44651BNUT, BOOSTER

main90041-79300iW100,101202111

44750HOSE ASSY, VACUUM

main44750-BZ450iW100,101..RHD202111

main44750-BZ460iW100..LHD;W101..CVT..PHL;W101..LHD..(GCC,GEN,VN)202201-202309

44750ACLIP(FOR VACUUM HOSE ASSY)

main90044-67161iW101..5F..PHL202111-202309

44785GASKET, BRAKE BOOSTER

main47275-BZ010iW100,101202111

sub47278-87703

44976SEAL, BOOSTER

main44685-B2010iW101..5F..PHL202111-202309

4701

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-BZ110iW100,101202111

8401

12 parts on this diagram · 3 diagrams in section
