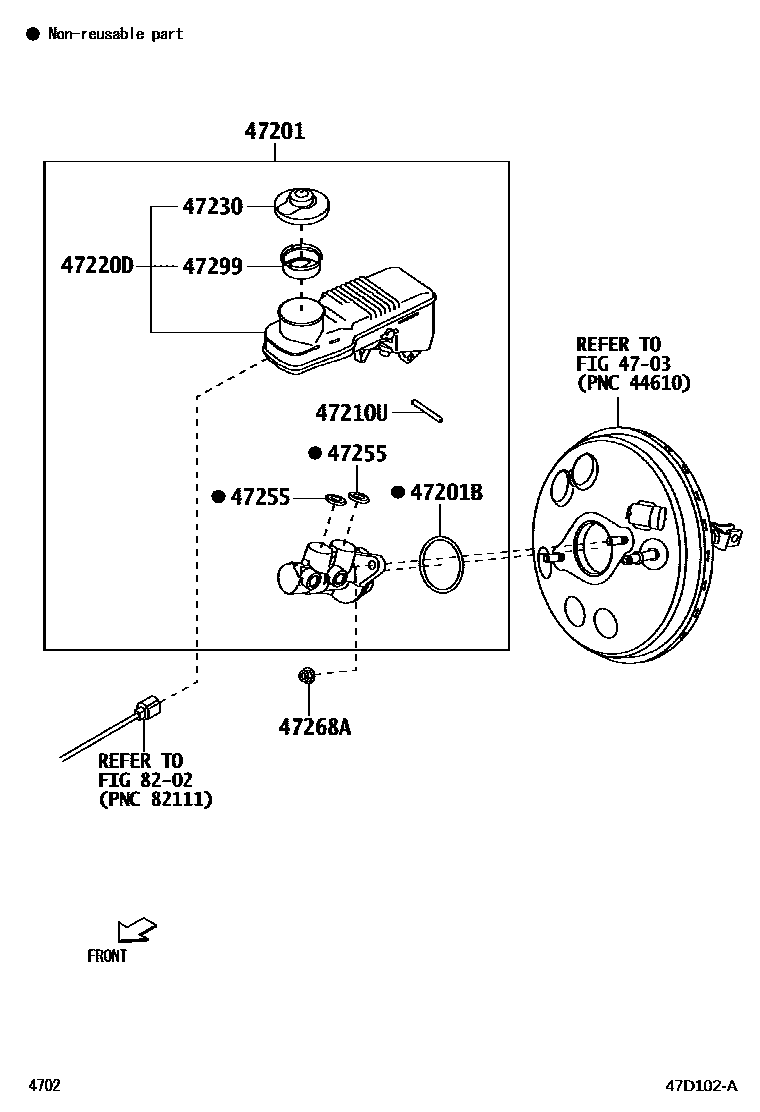

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-BZ760iW100,101..RHD..CVT202111

main47201-BZ770iW100,101..5F..IDN202111

main47201-BZB90iW100,101..LHD..CVT202201

main47201-BZC00iW100,101..LHD..5F202201

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main9004A-30046iW101..5F..PHL202111-202309

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iW101..5F..PHL202111-202309

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-BZ380iW100,101..RHD..CVT202111

main47220-BZ490iW100,101..5F..IDN202111

main47220-BZ500iW100,101..LHD..CVT202201

main47220-BZ510iW101..5F..PHL202201-202309

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-BZ130iW100,101202111

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-BZ110iW100;W101..CVT..PHL;W101..GCC,GEN,IDN,MXC,THAI,VN202111-202309

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124iW101..5F..PHL202111-202309

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-BZ090iW101..5F..PHL202111-202309

8202

10 parts on this diagram · 1 diagram in section
