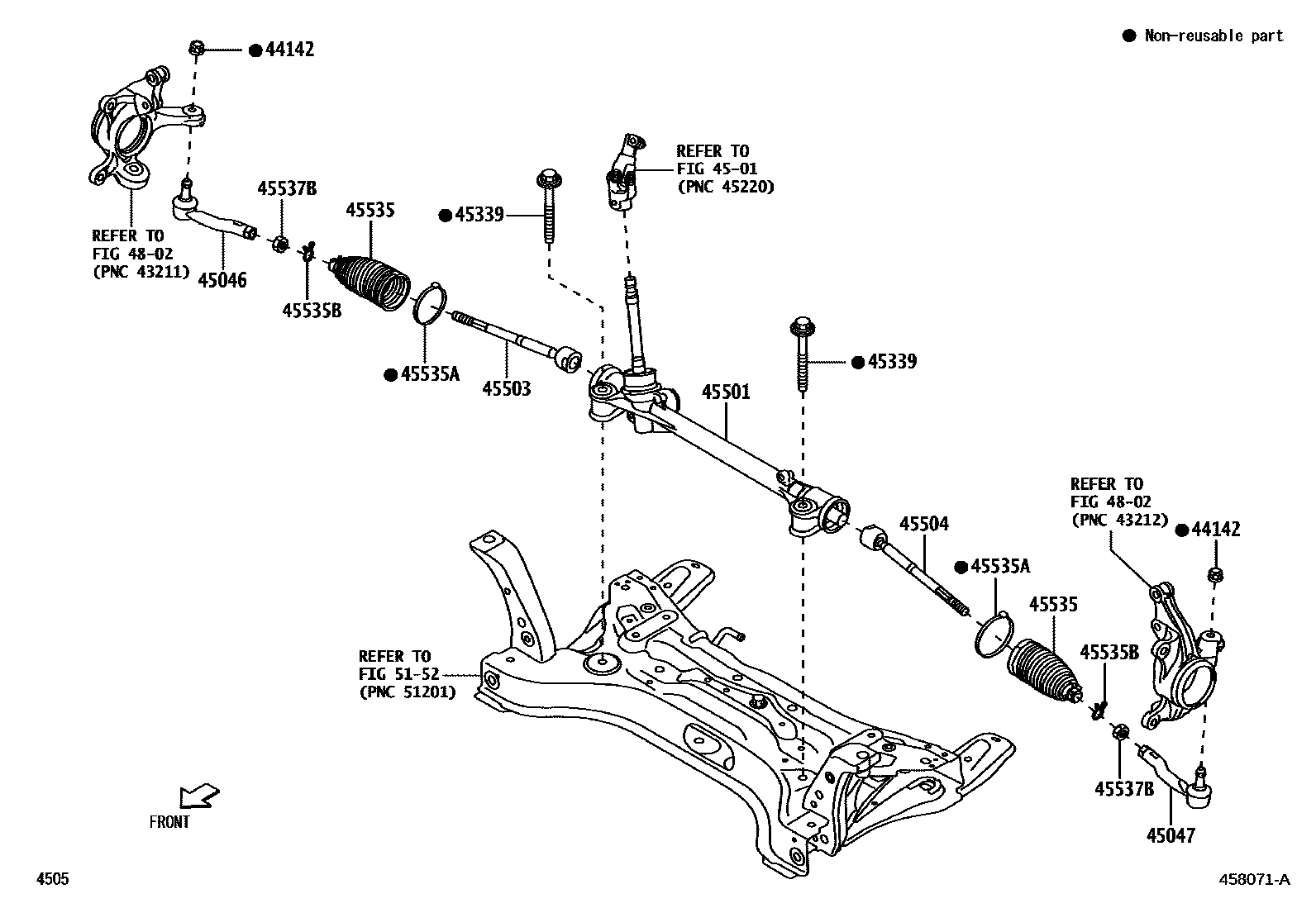

FRONT STEERING GEAR & LINK

0001 1 0002 1

44142NUT, LOCK

main90041-77011iW100,101202111

4501

45046END SUB-ASSY, TIE ROD, RH

main45046-BZ270iW100,101202111

45047END SUB-ASSY, TIE ROD, LH

main45047-BZ160iW100,101202111

45339BOLT, STEERING GEAR HOUSING

main90041-19A33iW100,101202111

45501HOUSING SUB-ASSY, STEERING RACK

main45501-BZ100iW100,101..RHD..(D,M,S)202111

main45501-BZ110iW101..RHD..V202111

main45501-BZ120iW100,101..LHD..(D,G,M,S)202201

main45501-BZ130iW101..LHD..V202201

45503END SUB-ASSY, STEERING RACK

main45503-BZ260iW100,101202111

RH

45504END SUB-ASSY, STEERING RACK, NO.2

main45503-BZ260iW100,101202111

LH

45535BOOT, STEERING RACK, NO.1

main45535-BZ200iW100,101202111

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-BZ080iW100,101202111

45535BCLIP(FOR STEERING RACK BOOT)

main45537-BZ050iW100,101202111

45537BNUT, RACK END LOCK

main9004A-17145iW100,101202111

4802

5152

14 parts on this diagram · 2 diagrams in section
