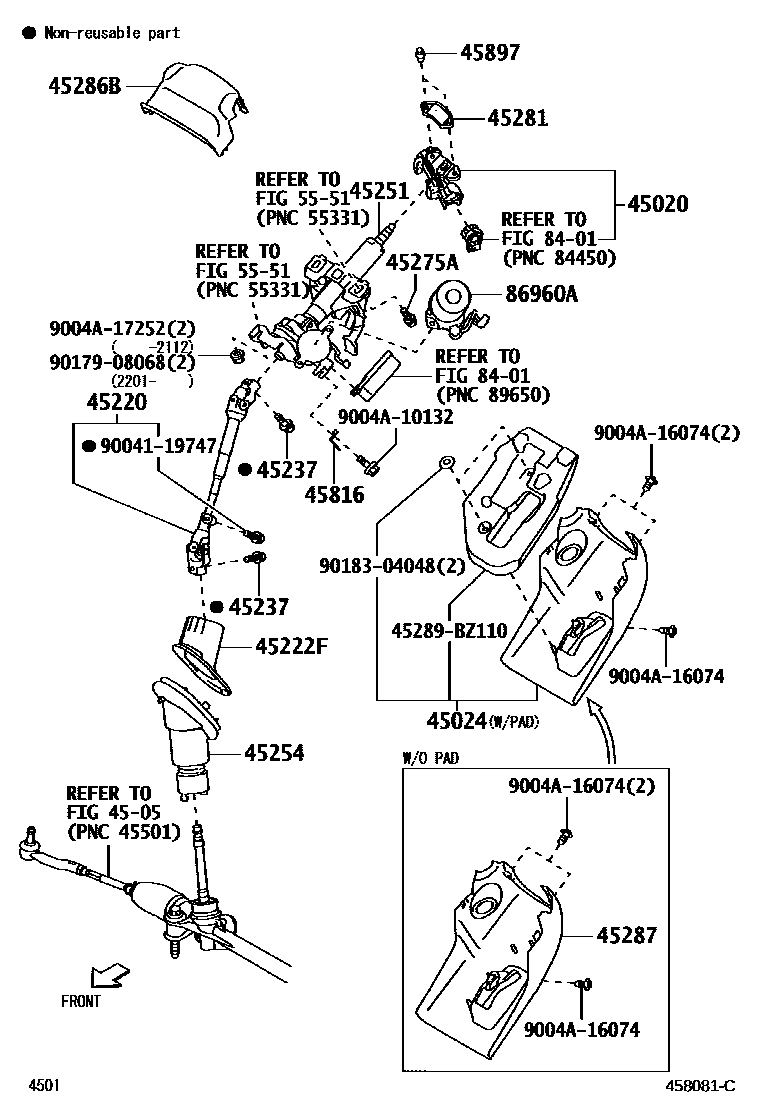

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-BZ400iW100..CVT;W101..CVT..MXC202111

main45020-BZ410iW100..5F;W101..5F..G202111

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-BZ100-C0iW100..IDN,PHL202111

BLACK,TRIM2#

main45024-BZ110-C0iW101..M..(IDN,PHL,VN)202111-202409

BLACK,TRIM2#

main45024-BZ210-C0iW101..(S,V)..(IDN,PHL,THAI,VN)202409

BLACK,TRIM2#

4505

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-BZ450iW100,101..RHD202111

main45220-BZ460iW100,101..LHD202201

45222FCOVER, DUST

main45222-BZ210iW100,101..RHD202111

main45222-BZ220iW100,101..LHD202201

45237BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)

main90041-19747iW100,101202111

45251TUBE SET, STEERING COLUMN

main45251-B9270iW100;W101..MXC;W101..5F..GEN202111

main45251-B9280iW101..LHD..5F..M202201

main45251-B9290iW101..LHD..CVT..(GEN,PHL,VN);W101..(M,S,V)..(GCC,GEN,IDN,THAI)202111

main45251-B9715iW101..RHD..CVT202409

STEERING COLUMN-TILT&TELESCO,W/O LOCK

main45251-B9720iW101..LHD..CVT..(GCC,GEN,PHL)202409

STEERING COLUMN-TILT&TELESCO,W/O LOCK

45254SHIELD, STEERING COLUMN HOLE

main45254-BZ270iW100,101..RHD202111

main45254-BZ280iW100,101..LHD202201

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main90041-20097iW100,101202111

45281HOUSING, STEERING COLUMN

main45281-BZ160iW100;W101..MXC;W101..5F..GEN202111

45286BCOVER, STEERING COLUMN, UPR

main45023-BZ010-C0iW101..S,V202111-202409

BLACK,TRIM2#

main45023-BZ040-C0iW101..S,V202409

BLACK,TRIM2#

main45286-BZ340-C0iW100;W101..MXC;W101..5F..GEN202111

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45287-BZ430-C0iW101..MXC;W100,101..5F..GEN202201

BLACK,TRIM2#

main45287-BZ430-C0iW100..CVT..IDN202111

RHD GENERAL EXP,BLACK,TRIM2#

main45287-BZ440-C0iW101..M;W101..CVT..G..GEN202111-202409

BLACK,TRIM2#

45816BRACKET, WIRE HARNESS

main82715-BZE80iW101..5F..PHL202111-202212

45897BOLT, STEERING LOCK SET

main45897-B2010iW100;W101..MXC;W101..5F..GEN202111

5551

8401

86960AMOTOR SET, POWER STEERING

main80960-B9191iW100,101202111

45289BZ110RING, STEERING COLUMN COVER

main45289-BZ110

9004119747

main90041-19747

9004A10132

main9004A-10132

9004A16074

main9004A-16074

9004A17252

main9004A-17252

9017908068

main90179-08068

9018304048

main90183-04048

24 parts on this diagram · 5 diagrams in section
