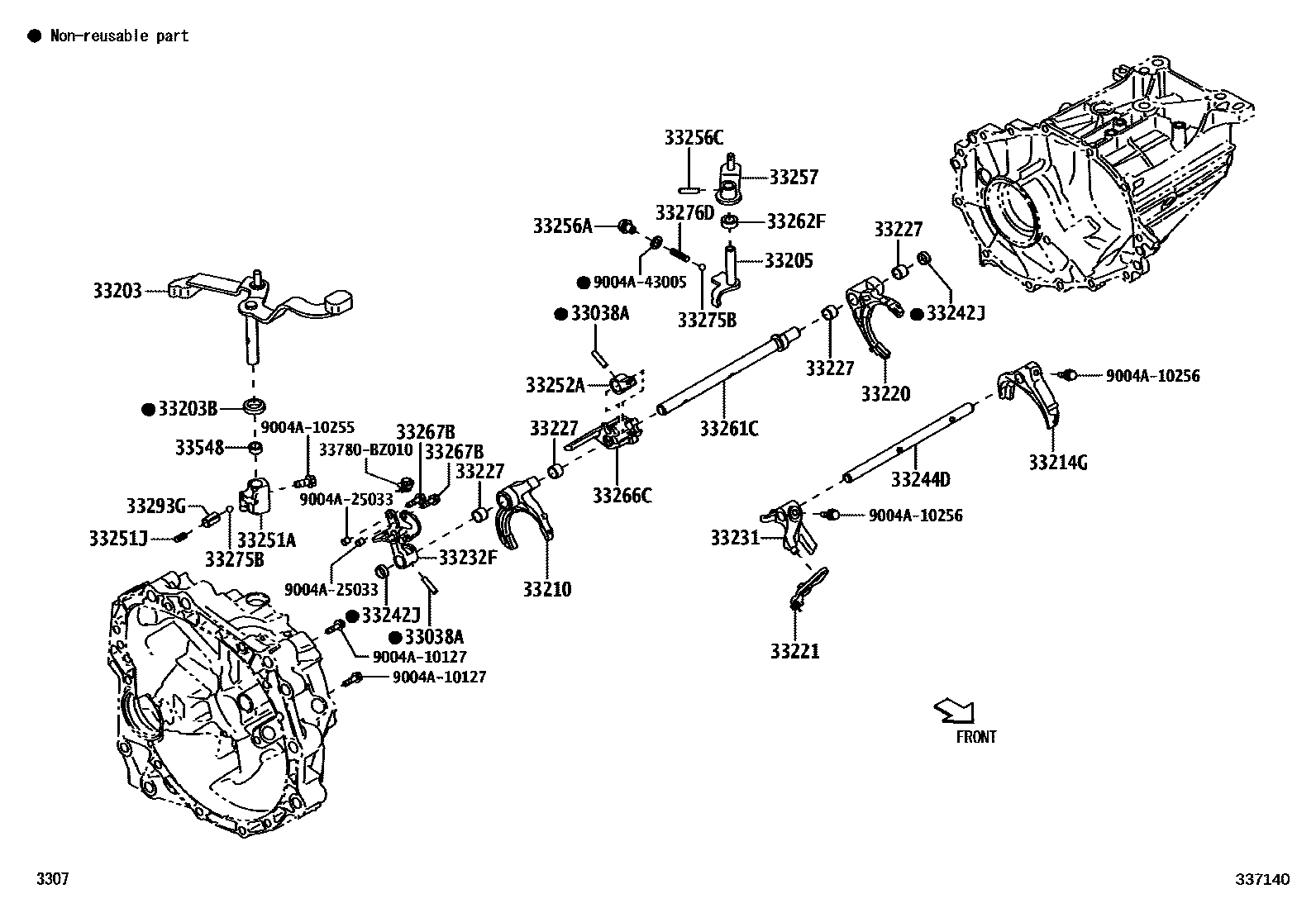

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33038APIN, SLOTTED SPRING
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33210FORK ASSY, GEAR SHIFT, NO.1
33214GFORK, GEAR SHIFT, NO.3
33220FORK ASSY, GEAR SHIFT, NO.2
33221ARM, REVERSE SHIFT
33227BUSH, SHIFT FORK GUIDE
33231HEAD, REVERSE SHIFT
33232FHEAD, GEAR SHIFT, NO.1
33242JBUSH (FOR SHIFT FORK SHAFT)
33244DSHAFT, GEAR SHIFT FORK, NO.3
33251ALEVER, SHIFT, INNER NO.1
33251JSPRING, COMPRESSION (FOR SHIFT INNER LEVER)
33252ALEVER, SHIFT, INNER NO.2
33256ABOLT, SET (FOR SELECT INNER LEVER)
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33257LEVER, SELECT OUTER
33261CSHAFT, SHIFT & SELECT LEVER
33262FSEAL, OIL (FOR SELECT LEVER SHAFT)
33266CPLATE, SHIFT INTERLOCK
33267BBOLT (FOR SHIFT GATE PLATE)
33275BBALL, SHAFT DETENT
33276DSPRING, COMPRESSION (FOR SELECT LEVER SHAFT)
33293GHOLDER, LOCK BALL
33548BUSH, SHIFT LEVER
33780BZ010GUIDE ASSY, SHIFTING ROD
main33780-BZ010
9004A10127
main9004A-10127
9004A10255
main9004A-10255
9004A10256
main9004A-10256
9004A25033
main9004A-25033
9004A43005
33 parts on this diagram · 1 diagram in section
