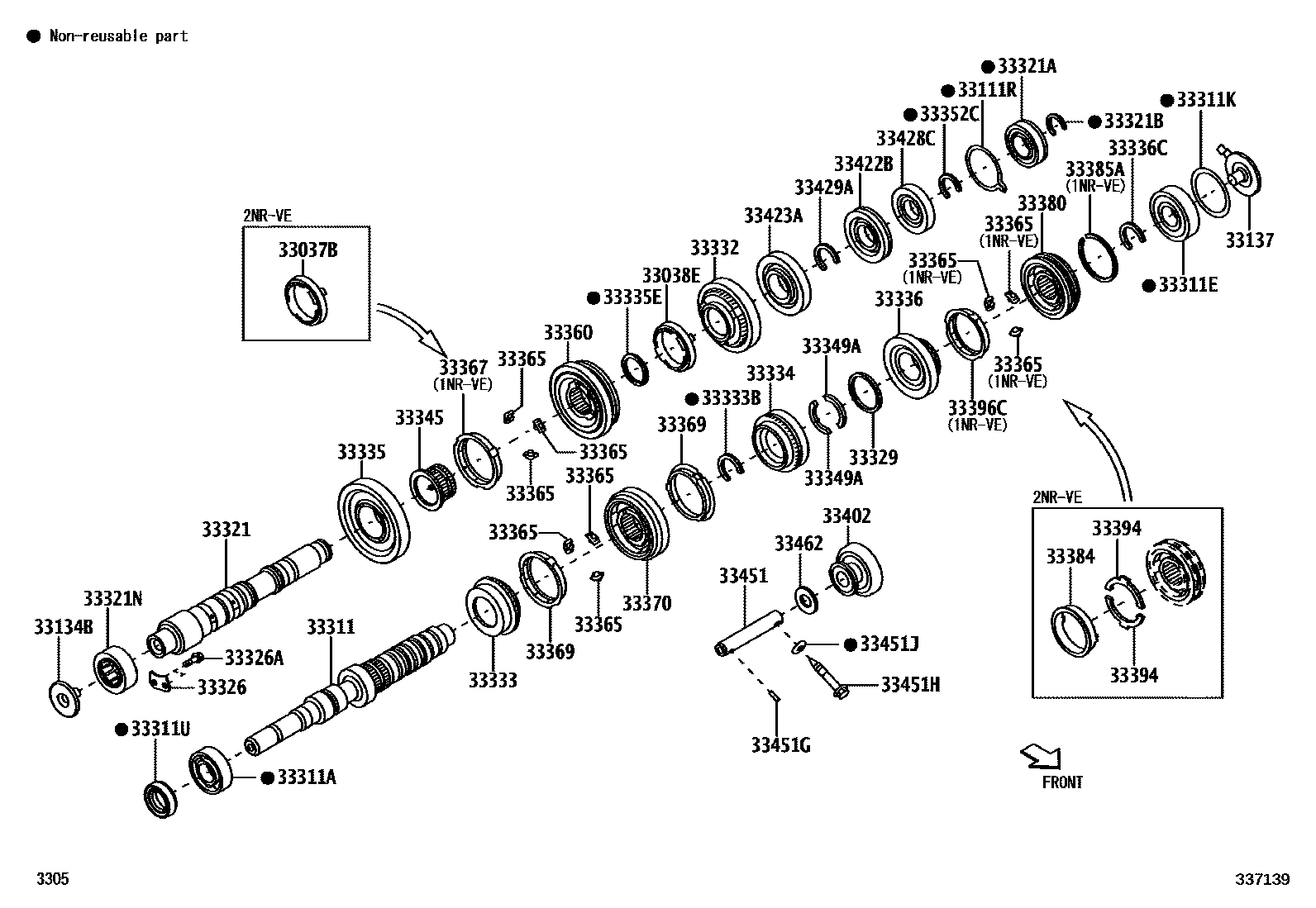

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33038ERING SET, SYNCHRONIZER, NO.2
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33134BCOVER, OUTPUT SHAFT(MTM)
33137COVER, INPUT SHAFT(MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311KSHIM (FOR INPUT SHAFT REAR BEARING)
T=0.99
T=1.07
T=1.15
T=1.23
T=1.31
T=1.39
T=1.47
T=1.55
33311USEAL, OIL (FOR INPUT SHAFT)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.840
T=1.900
T=1.960
T=2.020
T=2.080
T=2.140
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33326PLATE, BEARING LOCK
33326ABOLT (FOR BEARING LOCK PLATE)
33329RING, 4TH WASHER RETAINING
33332GEAR, 2ND
33333GEAR, 3RD
33333BRING, SHAFT SNAP (FOR 3RD REAR)
T=1.82
T=1.88
T=1.94
T=2.00
T=2.06
33335ERING, SHAFT SNAP(FOR 1ST GEAR)
T=1.78
T=1.84
T=1.90
T=1.96
T=2.02
T=2.08
33336CRING, SHAFT SNAP (FOR 5TH GEAR)
T=1.820
T=1.880
T=1.940
T=2.000
T=2.060
33345BUSH, 1ST GEAR
33349AWASHER, 4TH GEAR
33352CRING, SHAFT SNAP
T=1.900
T=1.960
T=2.020
T=2.080
T=2.140
T=2.200
33365KEY, SYNCHROMESH SHIFTING, NO.1
33367RING, SYNCHRONIZER, NO.1
33369RING, SYNCHRONIZER, NO.3
33370HUB ASSY, SYNCHRONIZER, NO.2
33380HUB ASSY, SYNCHRONIZER, NO.3
33384RING, 5TH SYNCHRONIZER OUTER
33385ARING, HOLE SNAP (FOR 5TH SHIFTING KEY RETAINER)
33394KEY, SYNCHROMESH SHIFTING, NO.3
33396CRING, SYNCHRONIZER, NO.5(MTM)
33402GEAR SUB-ASSY, REVERSE IDLER
33423AGEAR, 3RD DRIVEN
33429ARING, SHAFT SNAP
T=1.820
T=1.880
T=1.940
T=2.000
T=2.060
33451SHAFT, REVERSE IDLER GEAR
33451GPIN, SLOTTED SPRING (FOR REVERSE IDLER GEAR SHAFT)
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
48 parts on this diagram · 1 diagram in section
