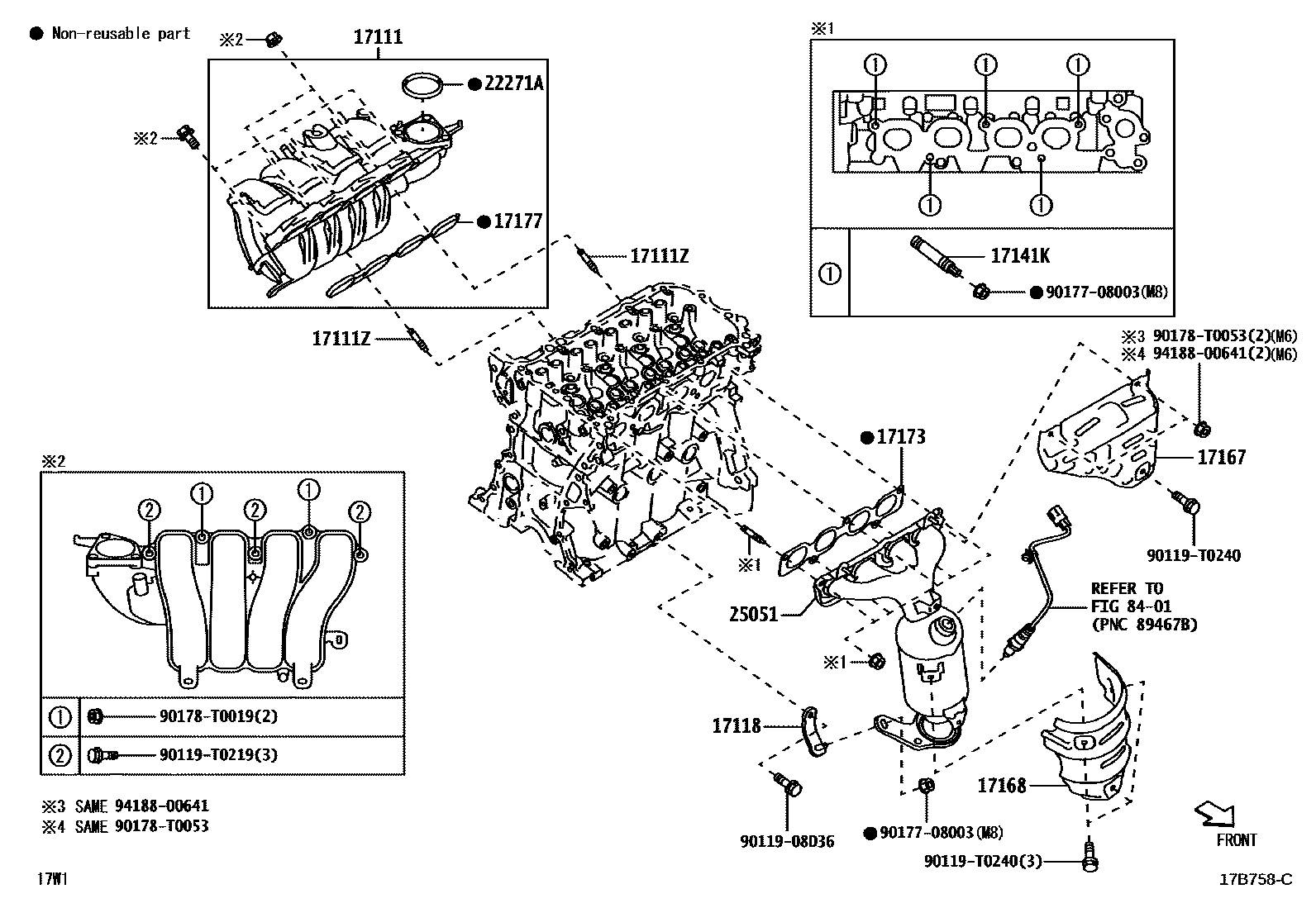

MANIFOLD

17111MANIFOLD, INTAKE

main17120-BZ130i1NRVE,2NRVE..W100,101202111

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-T0019i1NRVE,2NRVE..W100,101¥80202111

17118STAY, MANIFOLD

main17118-0Y031i1NRVE,2NRVE..W100,101202111

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08063i1NRVE,2NRVE..W100,101¥80202111

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0Y020i2NRVE..W101..IDN;1NRVE..W100..IDN,PHL;2NRVE..W101..CVT..PHL202111

SAME 17167-BZ130

main17167-0Y020i2NRVE..W101..5F..PHL;1NRVE,2NRVE..W100,101..GCC,GEN,MXC,THAI,VN202201

main17167-BZ130i2NRVE..W101..(S,V)..IDN202111

SAME 17167-0Y020

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0Y020i1NRVE,2NRVE..W100,101202111

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0Y030i2NRVE..W101..IDN;1NRVE..W100..IDN,PHL;2NRVE..W101..CVT..PHL202111

SAME 17173-BZ070

main17173-0Y030i1NRVE,2NRVE..W100,101..IDN202201

main17173-BZ070i1NRVE,2NRVE..W10#..(D,M)..IDN¥820202111-202401

SAME 17173-0Y030

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0Y030i1NRVE,2NRVE..W100,101¥600202111

22271AGASKET, THROTTLE BODY

main22271-0Y030i1NRVE,2NRVE..W100,101202111

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-BZ140i1NRVE..W100;2NRVE..W101..CVT..PHL;2NRVE..W101..GCC,GEN,IDN202111

main25051-BZ150i2NRVE..W101..5F..(MXC,PHL,VN);2NRVE..W101..CVT..(MXC,THAI,VN)202201

COSTA RICA

8401

9011908D36

main90119-08D36¥100

90119T0219

main90119-T0219

90119T0240

main90119-T0240

9017708003

main90177-08003¥80

90178T0019

main90178-T0019

90178T0053

main90178-T0053

9418800641

main94188-00641¥60

18 parts on this diagram · 1 diagram in section
