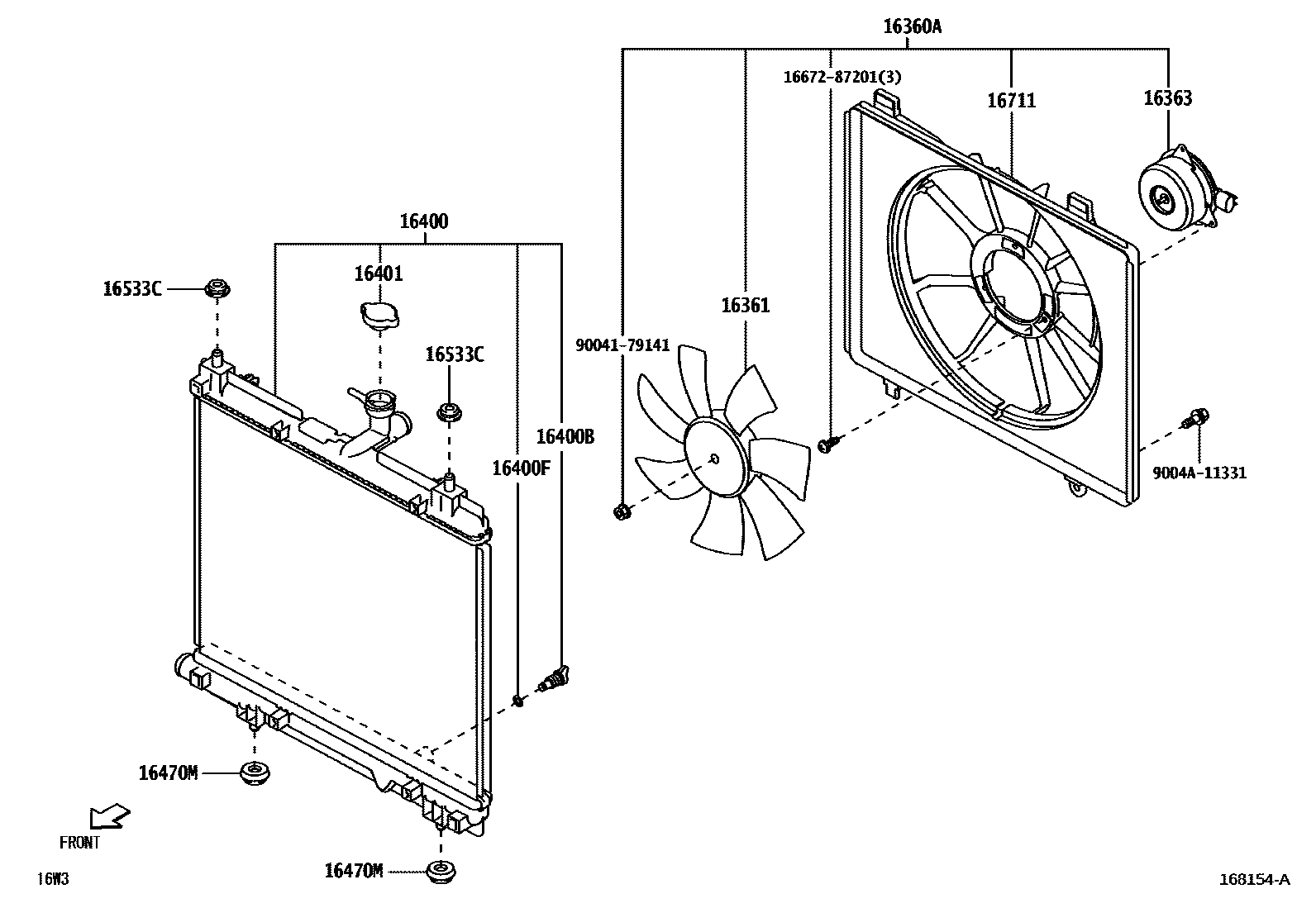

RADIATOR & WATER OUTLET

0001 1(80W) RADIATOR 0002 1(160W) RADIATOR 0003 1(L/HEATER) HOSE, RESERVE TANK0005 1(L/HEATER) HOSE, RESERVE TANK0006 1(L/HEATER) HOSE, RESERVE TANK0008 1(L/HEATER) HOSE, RESERVE TANK0009 1(W/HEATER) HOSE, RESERVE TANK0010 1(W/HEATER) HOSE, RESERVE TANK

16360AFAN ASSY, W/MOTOR

main16360-BZ400i1NRVE..W100;2NRVE..W101..5F..G;2NRVE..W101..IDN,PHL,VN202111

main16360-BZ410i2NRVE..W101..GCC202212-202403

sub16360-BZ411

main16360-BZ411i2NRVE..W101..GCC202404

main16360-BZ430i2NRVE..W101..CVT..(GEN,MXC,THAI)202201-202403

sub16360-BZ431

main16360-BZ431i2NRVE..W101..CVT..(GEN,MXC,THAI)202404

16361FAN

main16361-BZ140i1NRVE..W100;2NRVE..W101..5F..G;2NRVE..W101..IDN,PHL,VN202111

main16361-BZ170i2NRVE..W101..CVT..(GCC,GEN,MXC,THAI)202201

16363MOTOR, COOLING FAN

main16363-BZ190i2NRVE..W101..CVT..(GCC,GEN,MXC,THAI)202201-202403

sub16363-BZ191

main16363-BZ191i2NRVE..W101..CVT..(GCC,GEN,MXC,THAI)202404

main16363-BZ200i1NRVE..W100;2NRVE..W101..5F..G;2NRVE..W101..IDN,PHL,VN202111

16400RADIATOR ASSY

main16400-B0030i2NRVE..W101..GCC202212

main16400-BZB40i1NRVE,2NRVE..W100,101..GEN,IDN,MXC,PHL,THAI,VN202111

16400BPLUG, RADIATOR DRAIN COCK

main16417-30170i1NRVE,2NRVE..W100,101202111

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-87503i1NRVE,2NRVE..W100,101202111

16401CAP SUB-ASSY, RADIATOR

main16401-BZ160i1NRVE,2NRVE..W100,101202111

16470TANK ASSY, RADIATOR RESERVE

main16470-BZ300i1NRVE,2NRVE..W100,101202111

16470MGROMMET

main90044-80592i1NRVE,2NRVE..W100,101202111

16533CGROMMET(FOR RADIATOR SUPPORT)

main9004A-48017i1NRVE,2NRVE..W100,101202111

16711SHROUD, FAN

main16711-BZ210i1NRVE..W100;2NRVE..W101..5F..G;2NRVE..W101..IDN,PHL,VN202111

main16711-BZ220i2NRVE..W101..CVT..(GEN,MXC,THAI)202201

main16711-BZ250i2NRVE..W101..GCC202212

1667287201

main16672-87201

9004179141

main90041-79141

9004A11331

main9004A-11331

14 parts on this diagram · 8 diagrams in section
