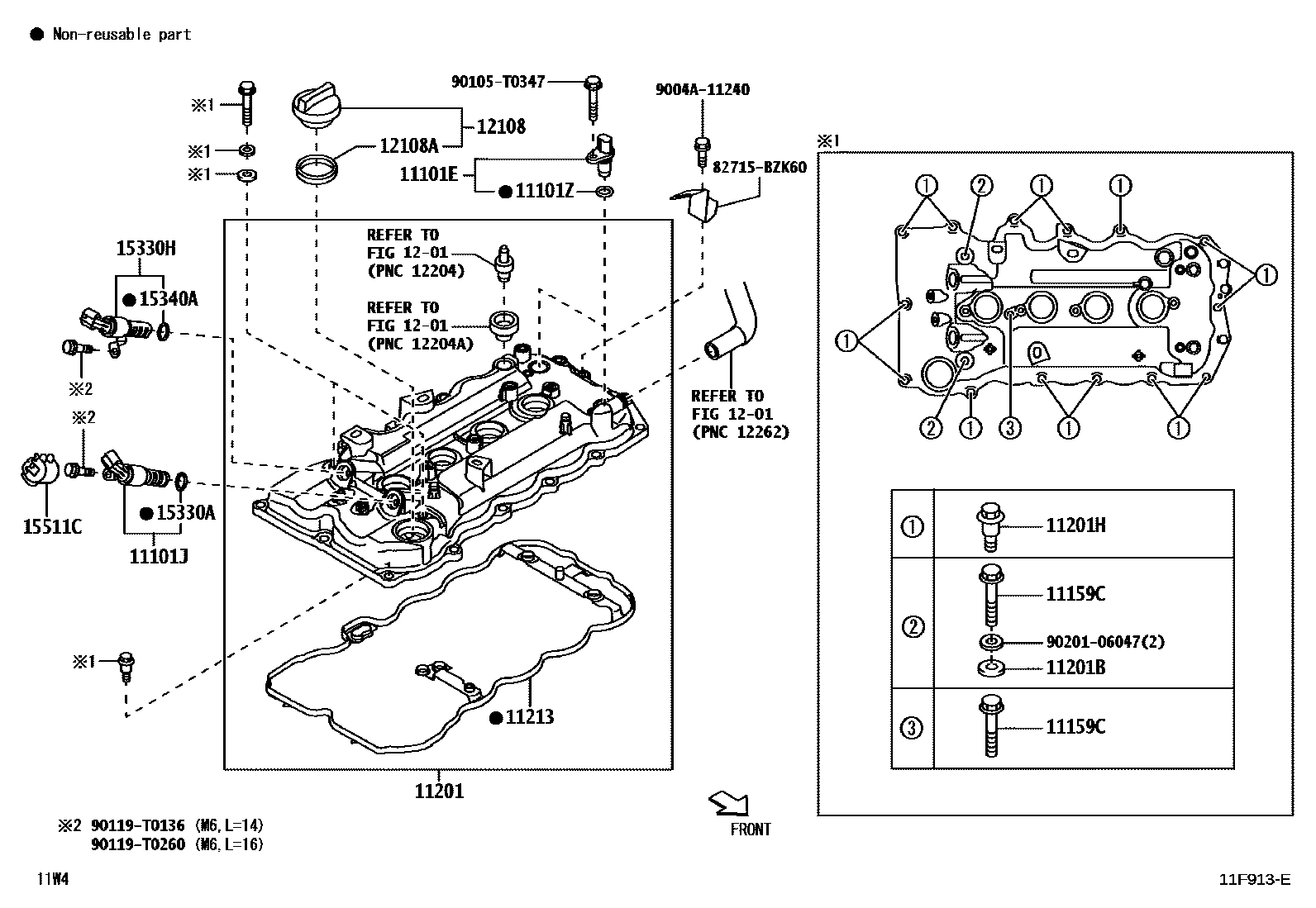

CYLINDER HEAD

0001 1CYLINDER HEAD COVER 0002 1CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-B9625i1NRVE..W100..IDN,PHL;2NRVE..W101..IDN,THAI;2NRVE..W101..CVT..PHL202111

main11101-B9635i2NRVE..W101..CVT..PHL202201-202309

VIETNAM

main11101-B9635i2NRVE..W101..5F..PHL;1NRVE,2NRVE..W100,101..GCC,GEN,MXC,VN202201

11101ESENSOR, CAM POSITION

main90919-T5002i1NRVE,2NRVE..W100,101202111

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-0Y060i1NRVE,2NRVE..W100,101202111

11101ZO RING, CAM POSITION SENSOR

main9004A-30059i2NRVE..W101..(S,V)..IDN202111-202306

main9004A-30059i2NRVE..W101..CVT..PHL202201-202309

VIETNAM

main9004A-30059i2NRVE..W101..CVT..G..GEN202201

COSTA RICA

11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-T0347i1NRVE,2NRVE..W100,101202111

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-BZ160i1NRVE,2NRVE..W100,101202111

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-T0002i1NRVE,2NRVE..W100,101202111

11201HBOLT(FOR CYLINDER HEAD COVER)

main90109-T0055i2NRVE..W101..(S,V)..IDN202111

M6,L=23.5

11213GASKET, CYLINDER HEAD COVER

main11213-BZ110i1NRVE,2NRVE..W100,101202111

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i1NRVE,2NRVE..W100,101202111

12108AGASKET(FOR OIL FILLER CAP)

main90080-43027i1NRVE,2NRVE..W100,101202111

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90068-14041i1NRVE,2NRVE..W100,101202111

15330HVALVE ASSY, CAM TIMING OIL CONTROL

main15330-0Y050i1NRVE,2NRVE..W100,101202111

15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90068-14041i1NRVE,2NRVE..W100,101202111

15511CCOVER, OIL CONTROL VALVE

main15511-BZ010i1NRVE,2NRVE..W100,101202111

82715BZK60BRACKET,WIRING HARNESS CLAMP

main82715-BZK60

9004A11240

main9004A-11240

90105T0347

main90105-T0347

90119T0136

main90119-T0136

90119T0260

main90119-T0260

9020106047

main90201-06047

22 parts on this diagram · 2 diagrams in section
