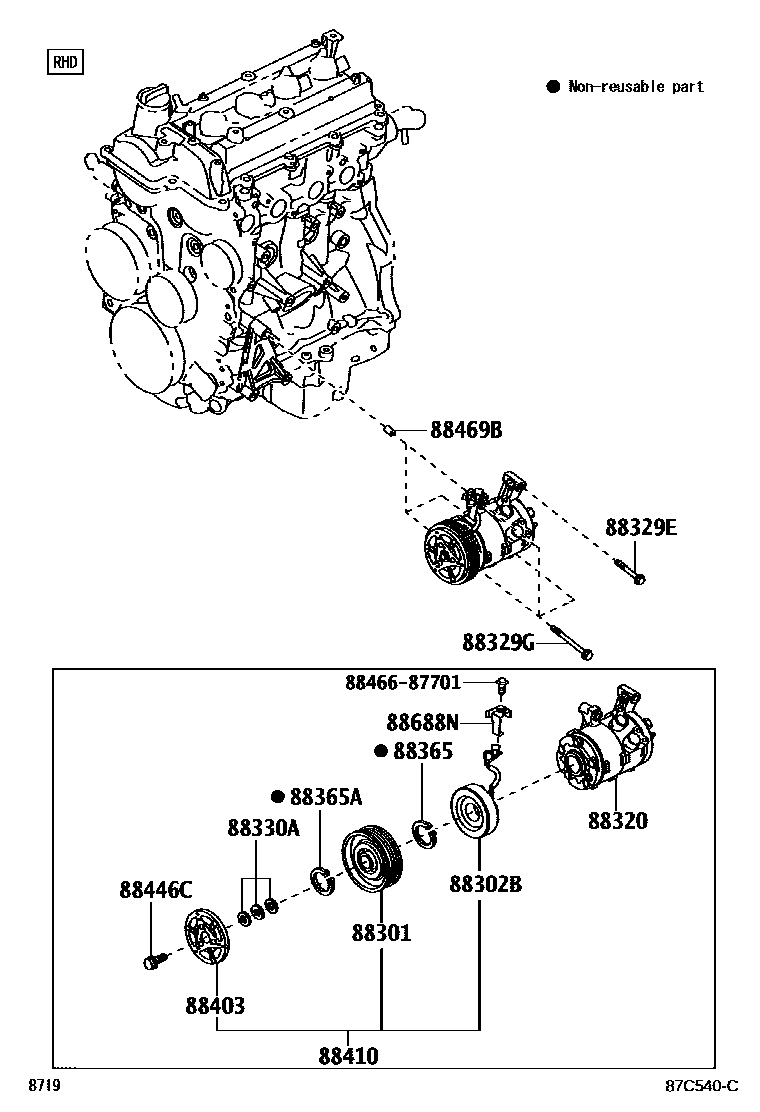

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-BZ110iF652..SPO..IDN201111-201507

RHD GENERAL COUNTRIES

main88412-BZ110iF652..GCC,GEN,MA,MXC,PHL,SA201111-201508

D-OPT KIT

main88412-BZ110iF653..LHD..LO;F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA)201507-202110

main88412-BZ120iF651..IDN201111-201507

RHD GENERAL COUNTRIES

main88412-BZ120iF651..(LO,VB)..SA201111-201508

SINGLE AIRCON (D-OPT)

main88412-BZ150iF654..GCC201508-202201

88302BSTATOR, MAGNET CLUTCH

main88411-BZ050iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GEN,MA,MXC,PHL,SA)201111-201508

D-OPT KIT

main88411-BZ050iF651..(LO,VB)..SA201111-201508

SINGLE AIRCON (D-OPT)

main88411-BZ050iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

main88411-BZ180iF652..GCC201404-201508

main88411-BZ190iF65#..(MID,SPO)..IDN201507-202110

main88411-BZ200iF654..GCC201508-202201

88320COMPRESSOR ASSY, COOLER

main88320-BZ220iF652..MXC;F652..STD..SA;F651..LO..GEN;F651..(MID,STD)..(GEN,SA)201111-201508

SINGLE AIRCON (D-OPT)

main88320-BZ230iF652..TH201111-201508

D-OPT KIT

main88320-BZ230iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

main88320-BZ270iF652..GCC201404-201508

main88320-BZ280iF654..MXC;F653..LO..GEN;F654..STD..(GEN,SA);F653..(MID,STD)..(GEN,SA)201508-201904

SINGLE AIR CONDITIONER(D-OPT)

main88320-BZ280iF654..MXC;F653..LO..GEN;F654..STD..(GEN,SA);F653..(MID,STD)..(GEN,SA)201904

main88320-BZ290iF654..4AT..STD..TH;F654..(SPO,STD)..(MA,PHL);F653..(LO,STD)..(IDN,PHL);F654..MID..(GEN,PHL,SA,TH)201507-202110

main88320-BZ300iF654..GCC201508-202201

88329EBOLT, COMPRESSOR, NO.1

main9004A-10144iF653..LHD..LO;F654..MID..(GEN,MXC,PHL,SA);F653..(MID,STD)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,MA,PHL,SA)201511-201904

SINGLE AIR CONDITIONER(D-OPT)

main9004A-10144iF65#..(MID,SPO)..IDN201511-202110

main91551-80850iF653..LHD..LO;F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA)¥100201111-201510

main91551-80875iF654..GCC¥120201508-202201

88329GBOLT, COMPRESSOR, NO.3

main91551-80880iF65#..IDN¥120201111-201508

main91551-80880iF651..STD..(MA,SA);F652..GCC,GEN,MA,PHL,SA¥120201111-201508

SINGLE AIRCON (D-OPT)

main91551-80880iF651..STD..(MA,SA);F652..GCC,GEN,MA,PHL,SA¥120201111-201508

D-OPT KIT

88330AWASHER (FOR MAGNET CLUTCH)

main88318-87704iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GEN,MA,MXC,PHL,SA)¥0201111-201508

SINGLE AIRCON (D-OPT),T=0.1

main88318-87704iF65#..IDN¥0201111-201508

T=0.1

main88318-87704iF65#..IDN¥0201111-201507

RHD GENERAL COUNTRIES,T=0.1

main88318-87704iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GEN,MA,MXC,PHL,SA)¥0201111-201508

D-OPT KIT,T=0.1

main88318-87705iF652..TH¥0201111-201508

T=0.3

main88318-87705iF652..TH¥0201111-201508

SINGLE AIRCON (D-OPT),T=0.3

main88318-87705iF652..TH¥0201111-201508

D-OPT KIT,T=0.3

main88318-87706iF652..TH¥0201111-201508

T=0.5

main88318-87706iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GEN,MA,MXC,PHL,SA)¥0201111-201508

SINGLE AIRCON (D-OPT),T=0.5

main88318-87706iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GEN,MA,MXC,PHL,SA)¥0201111-201508

D-OPT KIT,T=0.5

88365RING, SNAP

main90099-07125iF65#..IDN¥250201111-201507

RHD GENERAL COUNTRIES

main90099-07125iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)¥250201111-201508

SINGLE AIRCON (D-OPT)

main90099-07125iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)¥250201111-201508

D-OPT KIT

main90099-07125iF653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA)¥250201507-202110

88365ARING, SNAP (FOR COMPRESSOR)

main90099-07114iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

SINGLE AIRCON (D-OPT)

main90099-07114iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

main90099-07114iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

D-OPT KIT

main90099-07114iF653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA)201507-202110

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-87301iF654..GCC201508-202201

main88403-BZ080iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

SINGLE AIRCON (D-OPT)

main88403-BZ080iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

D-OPT KIT

main88403-BZ080iF653..LHD..LO;F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA)201507-202110

main88403-BZ080iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

88410CLUTCH ASSY, MAGNET

main88410-BZ210iF652..IDN201111-201507

RHD GENERAL COUNTRIES

main88410-BZ210iF652..GEN,MA,MXC,PHL,SA201111-201508

D-OPT KIT

main88410-BZ220iF651..LHD..LO;F651..(MID,STD)..(GEN,MA,PHL,SA)201111-201508

SINGLE AIRCON (D-OPT)

main88410-BZ220iF651..IDN201111-201507

RHD GENERAL COUNTRIES

main88410-BZ280iF652..GCC201404-201508

main88410-BZ300iF65#..(MID,SPO)..IDN201507-202110

main88410-BZ310iF654..GCC201508-202201

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

main90099-04349iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

SINGLE AIRCON (D-OPT)

main90099-04349iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

D-OPT KIT

main90099-04349iF653..LHD..LO;F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA)201507-202110

main90099-04598iF654..GCC¥90201508-202201

88469BCOLLAR

main9004A-38031iF651..MID..IDN;F652..SPO..IDN201111-201507

RHD GENERAL COUNTRIES

main9004A-38031iF651,652..(MID,SPO,STD)..(MA,SA)201111-201508

SINGLE AIRCON (D-OPT)

main9004A-38031iF651,652..(MID,SPO,STD)..(MA,SA)201111-201508

D-OPT KIT

88688NBRACKET, COOLER

main88688-BZ150iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GEN,MA,MXC,PHL,SA)201111-201508

D-OPT KIT

main88688-BZ150iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

main88688-BZ150iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GEN,MA,MXC,PHL,SA)201111-201508

SINGLE AIRCON (D-OPT)

main88688-BZ190iF652..GCC201404-201508

main88688-BZ200iF653..LHD..LO;F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA)201507-202110

main88688-BZ210iF654..GCC201508-202201

8846687701

main88466-87701

14 parts on this diagram · 5 diagrams in section
