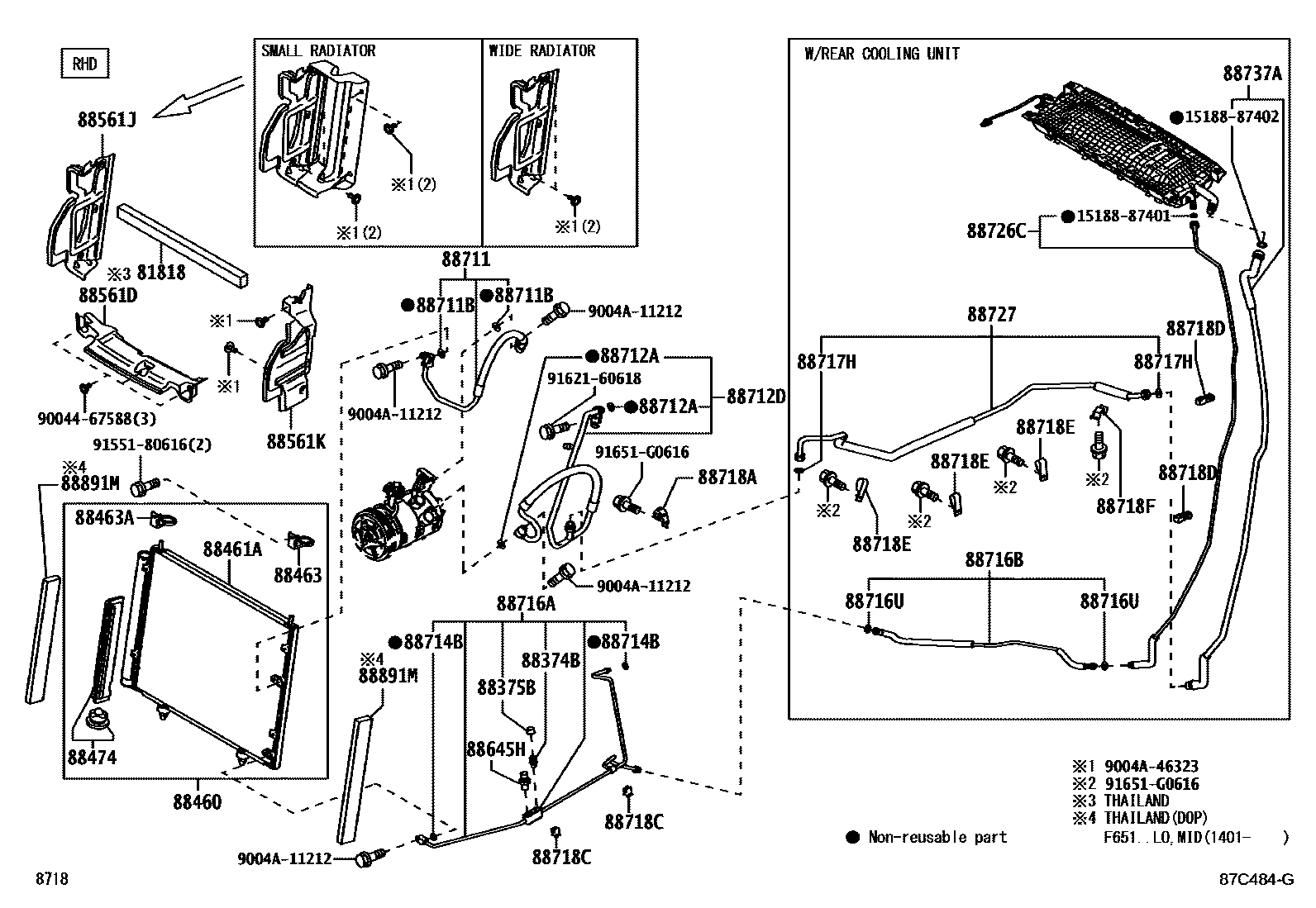

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

81818PACKING

main81818-BZ140iF65#..GEN,MXC,TH201111-201401

L=460

main81818-BZ140iF65#..GEN,MXC,TH201111-201401

D-OPT KIT,L=460

main81818-BZ230iF651,652..GEN,MXC,TH201401-201508

L=432

main81818-BZ230iF651,652..GEN,MXC,TH201401-201508

D-OPT KIT,L=432

main81818-BZ230iF652..GCC201404-201508

main81818-BZ280iF654..GCC201508-201904

88374BVALVE, SERVICE, NO.1

main88374-87601iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

main88374-87601iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

SINGLE AIRCON (D-OPT)

main88374-87601iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

D-OPT KIT

main88374-87601iF653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA)201507-202110

88375BCAP, SERVICE VALVE, NO.1

main88375-87603iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

main88375-87603iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

SINGLE AIRCON (D-OPT)

main88375-87603iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

D-OPT KIT

main88375-87603iF653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA)201507-202110

88460CONDENSER ASSY, COOLER

main88460-BZ150iF651..5F..GEN;F652..GCC,GEN,MA,MXC,PHL,SA201111-201508

D-OPT KIT

main88460-BZ150iF652..IDN201111-201507

RHD GENERAL COUNTRIES

main88460-BZ180iF651..(LO,VB)..SA201111-201508

SINGLE AIRCON (D-OPT)

main88460-BZ180iF651..IDN201111-201507

RHD GENERAL COUNTRIES

main88460-BZ240iF653..LHD..LO;F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA)201507-202110

main88460-BZ260iF654..GCC201508-202201

88461ACORE, COOLER CONDENSER

main88461-BZ050iF652..TH201111-201508

D-OPT KIT

main88461-BZ050iF652..IDN201111-201507

RHD GENERAL COUNTRIES

main88461-BZ060iF651..LO..PHL;F651..MID..GEN;F651..STD..(MA,PHL,SA)201111-201508

SINGLE AIRCON (D-OPT)

main88461-BZ060iF651..MID..IDN201111-201507

RHD GENERAL COUNTRIES

88463BRACKET, COOLER CONDENSER, NO.1

main88463-BZ220iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

D-OPT KIT

main88463-BZ220iF651..(LO,VB)..SA201111-201508

SINGLE AIRCON (D-OPT)

main88463-BZ220iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

88463ABRACKET, COOLER CONDENSER, NO.2

main88463-BZ220iF652..IDN201111-201507

RHD GENERAL COUNTRIES

main88463-BZ220iF651..5F..GEN;F652..GCC,GEN,MA,MXC,PHL,SA201111-201508

D-OPT KIT

main88463-BZ230iF651..LO..PHL;F651..MID..GEN;F651..STD..(MA,PHL,SA)201111-201508

SINGLE AIRCON (D-OPT)

main88463-BZ230iF651..IDN201111-201507

RHD GENERAL COUNTRIES

88474DRYER, COOLER

main88474-B2010iF65#..(MID,SPO)..IDN201507-202110

main88474-BZ010iF651..(LO,VB)..SA201111-201508

D-OPT KIT

main88474-BZ010iF652..TH201111-201508

SINGLE AIRCON (D-OPT)

main88474-BZ010iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

88561DGRILLE, AIR INLET NO.3

main88561-BZ220iF651..(LO,VB)..SA201111-201508

SINGLE AIRCON (D-OPT)

main88561-BZ220iF65#..IDN201111-201507

main88561-BZ220iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

D-OPT KIT

main88561-BZ370iF653..LHD..LO;F654..STD..SA;F654..MID..GEN;F653..STD..(GEN,SA)201507-201904

main88561-BZ550iF653..MID,SPO;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL)201901-202111

88561JGRILLE, AIR INLET NO.1

main88561-BZ060iF651..(LO,VB)..SA201111-201508

SINGLE AIRCON (D-OPT)

main88561-BZ060iF651..5F..IDN201111-201507

main88561-BZ060iF651..LO..PHL;F651..5F..STD..(MA,PHL,SA)201111-201508

D-OPT KIT

main88561-BZ210iF652..5F..TH;F652..MID..TH;F652..(MID,STD)..MA201111-201508

D-OPT KIT

main88561-BZ210iF651..4AT..IDN;F652..MID..IDN201111-201507

main88561-BZ260iF652..SPO..(MA,TH)201111-201508

D-OPT KIT

main88561-BZ260iF652..SPO..IDN201111-201507

main88561-BZ270iF652..GCC201404-201508

main88561-BZ380iF653..LHD..LO;F654..STD..SA;F654..MID..GEN;F653..STD..(GEN,SA)201507-201904

main88561-BZ390iF653,654..SPO201507-201904

main88561-BZ560iF653..4AT..STD..IDN201901-202111

88561KGRILLE, AIR INLET NO.2

main88561-BZ200iF651..(LO,VB)..SA201111-201508

D-OPT KIT

main88561-BZ200iF65#..(MID,STD)..IDN201111-201507

main88561-BZ200iF651..LHD..LO;F651,652..(MID,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

SINGLE AIRCON (D-OPT)

main88561-BZ230iF652..SPO..(MA,TH)201111-201508

D-OPT KIT

main88561-BZ230iF652..SPO..IDN201111-201507

main88561-BZ400iF653..4AT..IDN201507-201904

main88561-BZ410iF653,654..SPO201507-201904

main88561-BZ580iF653..5F..STD..IDN201901-202111

88645HSWITCH, PRESSURE NO.1

main88645-87602iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

main88645-87602iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GEN,MA,MXC,PHL,SA)201111-201508

SINGLE AIRCON (D-OPT)

main88645-87602iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GEN,MA,MXC,PHL,SA)201111-201508

D-OPT KIT

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-BZ380iF652..TH201111-201508

D-OPT KIT

main88711-BZ380iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

main88711-BZ380iF651,652..(MID,SPO,STD)..(MA,SA)201111-201508

SINGLE AIRCON (D-OPT)

main88711-BZ400iF651..PHL;F652..GEN,PHL201112-201508

main88711-BZ410iF651..GEN;F652..MXC201112-201508

main88711-BZ460iF652..GCC201404-201508

main88711-BZ560iF653..LHD..LO;F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA)201507-201710

sub88711-BZ561

main88711-BZ561iF65#..(MID,SPO)..IDN201901-202110

main88711-BZ561iF653..LHD..LO;F65#..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH)201711-201904

SINGLE AIR CONDITIONER(D-OPT)

main88711-BZ580iF654..GCC201508-202201

88711BRING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)

main15188-87402iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

main15188-87402iF653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA)201507-202110

88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

main15188-87403iF651..MID..IDN;F652..SPO..IDN201111-201507

RHD GENERAL COUNTRIES

main15188-87403iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

SINGLE AIRCON (D-OPT)

main15188-87403iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

D-OPT KIT

main15188-87403iF653,654..(MID,SPO,STD)..(IDN,MA,SA)201507-201904

ID=13.4 OD=18.2

main15188-87403iF65#..LHD201508-201904

SINGLE AIR CONDITIONER(D-OPT)

main15188-87403iF654..4AT..STD..TH;F654..MID..(IDN,SA,TH);F654..(SPO,STD)..(IDN,MA,SA);F653..(MID,SPO,STD)..(IDN,SA)201901

88712DHOSE, SUCTION

main88712-BZ430iF651..(LO,VB)..SA201111-201508

SINGLE AIRCON (D-OPT)

main88712-BZ440iF652..TH201111-201508

D-OPT KIT

main88712-BZ440iF65#..IDN201111-201507

RHD GENERAL COUNTRIES

main88712-BZ520iF651..PHL;F652..GCC,GEN,PHL201112-201508

main88712-BZ530iF651..GEN;F652..MXC201112-201508

main88712-BZ580iF65#..STD..SA201508-201701

SINGLE AIR CONDITIONER(D-OPT)

sub88712-BZ581

main88712-BZ581iF65#..STD..SA201904-202201

SINGLE(D-OP)

main88712-BZ581iF65#..STD..SA201702-201904

SINGLE AIR CONDITIONER(D-OPT)

main88712-BZ590iF654..TH201507-201701

sub88712-BZ591

main88712-BZ591iF65#..(MID,SPO)..IDN201702-202110

main88712-BZ600iF653..GEN;F654..4AT..MXC;F654..5F..(GEN,MXC)201508-201904

main88712-BZ610iF653..PHL;F654..(MID,SPO)..(GEN,PHL)201508-201904

main88712-BZ670iF654..GCC201508-202201

88714BRING, O(FOR COOLER REFRIGERANT LIQUID HOSE)

main15188-87401iF65#..(MID,SPO)..IDN201507-202110

main15188-87401iF651..MID..IDN;F652..SPO..IDN201111-201507

RHD GENERAL COUNTRIES

main15188-87401iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

SINGLE AIRCON (D-OPT)

main15188-87401iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

D-OPT KIT

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-BZ550iF651..(LO,VB)..SA201111-201508

SINGLE AIRCON (D-OPT)

main88716-BZ810iF651..MID..IDN;F652..SPO..IDN201111-201507

RHD GENERAL COUNTRIES

main88716-BZ810iF651,652..MA;F652..MID..SA201111-201508

D-OPT KIT

main88716-BZ820iF651..PHL;F652..GCC,GEN,PHL201112-201508

main88716-BZ830iF651..GEN;F652..MXC201112-201508

main88716-BZB20iF65#..STD..SA201508-201904

SINGLE AIR CONDITIONER(D-OPT)

main88716-BZB21iF653..(LO,VB)..SA201904-202012

SINGLE(D-OP)

main88716-BZB22iF653..(LO,VB)..SA202012-202201

SINGLE(D-OP)

main88716-BZB30iF654..TH201507-201904

main88716-BZB31iF653..IDN;F654..4AT..STD..TH;F654..MID..(IDN,SA,TH);F654..(SPO,STD)..(IDN,MA)201901-202012

main88716-BZB32iF654..MA,TH;F654..MID..SA;F653..STD..IDN202012-202110

main88716-BZB40iF653..GEN;F654..4AT..MXC;F654..5F..(GEN,MXC)201508-201904

main88716-BZB41iF653..GEN;F654..4AT..MXC;F654..5F..(GEN,MXC)201904-202012

main88716-BZB42iF653..GEN;F654..4AT..MXC;F654..5F..(GEN,MXC)202012

main88716-BZB50iF65#..GCC,PHL;F654..MID..GEN201508-201904

main88716-BZB51iF65#..GCC,PHL;F654..MID..GEN201904-202012

main88716-BZB52iF65#..GCC,PHL;F654..MID..GEN202012

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-BZ730iF651..MA,PHL;F652..MID..SA;F652..GCC,GEN,MA,PHL201111-201508

D-OPT KIT

main88716-BZ730iF65#..IDN201111-202110

main88716-BZD50iF654..TH201508-201512

88716URING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

main15188-87401iF65#..IDN201111-202110

main15188-87401iF651..MA,PHL;F652..MID..SA;F652..GCC,GEN,MA,PHL201111-201508

D-OPT KIT

88717HRING, O(FOR COOLER REFRIGERANT SUCTION PIPE)

main15188-87402iF65#..(MID,SPO)..IDN201111-202110

main15188-87402iF651..MA,PHL;F652..MID..SA;F652..GCC,GEN,MA,PHL201111-201508

D-OPT KIT

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-BZ240iF651..LHD..LO;F651,652..(MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA)201111-201508

D-OPT KIT

main88718-BZ240iF651..(LO,VB)..SA201111-201508

SINGLE AIRCON (D-OPT)

main88718-BZ240iF65#..IDN201111-201507

main88718-BZ620iF653,654..(MID,SPO,STD)..(IDN,MA,SA)201507-202110

88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

main88718-BZ280iF651..(LO,VB)..SA201111-201508

D-OPT KIT

main88718-BZ280iF65#..IDN201111-202110

main88718-BZ280iF651..LO..PHL;F651..STD..(MA,PHL,SA);F652..GCC,GEN,MA,PHL,SA201111-201508

SINGLE AIRCON (D-OPT)

88718DCLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)

main88718-BZ720iF65#..IDN201111-202110

88718ECLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)

main88718-BZ030iF65#..IDN201111-202110

main88718-BZ030iF651..MA,PHL;F652..MID..SA;F652..GCC,GEN,MA,PHL201111-201508

D-OPT KIT

88718FCLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)

main88718-BZ040iF654..4AT..STD..TH;F653..(LO,STD)..(IDN,PHL);F654..(SPO,STD)..(GCC,MA,PHL);F654..MID..(GCC,GEN,PHL,SA,TH)201111-202110

main88718-BZ040iF651..MA,PHL;F652..MID..SA;F652..GCC,GEN,MA,PHL201111-201508

D-OPT KIT

88726CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-BZ750iF651..MA,PHL;F652..MID..SA;F652..GCC,GEN,MA,PHL,TH201111-202110

88727TUBE, SUCTION, NO.2

main88717-BZ150iF651..PHL;F652..GCC,GEN,PHL201112-201508

main88717-BZ280iF65#..IDN201111-201507

main88717-BZ280iF651,652..MA;F652..MID..SA201111-201508

D-OPT KIT

main88717-BZ400iF654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL201507-201602

TYPE A

sub88717-BZ401

main88717-BZ401iF654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH201602-202110

TYPE B

main88717-BZ420iF654..TH201508-201512

88737ATUBE, SUCTION, A(FOR COOL BOX)

main88717-BZ300iF654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL,TH201111-202110

88891MPACKING

main81818-BZ150iF651..IDN201112-201508

main81818-BZ150iF651..LO..PHL;F651..STD..(MA,PHL,SA)201401-201508

SINGLE AIRCON (D-OPT)

1518887401GASKET, OIL PUMP

main15188-87401

1518887402GASKET, OIL PUMP

main15188-87402

9004467588

main90044-67588

9004A11212

main9004A-11212

9004A46323

main9004A-46323

9155180616

main91551-80616

9162160618

main91621-60618

91651G0616

main91651-G0616

38 parts on this diagram · 6 diagrams in section
