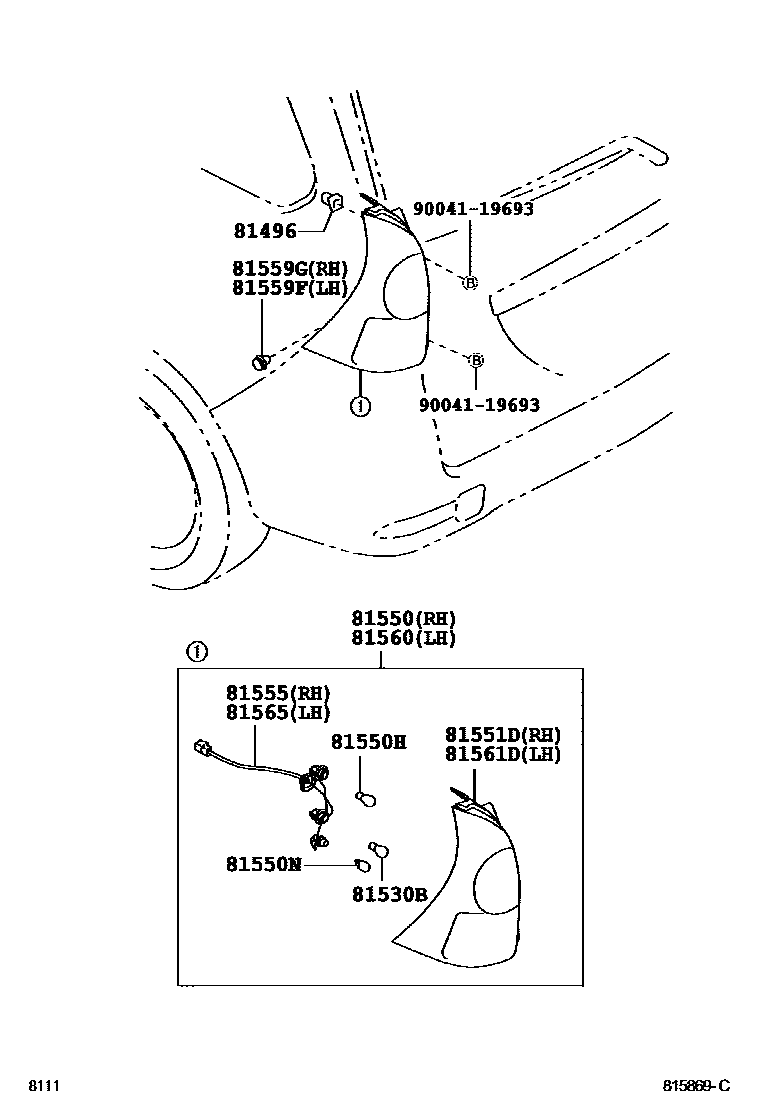

REAR COMBINATION LAMP

0001 1 0002 1 0004 1

81496GUIDE, REAR COMBINATION LAMP

main81496-B4010iF65#..IDN201111-201510

main81496-BZ010iF65#..(MID,SPO)..IDN201511-202110

81530BBULB, REAR TURN SIGNAL LAMP

main9004A-81005iF653..LO..PHL;F654..STD..SA;F654..MID..GEN;F653..5F..(GEN,SA)201507-201904

12V 21W

main9004A-81005iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main9004A-81050iF653..STD..PHL;F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(GCC,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL)201901-202111

12V 21W

81550LAMP ASSY, REAR COMBINATION, RH

main81550-BZ190iF65#..IDN201111-201508

main81550-BZ200iF651,652..GCC,GEN201112-201508

main81550-BZ220iF653..LO..PHL;F654..STD..SA;F654..MID..GEN;F653..5F..(GEN,SA)201507-201904

main81550-BZ310iF654..SPO..PHL201507-201904

main81550-BZ350iF653..4AT..STD..IDN201901-202111

main81550-BZ360iF654..SPO..(MA,PHL)201901-202201

81550HBULB, TAIL & STOP LAMP

main90049-51161iF65#..IDN201111-201508

main9004A-81025iF653..4AT..STD..IDN201901-202111

12V 21/5W

main9004A-81027iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201904

12V 21W

81550NBULB, BACK UP LAMP

main9004A-81023iF653..STD..PHL;F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(GCC,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL)201901-202111

12V 16W

main9004A-81026iF653..LO..PHL;F654..STD..SA;F654..MID..GEN;F653..5F..(GEN,SA)201507-201904

12V 16W

main90981-11055iF651,652201111-201508

sub90981-11059

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-BZ090iF65#..IDN201111-201508

main81551-BZ140iF651,652..GCC,GEN201112-201508

main81551-BZ240iF653..LO..PHL;F654..STD..SA;F654..MID..GEN;F653..5F..(GEN,SA)201507-201904

main81551-BZ250iF654..SPO..PHL201507-201904

main81551-BZ350iF653..4AT..STD..IDN201901-202111

main81551-BZ360iF65#..SPO..IDN201901-202201

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-BZ060iF65#..IDN201111-201508

main81555-BZ100iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main81555-BZ190iF653..5F..STD..IDN;F65#..(MID,SPO)..IDN201901-202111

81559FCLIP, RR COMBINATION LAMP, LH

main81559-B2020iF65#..(MID,SPO)..IDN201111-202110

81559GCLIP, RR COMBINATION LAMP, RH

main81559-B2020iF65#..IDN201111-202110

81560LAMP ASSY, REAR COMBINATION, LH

main81560-BZ190iF651,652..MA,MXC,PHL,SA,TH201111-201508

main81560-BZ200iF651,652..GCC,GEN201112-201508

main81560-BZ220iF653..LO..PHL;F654..STD..SA;F654..MID..GEN;F653..5F..(GEN,SA)201507-201904

main81560-BZ310iF654..SPO..PHL201507-201904

main81560-BZ340iF653..4AT..STD..IDN201901-202111

main81560-BZ350iF654..SPO..(MA,PHL)201901-202201

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-BZ050iF651,652..GCC,GEN201112-201508

main81561-BZ090iF65#..IDN201111-201508

main81561-BZ240iF653..5F..STD..IDN201507-201904

main81561-BZ250iF653,654..SPO..(IDN,TH)201507-201904

main81561-BZ350iF653..STD..PHL;F653..MID..GEN;F654..LHD..5F..STD;F654..4AT..STD..(GCC,MA,TH);F654..MID..(GCC,MXC,PHL,SA,TH)201901-202111

main81561-BZ360iF65#..SPO..IDN201901-202201

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-BZ010iF65#..IDN201111-201508

main81565-BZ050iF653..4AT..IDN201507-201904

main81565-BZ070iF653..5F..STD..IDN;F65#..(MID,SPO)..IDN201901-202111

9004119693

main90041-19693

13 parts on this diagram · 3 diagrams in section
