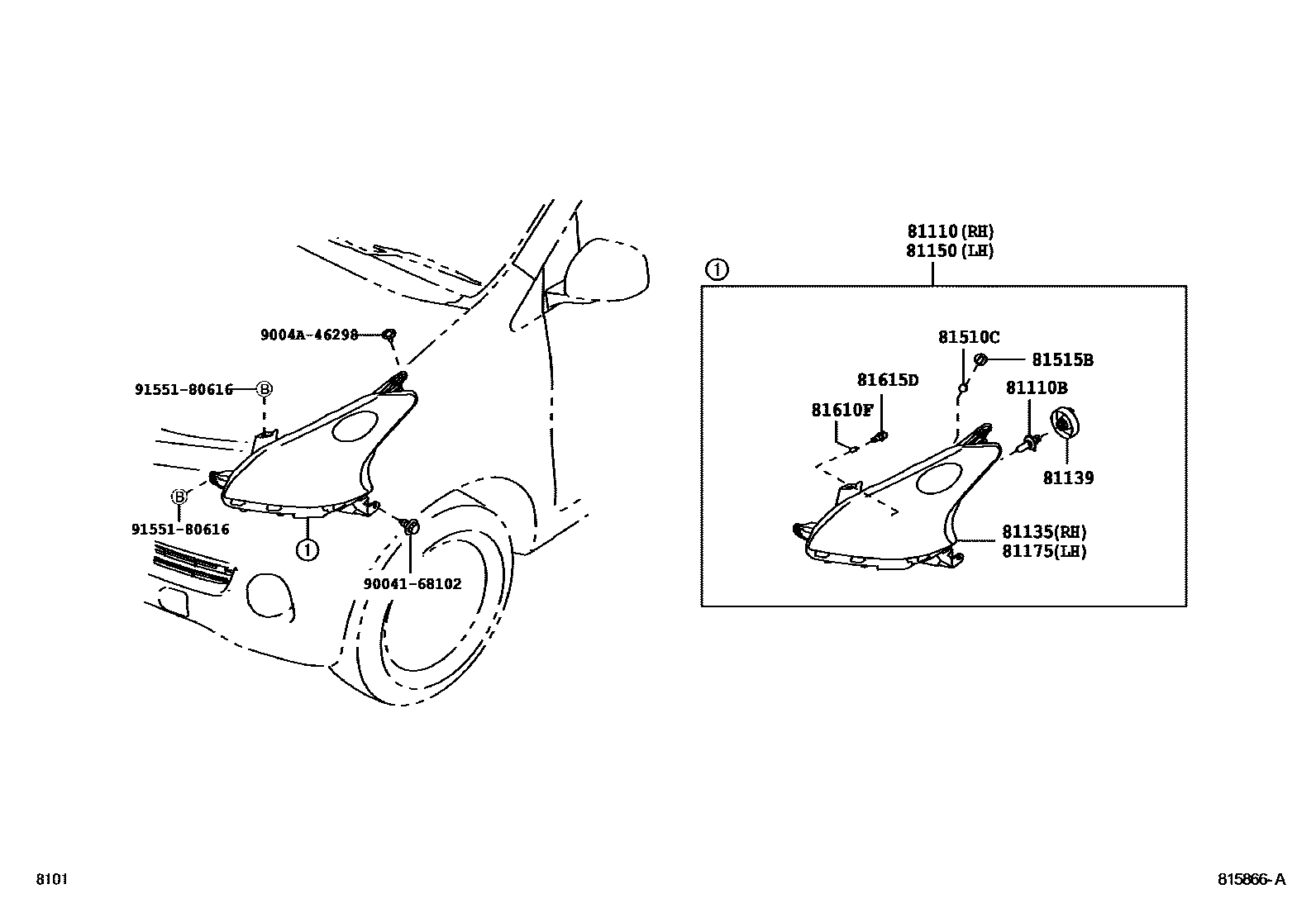

HEADLAMP

0001 1 0002 1 0007 1 0008 1

81110HEADLAMP ASSY, RH

main81110-BZ180iF65#..IDN201111-201508

main81110-BZ190iF651,652..LHD201112-201508

main81110-BZ390iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201507-202201

main81110-BZ400iF65#..LHD201508-201904

main81110-BZ410iF654..SPO..(IDN,TH)201507-201901

main81110-BZ430iF653..4AT..STD..IDN201901-202201

main81110-BZ500iF653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,MXC,PHL)201904

81110BBULB(FOR HEADLAMP, NO.1)

main9004A-81029iF654..SPO..(IDN,TH)201507-201901

12V 55W,(LOW BEAM)

main9004A-81032iF653..LO..PHL;F653..STD..GEN;F65#..(LO,STD,VB)..SA201904-202201

MEXICO VAN

main9004A-81032iF65#201111-201904

main9004A-81032iF653..LO..PHL;F653..STD..GEN;F65#..(LO,STD,VB)..SA201904-202201

VIETNAM

81135UNIT ASSY, HEADLAMP, RH

main81130-BZ140iF65#..IDN201111-201508

main81130-BZ150iF651,652..LHD201112-201508

main81130-BZ260iF653..IDN,MA;F654..MID..MA;F654..5F..(MID,STD)..(IDN,TH)201507-201904

main81130-BZ270iF653..LHD..LO;F653..STD..GEN;F654..MID..GEN201508-201904

main81130-BZ280iF654..SPO..(IDN,TH)201507-201901

main81130-BZ380iF653..4AT..STD..IDN201901-202201

main81130-BZ390iF653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,MXC,PHL)201904

81139COVER, HEADLAMP SOCKET

main81139-B2010iF654..5F..MXC201904-202201

MEXICO VAN

main81139-B2010iF65#..IDN201111-201904

main81139-B2010iF653..LO..PHL;F653..STD..GEN;F65#..(LO,STD,VB)..SA201904-202201

VIETNAM

main81139-BZ040iF654..SPO..(IDN,TH)201507-201901

81150HEADLAMP ASSY, LH

main81150-BZ180iF651,652..MA,SA,TH201111-201508

main81150-BZ190iF651,652..LHD201112-201508

main81150-BZ390iF653..IDN,MA;F654..MID..MA;F654..5F..(MID,STD)..(IDN,TH)201507-201904

main81150-BZ400iF653..LHD..LO;F653..STD..GEN;F654..MID..GEN201508-201904

main81150-BZ410iF654..SPO..(IDN,TH)201507-201901

main81150-BZ430iF653..4AT..STD..IDN201901-202201

main81150-BZ670iF653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,MXC,PHL)201904

81175UNIT ASSY, HEADLAMP, LH

main81170-BZ140iF65#..IDN201111-201508

main81170-BZ150iF651,652..LHD201112-201508

main81170-BZ260iF65#..(LO,STD,VB)..SA201507-201904

main81170-BZ270iF65#..LHD201508-201904

main81170-BZ280iF654..SPO..(IDN,TH)201507-201901

main81170-BZ380iF653..4AT..STD..IDN201901-202201

main81170-BZ390iF653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,MXC,PHL)201904

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main9004A-81031iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-202110

12V 21W AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81945-B1010iF65#201111-202301

81610FBULB(FOR CLEARANCE LAMP)

main9004A-81030iF65#..(MID,SPO)..IDN201111-202110

12V 5W T10

81615DSOCKET, CLEARANCE LAMP

main81128-B2090iF653..5F..STD..IDN;F65#..(MID,SPO)..IDN201901-202111

main9004C-82001iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-201904

9004168102

main90041-68102

9004A46298

main9004A-46298

9155180616

main91551-80616

13 parts on this diagram · 4 diagrams in section
