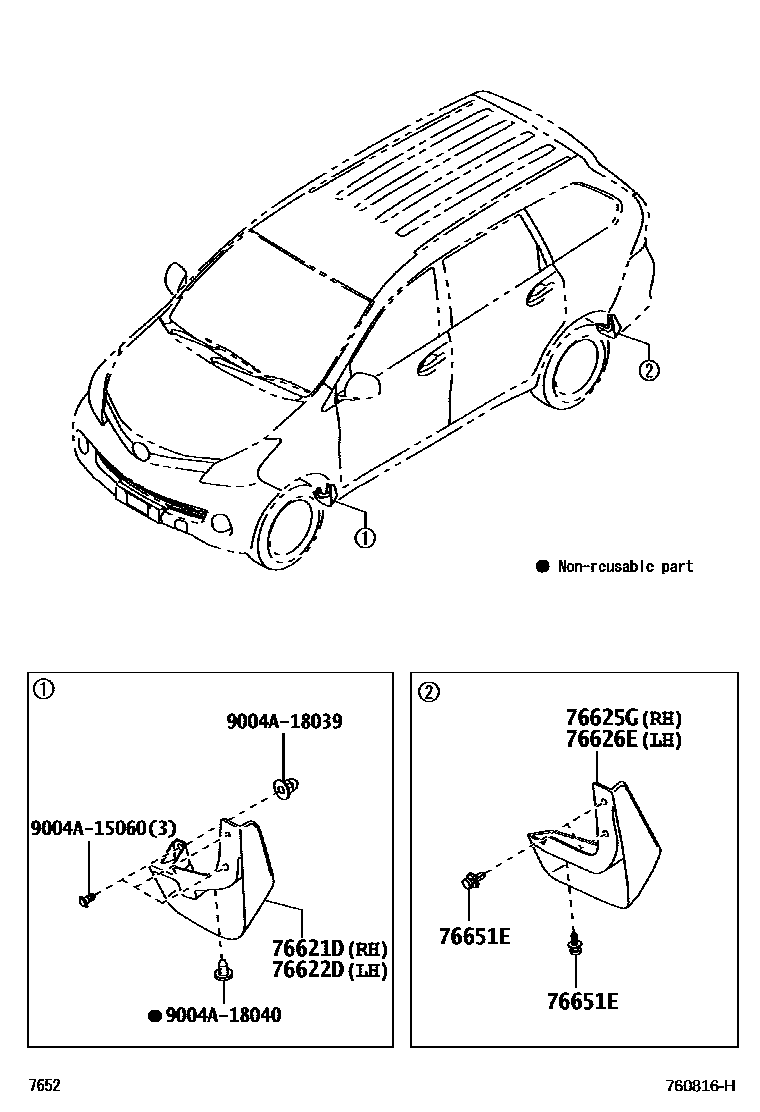

SPOILER & SIDE MUDGUARD

0001 1MUDGUARD 0004 1SPOILER 0013 1SPOILER

76621DMUDGUARD, FRONT FENDER, RH

main76621-BZ090iF651..LO..GEN;F652..MID..GCC;F651,652..(MID,STD)..(GEN,MA,PHL,SA,TH)201111-202111

76622DMUDGUARD, FRONT FENDER, LH

main76622-BZ070iF65#..(MID,STD)..IDN201111-202111

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-BZ050iF65#..(MID,STD)..IDN201111-202111

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-BZ050iF65#..GEN,SA;F653..STD..PHL;F654..MID..GCC201111-202111

76651ECLIP (FOR REAR MUDGUARD)

main90044-68320iF651..LO..GEN;F65#..(MID,STD)..(GEN,IDN,MA,PHL,SA,TH)¥170201111-201302

sub90044-68378¥110

main9004A-46323iF65#..(MID,STD)..IDN¥170201303-202111

9004A15060

main9004A-15060

9004A18039

main9004A-18039

9004A18040

main9004A-18040

8 parts on this diagram · 3 diagrams in section
