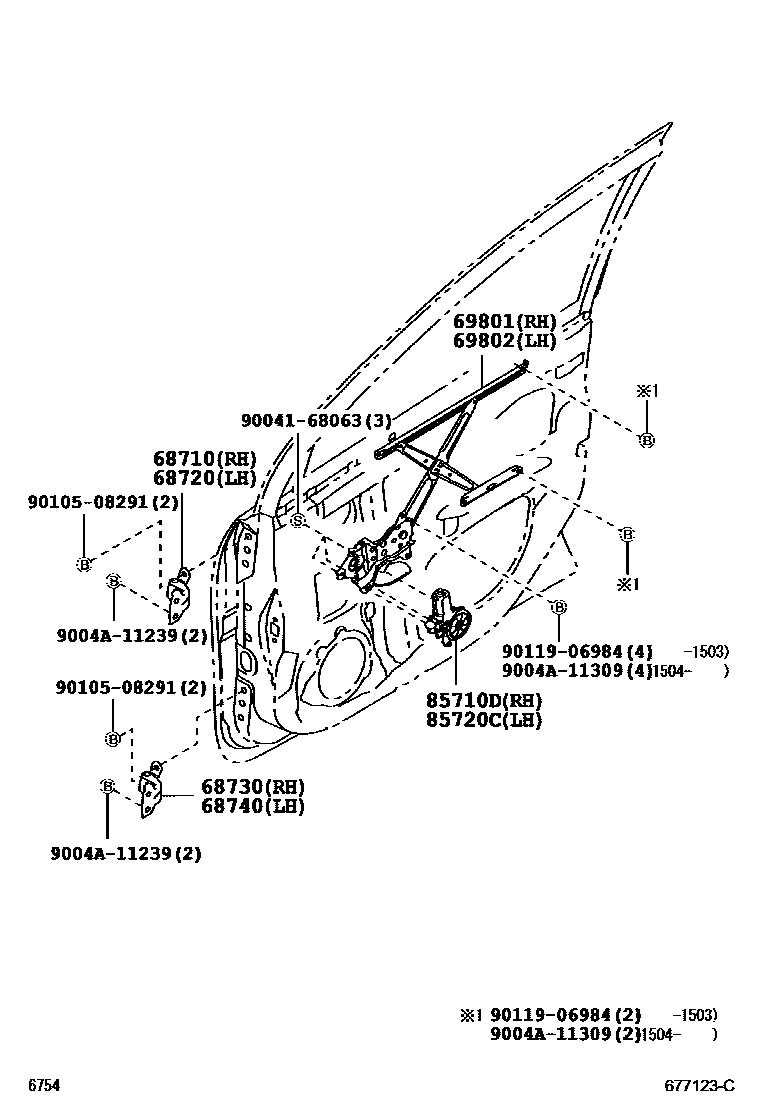

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68750-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68760-BZ010iF65#..IDN201111-202110

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68750-BZ010iF651,652201111-202110

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68760-BZ010iF651,652201111-202110

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-BZ110iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-BZ100iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-202110

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-BZ040iF65#201111-201205

BEARING: COPPER

sub85710-BZ041

main85710-BZ041iF65#..IDN201205-201508

BEARING: IRON,COPPER

main85710-BZ042iF65#..LHD201508-201904

main85710-BZ170iF65#..(MID,SPO)..IDN201507-202110

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-BZ040iF65#201111-201205

BEARING: COPPER

sub85720-BZ041

main85720-BZ041iF65#..IDN201205-201508

BEARING: IRON,COPPER

main85720-BZ042iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201507-202110

main85720-BZ170iF65#..LHD201508-201904

9004168063

main90041-68063

9004A11239

main9004A-11239

9004A11309

main9004A-11309

9010508291

main90105-08291

9011906984

main90119-06984

13 parts on this diagram · 1 diagram in section
