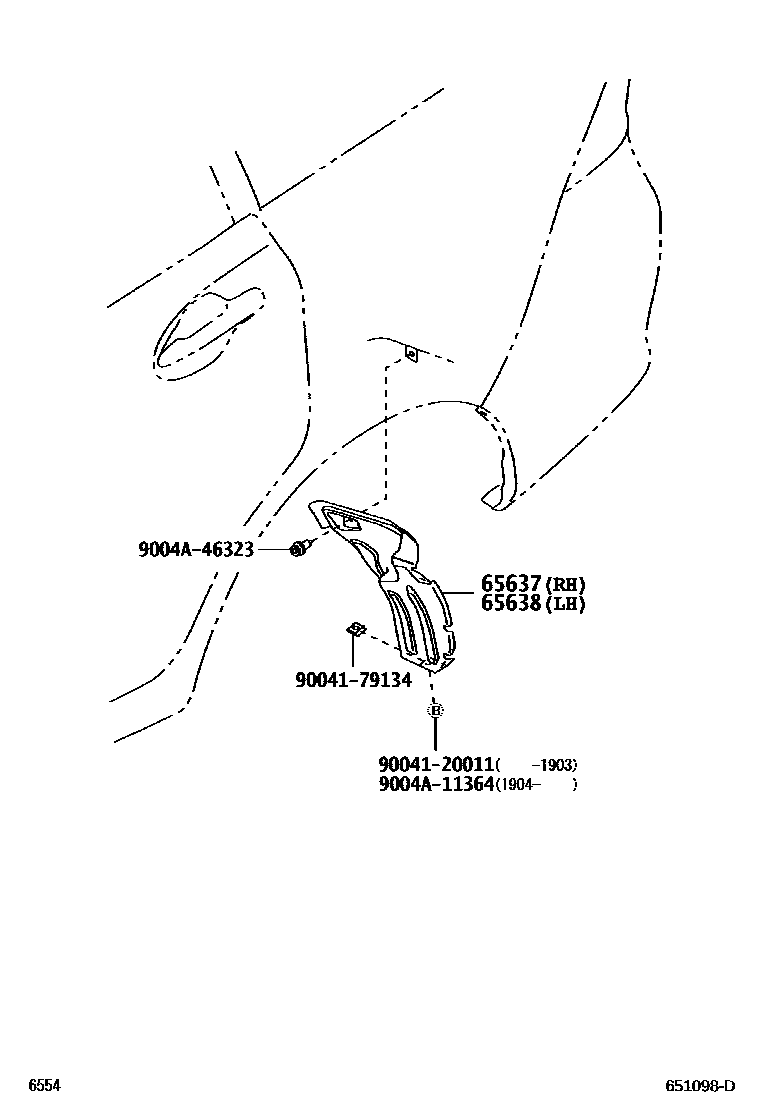

REAR BODY SIDE PANEL

65637LINER, REAR WHEEL HOUSE, RH

main65637-BZ050iF652..SPO201111-201204

sub65637-BZ051

main65637-BZ051iF652..SPO..(MA,TH)201205-202201

main65637-BZ160iF65#..LO,MID,STD,VB201111-201204

sub65637-BZ161

main65637-BZ161iF653..MID..GEN;F654..4AT..(MID,STD)..TH;F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(MID,STD)..(GCC,GEN,MXC,PHL,SA)201205-202110

65638LINER, REAR WHEEL HOUSE, LH

main65638-BZ050iF652..SPO201111-201204

sub65638-BZ051

main65638-BZ051iF653,654..SPO..(IDN,TH)201205-202201

main65638-BZ160iF65#..LO,MID,STD,VB201111-201204

sub65638-BZ161

main65638-BZ161iF653..MID..GEN;F654..4AT..(MID,STD)..TH;F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(MID,STD)..(GCC,GEN,MXC,PHL,SA)201205-202110

9004120011

main90041-20011

9004179134

main90041-79134

9004A11364

main9004A-11364

9004A46323

main9004A-46323

6 parts on this diagram · 1 diagram in section
