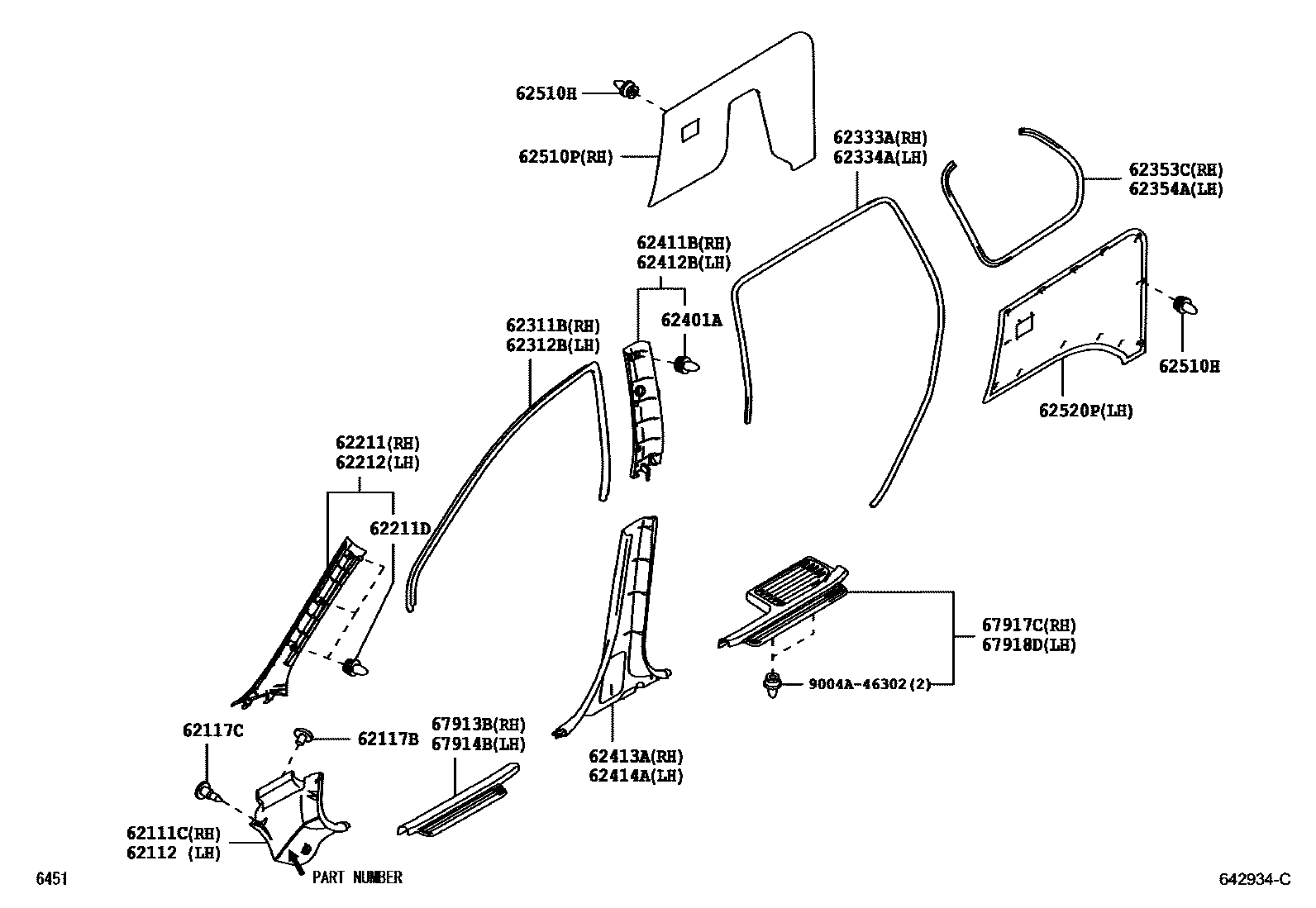

INSIDE TRIM BOARD

0001 1SEMI TRIM 0009 1FULL TRIM

62111CBOARD, COWL SIDE TRIM, RH

main62111-BZ160-B0iF65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201111-201801

DK.GRAY,TRIM1#

main62111-BZ160-B0iF654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC)201508-201801

DK.GRAY,TRIM4#

main62111-BZ160-C0iF65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201801-201904

BLACK,TRIM1#

main62111-BZ160-C0iF654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC)201801-201904

BLACK,TRIM4#

main62111-BZ160-E0iF65#..(MID,STD)..IDN201111-201508

-,TRIM4#

main62111-BZ160-E1iF654..GCC;F65#..4AT..MID..(GEN,PHL)201904

LINEN BEIGE,TRIM4#

main62111-BZ220-B0iF653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH)201507-201801

DK.GRAY,TRIM4#

main62111-BZ220-B0iF653,654..(MID,STD)..IDN201507-201801

DK.GRAY,TRIM1#

main62111-BZ220-C0iF653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH)201801-202110

BLACK,TRIM1#

main62111-BZ220-C0iF65#..(MID,STD)..IDN201801-201901

BLACK,TRIM4#

main62111-BZ220-E0iF653..STD..IDN201901-202110

LINEN BEIGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-BZ160-B0iF653,654..(MID,STD)..IDN201507-201801

DK.GRAY,TRIM4#,W/ PART NUMBER

main62112-BZ160-B0iF652..SPO..IDN201111-201508

DK.GRAY,TRIM1#

main62112-BZ160-B0iF653,654..(MID,STD)..IDN201507-201801

DK.GRAY,TRIM1#,W/ PART NUMBER

main62112-BZ160-C0iF654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC)201801-201904

BLACK,TRIM4#,W/ PART NUMBER

main62112-BZ160-C0iF65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201801-201904

BLACK,TRIM1#,W/ PART NUMBER

main62112-BZ160-E0iF65#..(MID,STD)..IDN201111-201508

-,TRIM4#

main62112-BZ160-E1iF654..GCC;F65#..4AT..MID..(GEN,PHL)201904

LINEN BEIGE,TRIM4#,W/ PART NUMBER

main62112-BZ220-B0iF654..4AT..MXC;F654..5F..(GEN,MXC);F653..LHD..(LO,STD)201507-201801

DK.GRAY,TRIM4#,W/PART NUMBER

main62112-BZ220-B0iF653,654..(MID,STD)..IDN201507-201801

DK.GRAY,TRIM1#,W/PART NUMBER

main62112-BZ220-C0iF65#..(MID,STD)..IDN201801-201901

BLACK,TRIM4#,W/PART NUMBER

main62112-BZ220-C0iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA);F653..(LO,STD,VB)..(IDN,SA)201801-202110

BLACK,TRIM1#,W/PART NUMBER

main62112-BZ220-E0iF653..STD..IDN201901-202110

LINEN BEIGE,TRIM4#,W/PART NUMBER

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main9004A-46131-B0iF653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)201507-201804

DK.GRAY,TRIM4#

main9004A-46131-B0iF652..SPO..IDN201111-201804

DK.GRAY,TRIM1#

main9004A-46131-C1iF65#..SPO..IDN201804-202110

BLACK,TRIM1#

main9004A-46131-C1iF65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201804-201904

BLACK,TRIM4#

main9004A-46131-E1iF65#..(MID,STD)..IDN201111-201508

-,TRIM4#

main9004A-46131-E2iF65#..MID..IDN201901-202110

LINEN BEIGE,TRIM4#

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main9004A-46132-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201111-201804

DK.GRAY,TRIM1#

main9004A-46132-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201804

DK.GRAY,TRIM4#

main9004A-46132-C0iF653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)201804-201904

BLACK,TRIM4#

main9004A-46132-C0iF653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)201804-202110

BLACK,TRIM1#

main9004A-46132-E1iF651..MID..GEN;F652..GCC,GEN,PHL201111-201508

-,TRIM4#

main9004A-46132-E2iF653..STD..IDN;F65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201901-202110

LINEN BEIGE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62210-BZ040-B0iF65#..SPO..IDN201112-202110

LT.GRAY,TRIM4#

main62210-BZ040-B0iF652..SPO..IDN201111-202201

LT.GRAY,TRIM1#

main62211-BZ060-B0iF653..SPO;F654..SPO..PHL;F654..(MID,SPO)..(MXC,SA,TH);F653,654..(LO,STD,VB)..(GEN,MA,PHL,SA,TH)201111-202201

LT.GRAY,TRIM4#

main62211-BZ060-B0iF653..SPO;F654..SPO..PHL;F654..(MID,SPO)..(MXC,SA,TH);F653,654..(LO,STD,VB)..(GEN,MA,PHL,SA,TH)201111-201904

LT.GRAY,TRIM1#

main62211-BZ060-B0iF653..STD..IDN;F654..MID..PHL201901

LT.GRAY,TRIM1#,4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main9004A-46275iF65#..IDN201111-202110

62212GARNISH, FRONT PILLAR, LH

main62212-BZ160-B0iF65#..(MID,STD)..IDN201111-202201

LT.GRAY,TRIM4#

main62212-BZ160-B0iF654..(SPO,STD)..(GEN,PHL);F654..(MID,STD)..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA)201111-201904

LT.GRAY,TRIM1#

main62212-BZ160-B0iF653..STD..IDN;F654..MID..PHL201901

LT.GRAY,TRIM1#,4#

main62220-BZ030-B0iF65#..MID..IDN201111-202201

LT.GRAY,TRIM1#

main62220-BZ030-B0iF652..MID..(GCC,GEN)201112-202110

LT.GRAY,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-BZ060iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-202110

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-BZ060iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

62333ATRIM, REAR DOOR OPENING, RH

main62333-BZ050iF654..5F..MXC201508-201904

MEXICO VAN

main62333-BZ050iF651..VB;F651..5F..GEN;F651..LO..PHL201111-201508

main62333-BZ060iF653..STD..IDN201111-202111

62334ATRIM, REAR DOOR OPENING, LH

main62333-BZ050iF653..VB;F653..LHD..LO;F65#..STD..GEN201508-201904

MEXICO VAN

main62333-BZ050iF651..VB;F651..5F..GEN;F651..LO..PHL201111-201508

main62333-BZ060iF653..STD..IDN201111-202111

62353CTRIM, QUARTER WINDOW INSIDE, RH

main62353-BZ030iF651..VB;F651..5F..GEN;F651..LO..PHL201111-201508

main62353-BZ030iF653..VB;F653..LHD..LO;F65#..STD..GEN201508-201904

MEXICO VAN

62354ATRIM, QUARTER WINDOW INSIDE, LH

main62353-BZ030iF654..5F..MXC201508-201904

MEXICO VAN

main62353-BZ030iF653..IDN201111-201508

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main9004A-46275iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-BZ160-B0iF654..GCC;F65#..MID..GEN201111-202110

LT.GRAY,TRIM1#

main62411-BZ160-B0iF654..GCC;F65#..MID..GEN201901

LT.GRAY,TRIM1#,4#

main62411-BZ160-B0iF654..4AT..STD..TH;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,MA,PHL,SA)201111-202110

LT.GRAY,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-BZ160-B0iF653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)201111-202110

LT.GRAY,TRIM4#

main62412-BZ160-B0iF65#..(MID,STD)..IDN201111-202110

LT.GRAY,TRIM1#

main62412-BZ160-B0iF654..GCC;F65#..MID..GEN201901

LT.GRAY,TRIM1#,4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-BZ130-B0iF652..SPO,STD;F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201212

DK.GRAY,TRIM1#

sub62413-BZ131

main62413-BZ130-E0iF651..IDN;F651..MID..GEN;F652..MID..(GEN,IDN,PHL)201111-201212

-,TRIM4#

sub62413-BZ131

main62413-BZ131-B0iF652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201301-202110

DK.GRAY,TRIM1#

main62413-BZ131-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

DK.GRAY,TRIM4#

main62413-BZ131-E0iF651..MID..GEN;F652..GCC,GEN,PHL201301-201508

BEIGE,TRIM4#

main62413-BZ131-E1iF65#..MID..IDN201901-202110

LINEN BEIGE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-BZ130-B0iF652..SPO,STD;F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201212

DK.GRAY,TRIM1#

sub62414-BZ131

main62414-BZ130-E0iF651..IDN;F651..MID..GEN;F652..MID..(GEN,IDN,PHL)201111-201212

-,TRIM4#

sub62414-BZ131

main62414-BZ131-B0iF652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201301-202110

DK.GRAY,TRIM1#

main62414-BZ131-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

DK.GRAY,TRIM4#

main62414-BZ131-E0iF65#..(MID,STD)..IDN201301-201508

BEIGE,TRIM4#

main62414-BZ131-E1iF65#..MID..IDN201901-202110

LINEN BEIGE,TRIM4#

62510HCLIP(FOR QUARTER TRIM FRONT PANEL)

main67771-BZ060iF651..VB;F651..5F..GEN;F651..LO..PHL201111-201307

main9004A-46275iF651..VB;F651..5F..GEN;F651..LO..PHL201308-201508

main9004A-46275iF653..VB;F653..LHD..LO;F65#..STD..GEN201508-201904

MEXICO VAN

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-BZ080-B0iF654..5F..MXC201111-202201

DK.GRAY,TRIM1#

main62510-BZ080-B0iF653..VB201508-202201

MEXICO VAN,DK.GRAY,TRIM1#

main62510-BZ090-B0iF651..LO..PHL201112-202201

DK.GRAY,TRIM1#

main62510-BZ100-B0iF65#..5F..GEN201112-201904

DK.GRAY,TRIM1#

main62510-BZ100-E1iF653..5F..IDN202111

LINEN BEIGE,TRIM4#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-BZ060-B0iF651..VB201111-202201

DK.GRAY,TRIM1#

main62520-BZ060-B0iF653..VB201508-202201

MEXICO VAN,DK.GRAY,TRIM1#

main62520-BZ070-B0iF653..LO..PHL201112-202201

DK.GRAY,TRIM1#

main62520-BZ080-B0iF65#..5F..GEN201112-201904

DK.GRAY,TRIM1#

main62520-BZ080-E1iF653..5F..IDN202111

LINEN BEIGE,TRIM4#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-BZ110-B0iF652..SPO..IDN201111-202110

DK.GRAY,TRIM1#

main67913-BZ110-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

DK.GRAY,TRIM4#

main67913-BZ110-E0iF651..MID..GEN;F652..GCC,GEN,PHL201111-201508

-,TRIM4#

main67913-BZ110-E1iF653..STD..IDN;F65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201901-202110

LINEN BEIGE,TRIM4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-BZ110-B0iF653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)201507-201904

DK.GRAY,TRIM4#

main67914-BZ110-B0iF653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)201111-202110

DK.GRAY,TRIM1#

main67914-BZ110-E0iF65#..(MID,STD)..IDN201111-201508

-,TRIM4#

main67914-BZ110-E1iF653..STD..IDN;F65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201901-202110

LINEN BEIGE,TRIM4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-BZ110-B0iF652..SPO..IDN201111-201508

DK.GRAY,TRIM1#

main67917-BZ110-E0iF65#..(MID,STD)..IDN201111-201508

-,TRIM4#

main67917-BZ120-B0iF654..5F..MXC201508-202201

MEXICO VAN,DK.GRAY,TRIM1#

main67917-BZ120-B0iF653..VB201111-202201

DK.GRAY,TRIM1#

main67917-BZ150-B0iF653..SPO;F653..STD..PHL;F653..(LO,STD)..(MA,SA);F654..MID..(MA,MXC,SA,TH);F654..(SPO,STD)..(IDN,MA,PHL,SA,TH)201312-202111

DK.GRAY,TRIM1#

main67917-BZ150-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

DK.GRAY,TRIM4#

main67917-BZ150-E0iF65#..MID..IDN201901-202111

LINEN BEIGE,TRIM4#

main67917-BZ180-B0iF653..LHD..LO;F653..STD..GEN201508-201904

DK.GRAY,TRIM1#

main67917-BZ180-E0iF653..5F..IDN202111-202201

LINEN BEIGE,TRIM4#

67918DPLATE, REAR DOOR SCUFF, LH

main67918-BZ110-B0iF652..SPO..IDN201111-201508

DK.GRAY,TRIM1#

main67918-BZ110-E0iF65#..(MID,STD)..IDN201111-201508

-,TRIM4#

main67918-BZ120-B0iF651..VB;F651..5F..GEN;F651..LO..PHL201111-202201

DK.GRAY,TRIM1#

main67918-BZ120-B0iF653..VB201508-202201

MEXICO VAN,DK.GRAY,TRIM1#

main67918-BZ150-B0iF653..SPO;F653..STD..PHL;F653..(LO,STD)..(MA,SA);F654..MID..(MA,MXC,SA,TH);F654..(SPO,STD)..(IDN,MA,PHL,SA,TH)201312-202111

DK.GRAY,TRIM1#

main67918-BZ150-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

DK.GRAY,TRIM4#

main67918-BZ150-E0iF65#..MID..IDN201901-202111

LINEN BEIGE,TRIM4#

main67918-BZ180-B0iF653..LHD..LO;F65#..STD..GEN201508-201904

DK.GRAY,TRIM1#

main67918-BZ180-E0iF653..5F..IDN202111-202201

LINEN BEIGE,TRIM4#

9004A46302

main9004A-46302

26 parts on this diagram · 2 diagrams in section
