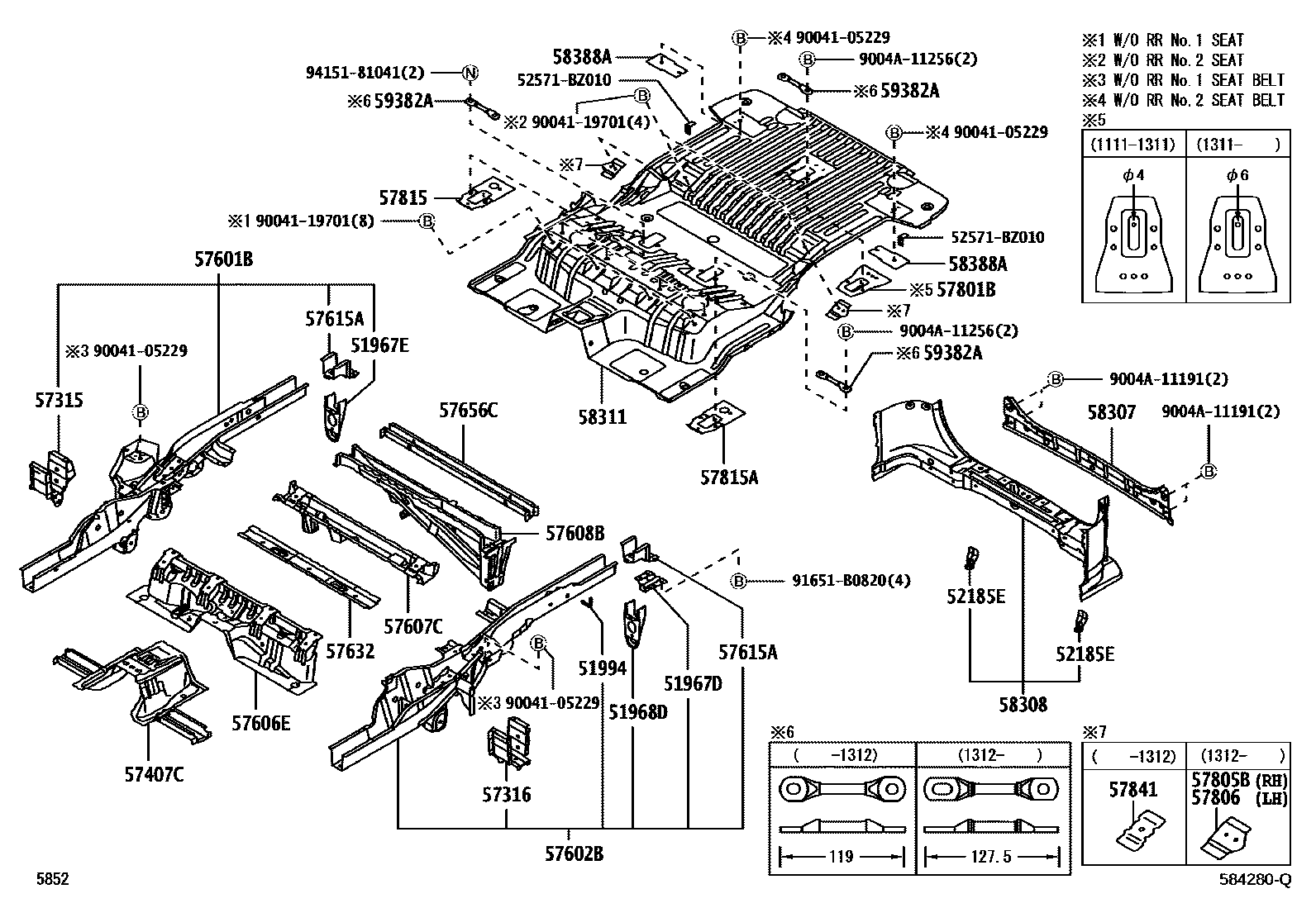

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0003 1 0004 1

51967DHOOK SUB-ASSY,REAR

main51095-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

51967EHOOK, TRANSPORT, REAR RH

main51096-BZ010iF65#..IDN201111-202110

51968DHOOK, TRANSPORT, REAR LH

main51096-BZ010iF65#..IDN201111-202110

51994HANGER, EXHAUST PIPE, NO.4

main51994-BZ010iF65#..IDN201111-202110

52185EBRACKET, REAR BUMPER SIDE MOUNTIN, RH

main52185-BZ080iF65#..IDN201111-202110

57315OUTRIGGER, NO.3 RH

main57315-BZ130iF65#..IDN201111-201508

main57315-BZ140iF651,652..GCC,GEN,MXC,SA,TH201111-201508

main57315-BZ150iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201904

main57315-BZ170iF65#..(MID,SPO)..IDN201901-202110

57316OUTRIGGER, NO.3 LH

main57316-BZ120iF651,652..MA,PHL201111-201508

main57316-BZ130iF651,652..GCC,GEN,MXC,SA,TH201111-201508

main57316-BZ140iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201904

main57316-BZ160iF65#..(MID,SPO)..IDN201901-202110

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-BZ040iF65#..IDN201111-201508

main57407-BZ050iF653,654201507-201712

main57407-BZ051iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201712-202110

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-BZ113iF651,652..GCC,GEN,MXC,SA,TH201111-201508

main57601-BZ191iF651,652..MA,PHL201111-201508

main57601-BZ290iF654..5F..TH;F654..SPO..TH201508-201904

sub57601-BZ520

main57601-BZ300iF654..(SPO,STD)..(MA,PHL);F653,654..(LO,MID,STD)..PHL201507-201904

sub57601-BZ530

main57601-BZ520iF65#..GCC,GEN,MXC,SA,TH201904

main57601-BZ530iF65#..(MID,SPO)..IDN201901-202110

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-BZ123iF651,652..GCC,GEN,MXC,SA,TH201111-201508

main57602-BZ201iF65#..IDN201111-201508

main57602-BZ280iF654..5F..TH;F654..SPO..TH201508-201904

sub57602-BZ500

main57602-BZ290iF654..IDN;F653..IDN,MA;F654..MID..MA201507-201904

sub57602-BZ510

main57602-BZ500iF65#..GCC,GEN,MXC,SA,TH201904

main57602-BZ510iF654..MID..PHL;F654..(SPO,STD)..(MA,PHL);F653..(LO,STD)..(IDN,PHL)201901-202110

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-BZ080iF651,652..GCC,GEN,MXC,SA,TH201111-201508

main57606-BZ130iF651,652..MA,PHL201111-201508

main57606-BZ160iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-BZ010iF65#..IDN201111-202110

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-BZ021iF651..STD..GEN201111-201508

main57608-BZ031iF651..SA;F651..MID..GEN;F652..GCC,GEN,SA;F652..(MID,SPO)..TH201111-201508

main57608-BZ170iF651,652..(LO,STD)..(MA,PHL)201111-201508

main57608-BZ180iF652..SPO..IDN201111-201508

main57608-BZ230iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202111

main57608-BZ240iF653..IDN202111

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-BZ010iF65#..IDN201111-202110

57632MEMBER, REAR FLOOR, CENTER NO.1

main57632-BZ010iF65#..IDN201111-202110

57656CMEMBER, REAR FLOOR CROOS, NO.5

main57656-BZ010iF65#..IDN201111-202110

57801BREINFORCEMENT SUB-ASSY, REAR NO.1 SEAT LEG, FRONT NO.1

main57801-BZ010iF65#201111-201311

main57801-BZ011iF65#..IDN201311-201508

main57801-BZ050iF654..5F..MXC201508-202201

MEXICO VAN

main57801-BZ060iF653..STD..PHL;F654..4AT..STD..TH;F653..(LO,STD)..(GEN,IDN,SA);F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-BZ070iF65#..IDN201312-201508

main57805-BZ080iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-BZ050iF65#..IDN201312-201508

main57806-BZ060iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

57815REINFORCEMENT, BELT ANCHOR, NO.1

main57815-BZ021iF65#..IDN201111-202110

57815AREINFORCEMENT, BELT ANCHOR, RH

main57807-BZ011iF65#..IDN201111-202110

57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH

main57841-BZ040iF65#201111-201312

58307PANEL SUB-ASSY, BODY LOWER BACK

main58377-BZ020iF653..GEN,IDN,PHL,SA;F654..MID..(GEN,IDN,MXC,PHL,SA);F654..(SPO,STD)..(GEN,IDN,PHL,SA,TH)201111-201807

sub58377-BZ021

main58377-BZ021iF653..MID..GEN;F654..GEN,MXC,PHL,SA;F654..4AT..(MID,STD)..TH;F653..(LO,STD,VB)..(GEN,IDN,PHL,SA)201808-201904

main58377-BZ021iF65#..MID..IDN201901-202110

RHD GENERAL COUNTRIES

main58377-BZ030iF651,652..MA;F652..SPO..TH201111-201807

sub58377-BZ031

main58377-BZ031iF654..GCC201808-202201

main58377-BZ060iF654..(SPO,STD)..MA201901-202201

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-BZ120iF65#..(MID,SPO)..IDN201111-202201

main58308-BZ130iF651..LO..PHL201112-201904

main58308-BZ140iF654..5F..TH;F654..SPO..TH201111-201904

main58308-BZ160iF653..VB;F653..5F..GEN201111-201508

main58308-BZ160iF653..VB;F65#..5F..GEN201508-201904

MEXICO VAN

58311PAN, REAR FLOOR

main58311-BZ170iF652;F651..STD..PHL;F651..MID..GEN;F651..RHD..(LO,MID,STD)201111-201312

sub58311-BZ290

main58311-BZ250iF651..VB;F651..5F..GEN;F651..LO..PHL201111-201312

sub58311-BZ340

main58311-BZ290iF65#..IDN201312-201508

main58311-BZ300iF654..5F..MXC201508-201712

MEXICO VAN

main58311-BZ310iF653..STD..PHL;F653,654..MID..GEN;F653..RHD..(LO,MID,SPO,STD);F654..GCC,IDN,MA,MXC,PHL,SA,TH201507-201712

main58311-BZ330iF654..5F..MXC201712-201901

MEXICO VAN

sub58311-BZ331

sub90048-71320

main58311-BZ330iF654..5F..MXC201712-201901

INDONESIA TAXI

sub58311-BZ331

sub90048-71320

main58311-BZ331iF653..VB;F653..LHD..LO;F653..STD..GEN201904

main58311-BZ331iF653..VB;F653..LHD..LO;F65#..STD..GEN201901-201904

MEXICO VAN

main58311-BZ340iF651..VB;F651..5F..GEN;F651..LO..PHL201312-201508

main58311-BZ390iF653..STD..PHL;F65#..MID..GEN;F653..RHD..(LO,MID,SPO,STD);F654..GCC,IDN,MA,MXC,PHL,SA,TH201712-201901

sub58311-BZ391

sub90048-71320

main58311-BZ391iF653..STD..PHL;F653..(LO,STD)..SA;F654..4AT..STD..TH;F654..(SPO,STD)..(GCC,MA,PHL,SA);F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901-202110

58388ABRACKET,REAR FLOOR PLATE

main72611-BZ030iF65#..IDN201111-201508

main72611-BZ030iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

W/O ID MARK

main72611-BZ070iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201709-202110

ID MARK =T

59382ASTRIKER, REAR SEAT LEG LOCK

main72692-BZ020iF65#..LO,MID,SPO,STD201111-201312

main72692-BZ030iF654..5F..PHL;F654..LHD..5F..STD201312-202111

main72692-BZ040-B0iF653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)201507-201904

DK.GRAY,TRIM1#

main72692-BZ040-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

DK.GRAY,TRIM4#

52571BZ010BRACKET, REAR BUMPER FILLER

main52571-BZ010

9004105229

main90041-05229

9004119701

main90041-19701

9004A11191

main9004A-11191

9004A11256

main9004A-11256

91651B0820

main91651-B0820

9415181041

main94151-81041

34 parts on this diagram · 3 diagrams in section
