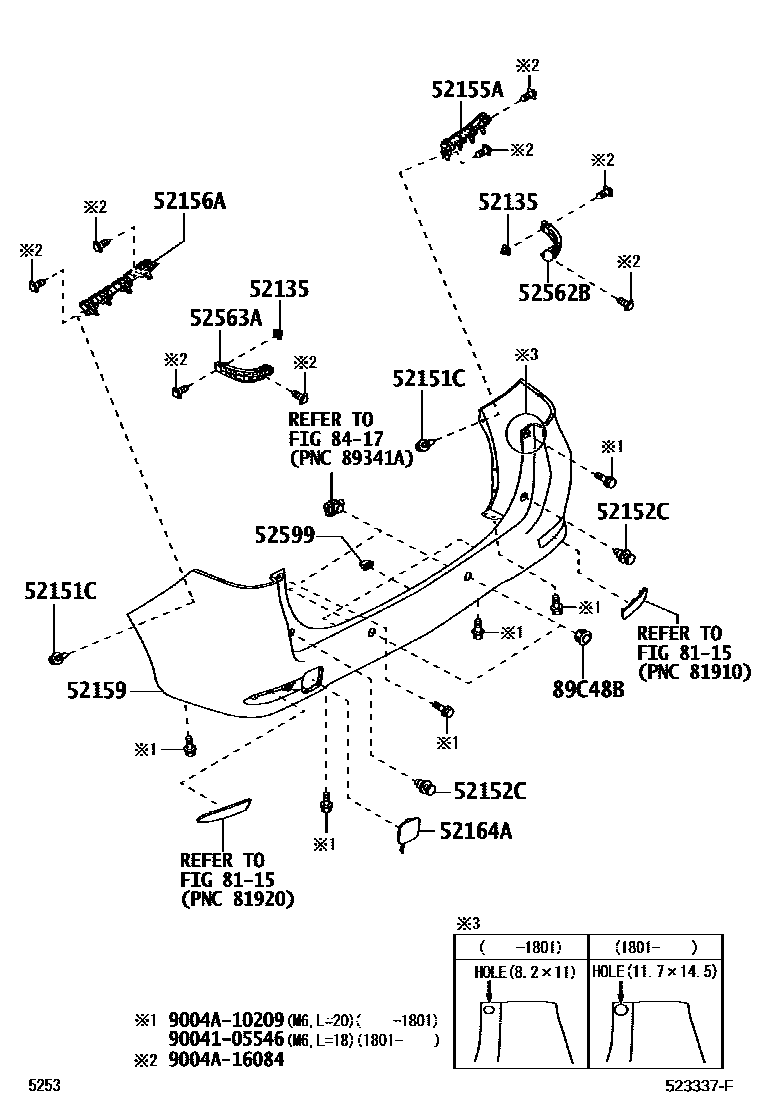

REAR BUMPER & BUMPER STAY

0001 1 0006 1 0008 1 0010 1

52135GROMMET, REAR BUMPER STAY

main9004A-18034iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main55394-60050iF65#..IDN201111-202110

52152CCLIP, REAR BUMPER SIDE

main90044-67567iF65#..IDN201111-201705

main9004A-46334iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201706-202110

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-BZ120iF65#..IDN201111-202110

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-BZ120iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

52159COVER, REAR BUMPER

main52159-BZ140iF654..STD..GCC201507-201801

L/RR FOG LAMP

sub52105-BZ070

main52159-BZ140iF65#..(MID,STD)..IDN201111-201508

sub52105-BZ070

main52159-BZ141iF653..IDN201904

main52159-BZ141iF654..MID..MA;F653..(MID,STD)..(IDN,MA);F654..5F..(MID,STD)..(IDN,TH)201801-201904

L/RR FOG LAMP

main52159-BZ800iF652..SPO..(MA,TH)201111-201801

sub52105-BZ100

main52159-BZ801iF65#..SPO..(IDN,TH)201801-201904

main52159-BZE20iF654..MID..TH201508-201801

L/RR FOG LAMP

sub52105-BZ190

main52159-BZE20iF654..MID..TH201508-201801

W/BACK SONER,L/RR FOG LAMP

sub52105-BZ190

main52159-BZE21iF654..STD..MA201801-201904

W/BACK SONER,L/RR FOG LAMP

main52159-BZE21iF654..STD..MA201801-201904

L/RR FOG LAMP

main52159-BZF90iF654..MID..GCC201609-201801

W/RR FOG LAMP

sub52105-BZ200

main52159-BZF91iF654..MID..GCC201801-201904

W/RR FOG LAMP

main52159-BZG00iF654..STD..GCC201609-201801

W/RR FOG LAMP

sub52105-BZ210

main52159-BZG01iF654..STD..GCC201801-201904

W/RR FOG LAMP

main52159-BZJ60iF653..STD..IDN201901-202111

L/RR FOG LAMP

main52159-BZJ70iF65#..SPO..IDN201901-202201

L/RR FOG LAMP

main52159-BZK50iF654..STD..GCC201904-202201

W/RR FOG LAMP

main52159-BZK60iF654..MID..GCC201904-202201

W/RR FOG LAMP

52164APLATE, REAR BUMPER, LH

main52164-BZ130iF65#..(MID,STD)..IDN201111-201904

main52164-BZ150iF653,654..SPO..(IDN,TH)201111-201904

main52164-BZ230iF653..STD..IDN201901-202111

main52164-BZ240iF65#..SPO..IDN201901-202201

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-BZ010iF65#..IDN201111-202110

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-BZ010iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-202110

52599STOPPER, REAR BUMPER, UPPER

main90044-67499iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201509

main9004A-46356iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201509-202110

8115

8417

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-BZ030iF654..MA201904-202201

PARKING SUPPORT ALT/BRK(O/RR2)

main89348-BZ030iF654..MID..(GCC,TH)201508-201904

W/BACK SONER

9004105546

main90041-05546

9004A10209

main9004A-10209

9004A16084

main9004A-16084

16 parts on this diagram · 4 diagrams in section
