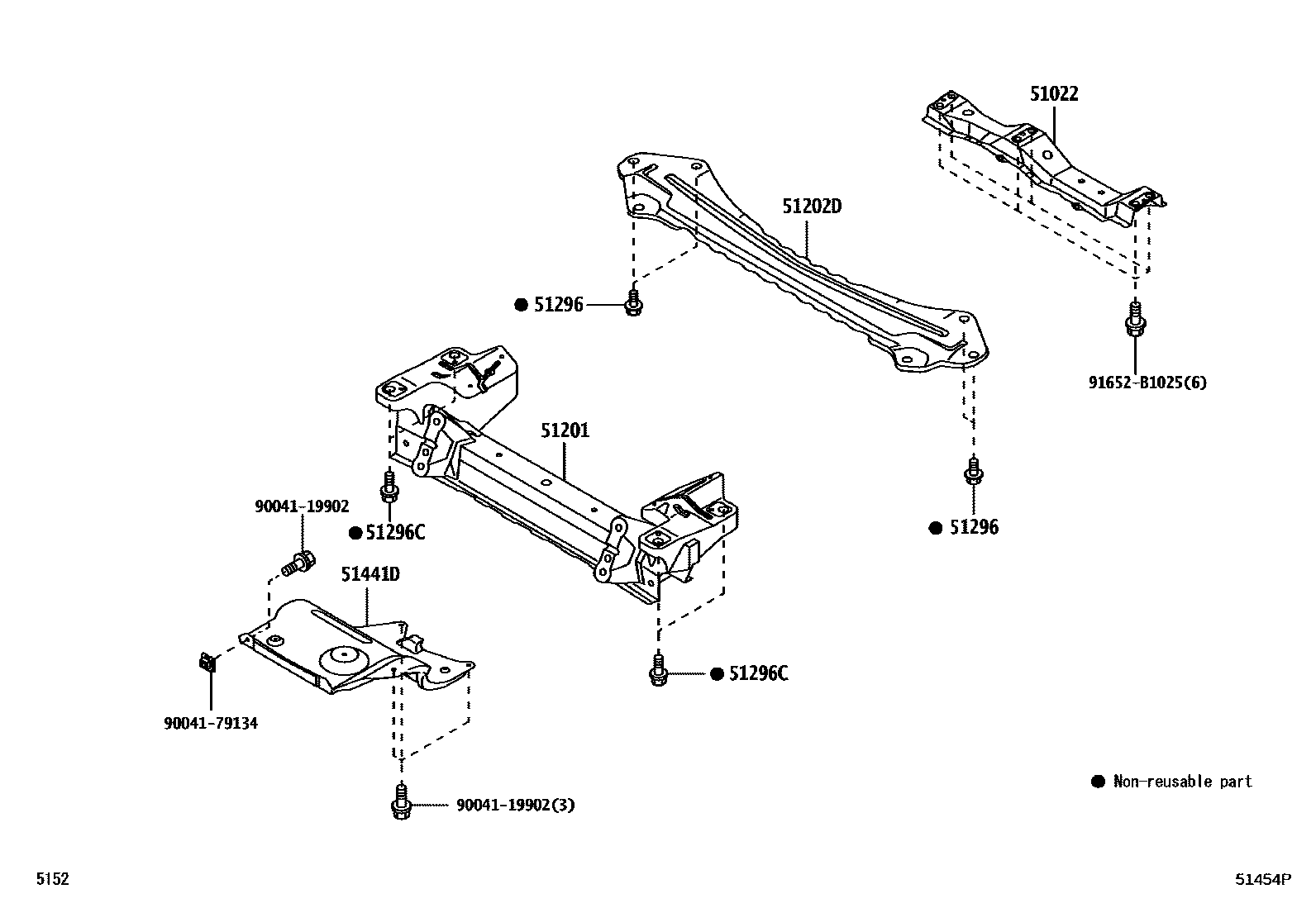

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0005 1

51022MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main51022-BZ030iF653;F654..GEN,IDN,PHL201507-201904

W/ENGINE UNDER COVER

main51022-BZ050iF65#..(MID,SPO)..IDN201707-202110

L/ENGINE UNDER COVER

main51022-BZ100iF651..4AT..IDN201111-201508

main51022-BZ110iF652..IDN;F651..5F..IDN201111-201508

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51210-BZ100iF65#..IDN201111-201508

main51210-BZ140iF653,654201507-201808

sub51210-BZ142

main51210-BZ142iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201809-202110

51202DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-BZ090iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

main51202-BZ100iF651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51325-B0010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201509

main9004A-10136iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201712-202110

main9004A-11315iF65#201509-201711

sub9004A-10136

51296CBOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-20308iF65#201503-201506

sub9004A-11267

sub91642-81235

main9004A-10136iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201712-202110

main9004A-11267iF653,654201507-201711

sub9004A-10136

main91642-81235iF65#201111-201502

51441COVER, ENGINE UNDER, NO.1

main51441-BZ150iF652..MA,MXC,SA,TH201111-201401

main51441-BZ190iF65#..IDN201401-201508

main51441-BZ240iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

51441DCOVER, ENGINE UNDER

main51441-BZ010iF651..5F..(IDN,MA,PHL,SA)201111-201401

main51441-BZ020iF651..4AT;F651..5F..GEN;F652..GEN,IDN,PHL201111-201401

9004119902

main90041-19902

9004179134

main90041-79134

91652B1025

main91652-B1025

10 parts on this diagram · 4 diagrams in section
