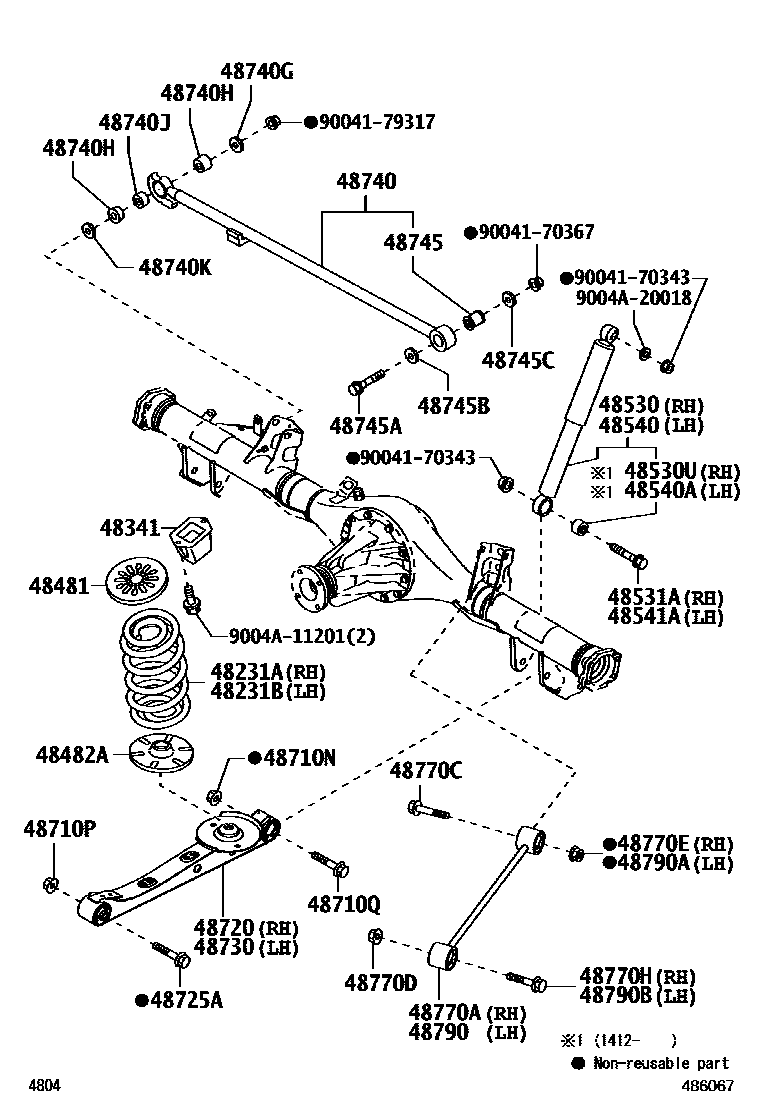

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48231ASPRING, COIL, REAR RH

main48231-BZ400iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main48231-BZ610iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201904

sub48231-BZ830

main48231-BZ830iF65#..(MID,SPO)..IDN201901-202110

48231BSPRING, COIL, REAR LH

main48231-BZ400iF65#..IDN201111-201508

main48231-BZ610iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201904

sub48231-BZ830

main48231-BZ830iF65#..(MID,SPO)..IDN201901-202110

48341BUMPER, REAR SPRING

main48341-BZ080iF65#..IDN201111-201508

sub48341-BZ130

main48341-BZ130iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

48481SEAT, REAR SPRING, UPPER

main48481-BZ010iF65#..IDN201111-202110

48482ASEAT, REAR SPRING, LOWER

main48482-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-BZ090iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201904

MARK 48530-BZ090

sub48530-BZ240

main48530-BZ240iF654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)201901-202212

MARK 48530-BZ240

sub48530-BZ241

main48531-BZ490iF65#201111-201310

MARK 48531-BZ490

sub48531-BZ491

main48531-BZ491iF65#201311-201411

MARK 48531-BZ491

sub48531-BZ492

main48531-BZ492iF65#201412-201501

MARK 48531-BZ492

sub48531-BZ493

main48531-BZ493iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201502-201508

MARK 48531-BZ493

48530UBUSH(FOR REAR SHOCK ABSORBER RH)

main48537-BZ040iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201412-201904

48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)

main90041-05375iF65#..IDN201111-201904

main90041-05375iF654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)201901-202009

TYPE A

main9004A-10201iF65#..(MID,SPO)..IDN202007-202110

TYPE B

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-BZ090iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201904

MARK 48530-BZ090

sub48530-BZ240

main48530-BZ240iF654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)201901-202212

MARK 48530-BZ240

sub48530-BZ241

main48531-BZ490iF65#201111-201310

MARK 48531-BZ490

sub48531-BZ491

main48531-BZ491iF65#201311-201411

MARK 48531-BZ491

sub48531-BZ492

main48531-BZ492iF65#201412-201501

MARK 48531-BZ492

sub48531-BZ493

main48531-BZ493iF65#..IDN201502-201508

MARK 48531-BZ493

48540ABUSH(FOR REAR SHOCK ABSORBER LH)

main48537-BZ040iF65#..IDN201412-201904

48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)

main90041-05375iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-201904

main90041-05375iF654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)201901-202009

TYPE A

main9004A-10201iF65#..(MID,SPO)..IDN202007-202110

TYPE B

48710NNUT, NO.1(FOR REAR LOWER CONTROL ARM)

main90041-70366iF65#..IDN201111-201509

main9004A-17254iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201510-202110

48710PNUT, NO.2(FOR REAR LOWER CONTROL ARM)

main90041-79318iF65#..IDN201111-201509

main9004A-17257iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201510-202110

48710QBOLT(FOR REAR LOWER CONTROL ARM)

main90041-01664iF65#..IDN201111-201511

main9004A-10159iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201511-202110

48720ARM ASSY, LOWER CONTROL, RH

main48720-BZ060iF65#..IDN201111-201508

main48720-BZ070iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

48725ABOLT(FOR LOWER CONTROL ARM)

main90041-05378iF65#..IDN201111-201511

main9004A-10149iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201511-202110

48730ARM ASSY, LOWER CONTROL, LH

main48720-BZ060iF65#..IDN201111-201508

main48720-BZ070iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

48740ROD ASSY, REAR LATERAL CONTROL

main48740-BZ120iF651..4AT..IDN;F651..GEN,MA,PHL;F652..GEN,IDN,MA,MXC,PHL,TH201111-201311

sub48740-BZ121

main48740-BZ121iF651,652..GEN,MA,MXC,PHL,TH201312-201508

main48740-BZ130iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

main48740-BZ140iF652..SA;F651..5F..(IDN,SA)201111-201311

sub48740-BZ141

main48740-BZ141iF651..5F..IDN201312-201507

main48740-BZ141iF651,652..GCC,SA201312-201508

DESTINATION PACKAGE(ALL)-PERU

48740GWASHER, PLATE, NO.1(FOR REAR LATERAL CONTROL ROD)

main9004A-20017iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-202110

48740HBUSH, NO.1(FOR REAR LATERAL CONTROL ROD)

main48706-BZ050iF65#201111-201402

main48706-BZ060iF65#..IDN201402-201508

48740JBUSH, NO.2(FOR REAR LATERAL CONTROL ROD)

main90043-86103iF65#201111-201402

48740KWASHER, PLATE, NO.2(FOR REAR LATERAL CONTROL ROD)

main9004A-20029iF65#..IDN201111-201508

48745BUSH, LATERAL CONTROL ROD

main48706-BZ040iF65#201111-201311

sub48706-BZ041

main48706-BZ041iF65#..IDN201312-201508

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90041-05407iF65#..IDN201111-201511

main9004A-10160iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201511-202110

48745BWASHER, LATERAL CONTROL ROD CUSHION

main9004A-20039iF65#..IDN201111-202110

48745CWASHER, LATERAL CONTROL ROD CUSHION

main9004A-20039iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

48770AARM ASSY, UPPER CONTROL, REAR RH

main48710-BZ180iF651..STD..GEN201111-201508

L/ABS

sub48710-BZ320

main48710-BZ190iF652..SPO..IDN201111-201508

W/ABS

main48710-BZ320iF653..IDN202111

L/ABS

main48710-BZ330iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202111

W/ABS

48770CBOLT(FOR REAR UPPER CONTROL ARM)

main90041-01662iF65#..IDN201111-201511

main9004A-10157iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201511-202110

48770DNUT(FOR REAR UPPER CONTROL ARM)

main90041-79318iF65#..IDN201111-201509

main9004A-17257iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201510-202110

48770ENUT, NO.1(FOR REAR UPPER CONTROL ARM RH)

main90041-70366iF65#..IDN201111-201509

main9004A-17254iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201510-202110

48770HBOLT(FOR REAR UPPER CONTROL ARM RH)

main90041-01661iF65#..IDN201111-201511

main9004A-10152iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201511-202110

48790ARM ASSY, UPPER CONTROL, REAR LH

main48710-BZ180iF65#..(MID,STD)..IDN201111-201508

L/ABS

sub48710-BZ320

main48710-BZ190iF652..SPO..IDN201111-201508

W/ABS

main48710-BZ320iF653..IDN202111

L/ABS

main48710-BZ330iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202111

W/ABS

48790ANUT, NO.1(FOR REAR UPPER CONTROL ARM LH)

main90041-70366iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201509

main9004A-17254iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201510-202110

48790BBOLT(FOR REAR UPPER CONTROL ARM LH)

main90041-01661iF65#..IDN201111-201511

main9004A-10152iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201511-202110

9004170343

main90041-70343

9004170367

main90041-70367

9004179317

main90041-79317

9004A11201

main9004A-11201

9004A20018

main9004A-20018

39 parts on this diagram · 2 diagrams in section
