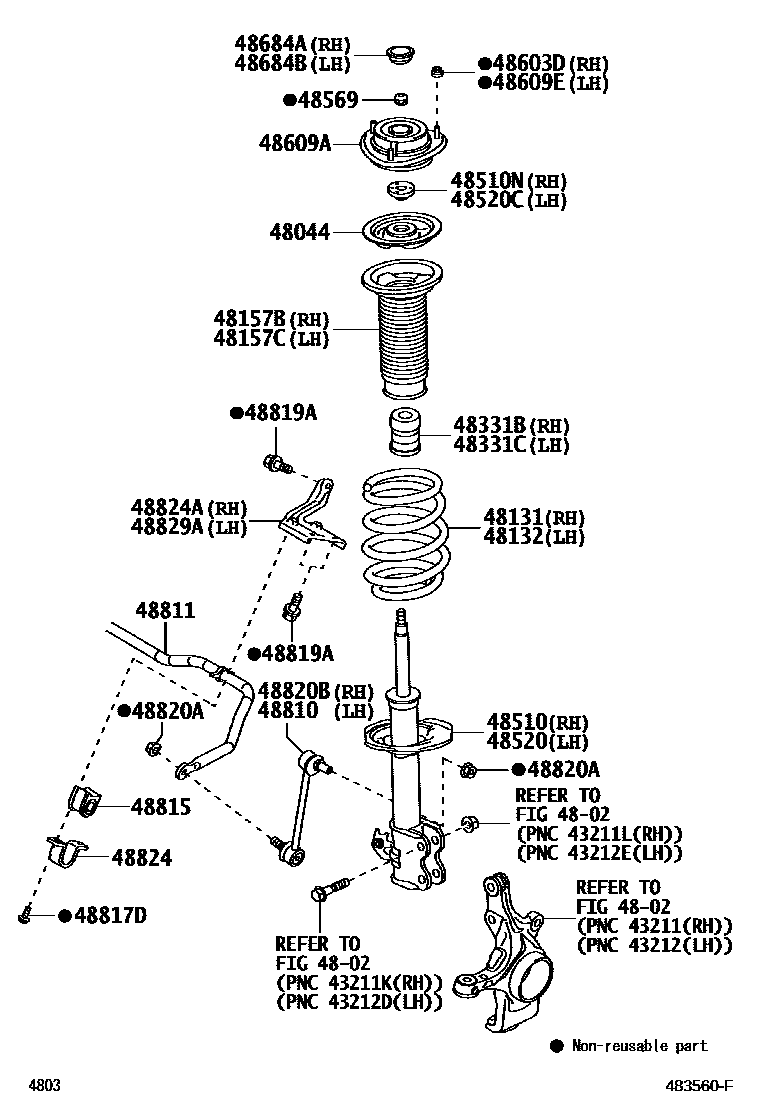

FRONT SPRING & SHOCK ABSORBER

4802

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-BZ080iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

48131SPRING, FRONT COIL, RH

main48131-BZ470iF651..IDN201111-201508

main48131-BZ480iF652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main48131-BZ710iF653..GEN,PHL,SA201507-201904

main48131-BZ720iF654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201904

main48131-BZB00iF653..(MID,SPO)..IDN201901-202110

main48131-BZB10iF654..IDN201901-202110

48132SPRING, FRONT COIL, LH

main48131-BZ470iF651..IDN201111-201508

main48131-BZ480iF652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main48131-BZ710iF653..IDN,MA201507-201904

main48131-BZ720iF654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main48131-BZB00iF653..(MID,SPO)..IDN201901-202110

main48131-BZB10iF654..IDN201901-202110

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-BZ040iF654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)201111-202005

main48157-BZ100iF65#..(MID,SPO)..IDN202006-202110

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-BZ040iF65#..IDN201111-202005

main48157-BZ100iF65#..(MID,SPO)..IDN202006-202110

48331BBUMPER, FRONT SPRING, RH

main48331-BZ110iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

48331CBUMPER, FRONT SPRING, LH

main48331-BZ110iF65#..IDN201111-202110

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-BZ740iF651..STD..GEN201111-201508

MARK 48510-BZ740

main48510-BZ750iF651..STD..GEN201111-201508

MARK 48510-BZ750

main48510-BZA70iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201904

MARK 48510-BZA70

main48510-BZD60iF653..IDN202111

MARK 48510-BZD60

main48510-BZD70iF653..STD..IDN201901-202111

MARK 48510-BZD70

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90043-85174iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-BZ490iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201904

MARK 48520-BZ490

main48520-BZ740iF652..MXC;F651..LO..GEN;F651,652..(LO,STD)..(MA,PHL,TH)201111-201508

MARK 48520-BZ740

main48520-BZ750iF652..SPO..IDN201111-201508

MARK 48520-BZ750

main48520-BZA10iF653..IDN202111

MARK 48520-BZA10

main48520-BZA20iF653..STD..IDN201901-202111

MARK 48520-BZA20

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90043-85174iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

48569NUT, SHOCK ABSORBER PISTON

main90041-77018iF65#..(MID,SPO)..IDN202101-202110

COLOR:RED

main90041-79316iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-201904

main90041-79316iF654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)201901-202101

COLOR:GREEN

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90041-79303iF65#..IDN201111-201509

main9004A-17256iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201510-202110

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-BZ070iF65#..IDN201111-202110

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90041-79303iF65#..IDN201111-201509

main9004A-17256iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201510-202110

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-BZ010iF65#..IDN201111-202011

main48684-BZ110iF65#..(MID,SPO)..IDN202012-202110

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-BZ010iF65#..IDN201111-202011

main48684-BZ110iF65#..(MID,SPO)..IDN202012-202110

48810LINK ASSY, FRONT STABILIZER, LH

main48820-B0010iF65#201111-201507

main48820-BZ080iF651,652201507-202110

48811BAR, STABILIZER, FRONT

main48811-BZ030iF65#..IDN201111-201508

main48811-BZ160iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-BZ010iF65#..IDN201111-201508

main48815-BZ150iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

48817DBOLT(FOR FRONT STABILIZER)

main9004A-10226iF65#..(MID,SPO)..IDN201801-202110

M8,L=20

main9004A-11318iF65#201604-201801

M8,L=25

main91671-80825iF65#201111-201603

M8,L=25

48819ABOLT, FRONT STABILIZER

main90041-20261iF65#..IDN201111-201511

M8,L=16

main9004A-10226iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201801-202110

M8,L=20

main9004A-11317iF65#201512-201801

M8,L=16

48820ANUT(FOR FRONT STABILIZER LINK)

main90041-70260iF65#..IDN201111-201509

main9004A-17249iF65#201510-201709

main9004A-17255iF65#..(MID,SPO)..IDN201710-202110

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-B0010iF65#201111-201507

main48820-BZ080iF651,652201507-202110

48824BRACKET, STABILIZER, FRONT

main48824-BZ010iF65#..IDN201111-202110

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-BZ010iF65#..IDN201111-202110

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48807-BZ010iF65#..IDN201111-202110

28 parts on this diagram · 1 diagram in section
