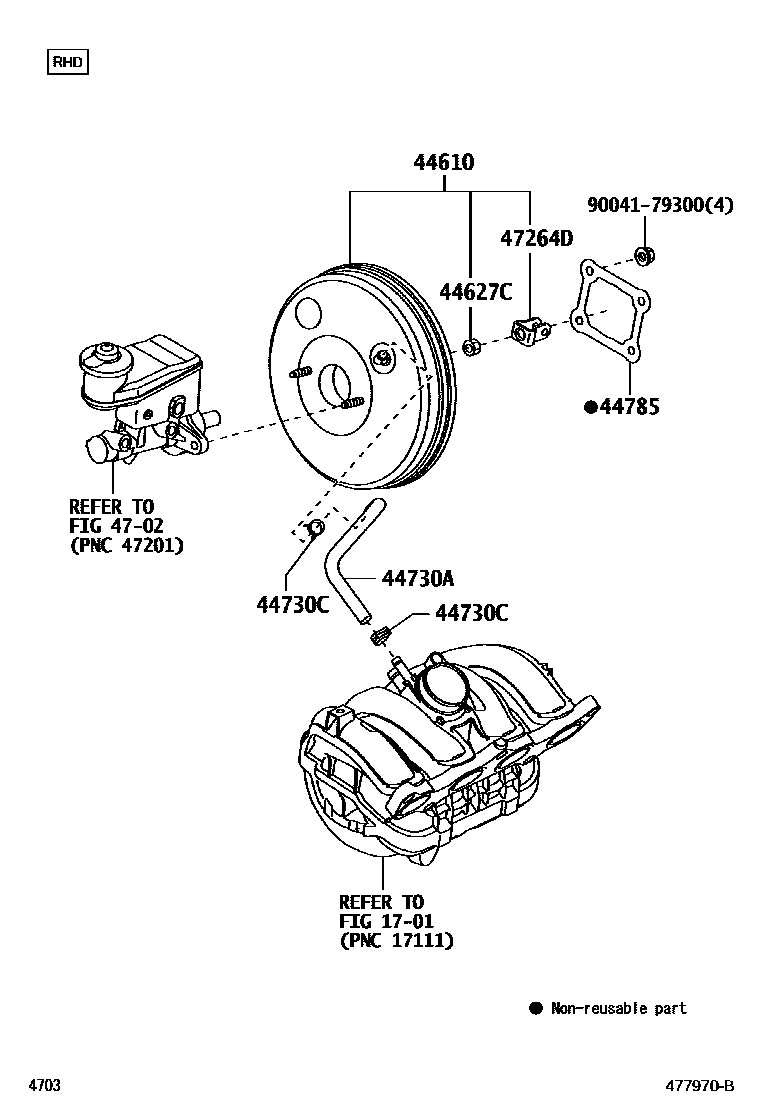

BRAKE BOOSTER & VACUUM TUBE

0001 1RHD 0002 1RHD 0003 1LHD 0004 1LHD

1701

44610BOOSTER ASSY, BRAKE

main44610-BZ230iF65#..IDN201111-201508

main44610-BZ250iF651,652..LHD201112-201508

main44610-BZ510iF65#..5F..(MID,SPO)..IDN201507-202110

main44610-BZ520iF65#..LHD..5F201508-201904

main44610-BZ590iF654..4AT..(MID,STD)..TH;F654..4AT..(SPO,STD)..(MA,SA)201507-202110

main44610-BZ600iF65#..LHD..4AT201508-201904

44627CNUT, BOOSTER SLEEVE CYLINDER

main9004A-17214iF65#..IDN201111-201508

sub9004A-17229

main9004A-17229iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

44730AHOSE, VACUUM, NO.1

main44750-B0080iF65#..IDN201111-201508

main44750-B0090iF651,652..LHD201112-201508

main44750-BZ250iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

main44750-BZ260iF65#..LHD201508-201904

44730CCLIP(FOR VACUUM HOSE)

main90044-67161iF65#..IDN¥140201111-202110

44785GASKET, BRAKE BOOSTER

main47275-BZ010iF65#..IDN¥430201111-202110

sub47278-87703¥460

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-BZ010iF65#..IDN201111-201508

main47264-BZ120iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

9004179300

main90041-79300¥120

9 parts on this diagram · 4 diagrams in section
