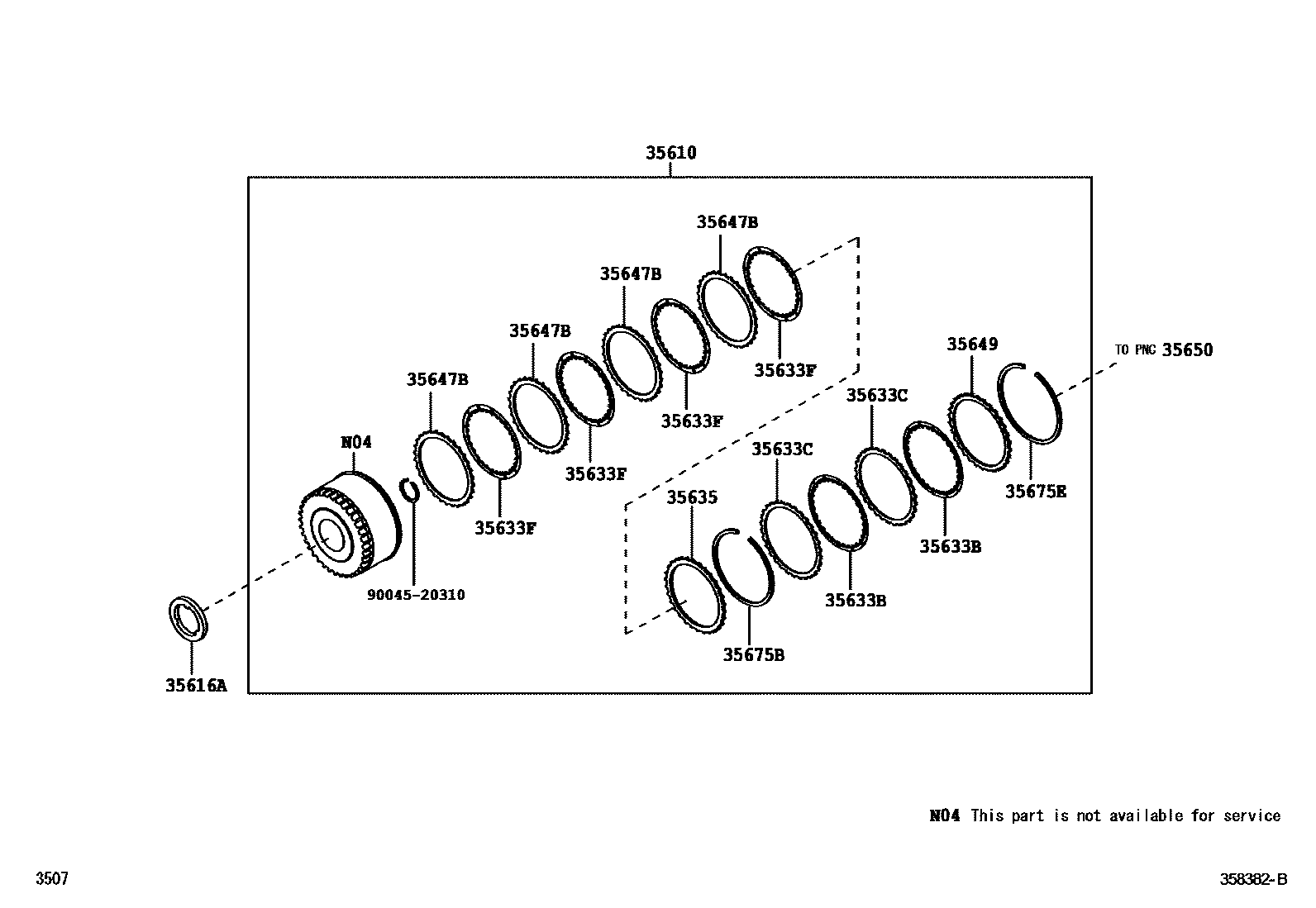

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1A4Q-D1 0002 1A4Q-D1 0003 1

35610CLUTCH ASSY, FRONT MULTIPLE DISC

main35610-97204iF653,654..4AT201111-201603

main35610-B1030iF65#..4AT201604-202110

35616ABEARING, FRONT CLUTCH THRUST

main90043-74043iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201111-202110

T=3.81

main90043-74044iF65#..4AT..(MID,SPO)..IDN201111-202110

T=3.41

main90043-74045iF651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-202110

T=4.21

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-97205iF65#..4AT..IDN201111-201603

sub35633-B1010

main35633-B1010iF65#..4AT201604-202110

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35634-97206iF65#..4AT..IDN201111-202110

35633FDISC, CLUTCH (FOR FRONT CLUTCH)

main35667-97206iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201111-202110

35635FLANGE, FORWARD CLUTCH

main35635-97201iF651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-202110

T=3.0

35647BPLATE, CLUTCH, NO.2

main35647-97204iF65#..4AT..IDN201111-202110

35649FLANGE, REVERSE CLUTCH

main35675-97201iF653,654..4AT201111-202110

T=3.0

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-B1020iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201507-202110

main35650-B1030iF651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

35675FLANGE, REAR CLUTCH

main35689-B1010iF65#..4AT..IDN201111-202110

T=3.0

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90045-21164iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201111-202110

T=1.5

main90045-21166iF65#..4AT..(MID,SPO)..IDN201111-202110

T=1.75

main90045-21167iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201111-202110

T=2.0

main90045-21168iF65#..4AT..IDN201111-202110

T=2.25

main90045-21169iF653,654..4AT201111-202110

T=2.5

35675ERING, HOLE SNAP (FOR REAR CLUTCH FLANGE)

main90045-21165iF65#..4AT..IDN201111-202110

9004520310

main90045-20310

13 parts on this diagram · 3 diagrams in section
