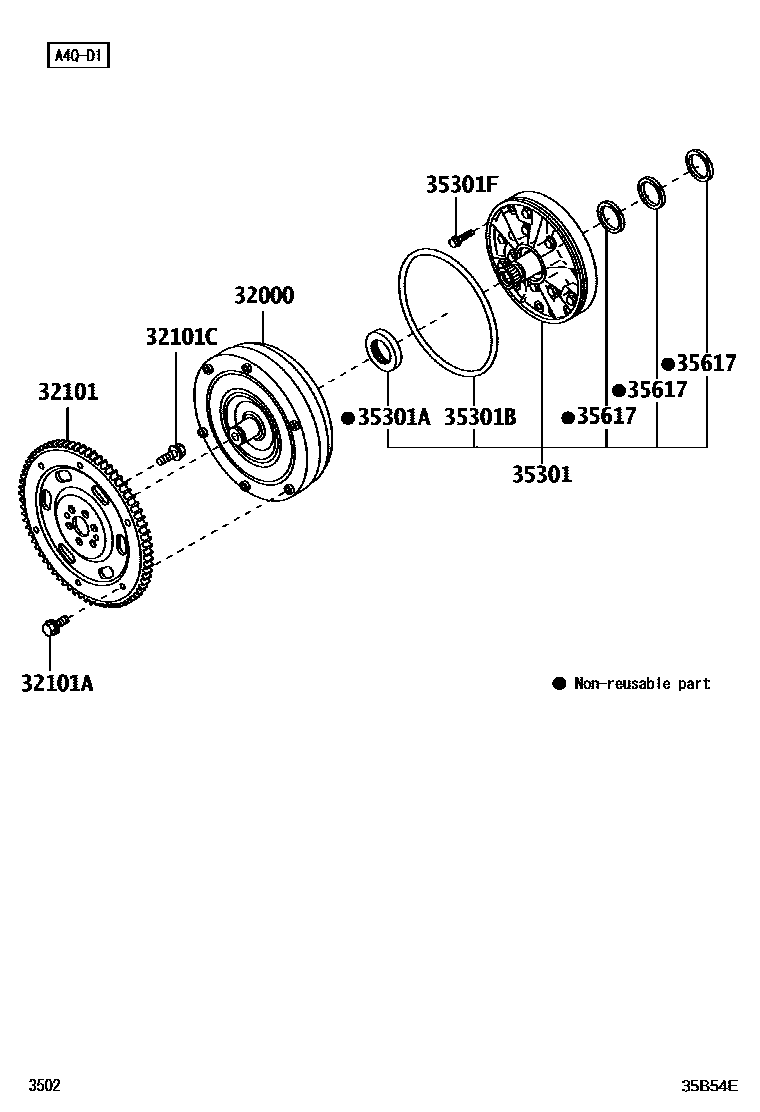

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A4Q-D1 0003 1

32000CONVERTER ASSY, TORQUE

main32000-B0010iF652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-202110

main32000-B1020iF651..LHD..4AT201111-202110

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-B1020iF65#..4AT..IDN201111-201508

main32101-BZ050iF65#..4AT..(MID,SPO)..IDN201507-202110

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05273iF651,652..4AT201111-202101

M8,L=9.5,SILVER

main90041-05281iF651,652..4AT201111-202101

M8,L=9.5,BLACK

main90041-05595iF65#..4AT..(MID,SPO)..IDN202101-202110

M8,L=9,SILVER

main90041-05596iF653..4AT..STD;F653..MID..GEN;F654..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)202101-202110

M8,L=9,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90048-01037iF651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

main9004A-10200iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201507-202110

35301BODY SUB-ASSY, FRONT OIL PUMP

main35310-97203iF65#..4AT..IDN201111-201508

main35310-B1040iF653,654..4AT201507-201603

sub35310-B1050

main35310-B1050iF65#..4AT201604-202110

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90043-11336iF65#..4AT..IDN201111-202110

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90043-01161iF65#..4AT..IDN201111-202110

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90041-05122iF65#..4AT..IDN201111-202110

35617RING, CLUTCH DRUM OIL SEAL

main35653-97201iF65#..4AT..IDN201111-201603

sub35653-B1010

main35653-B1010iF65#..4AT201604-202110

9 parts on this diagram · 2 diagrams in section
