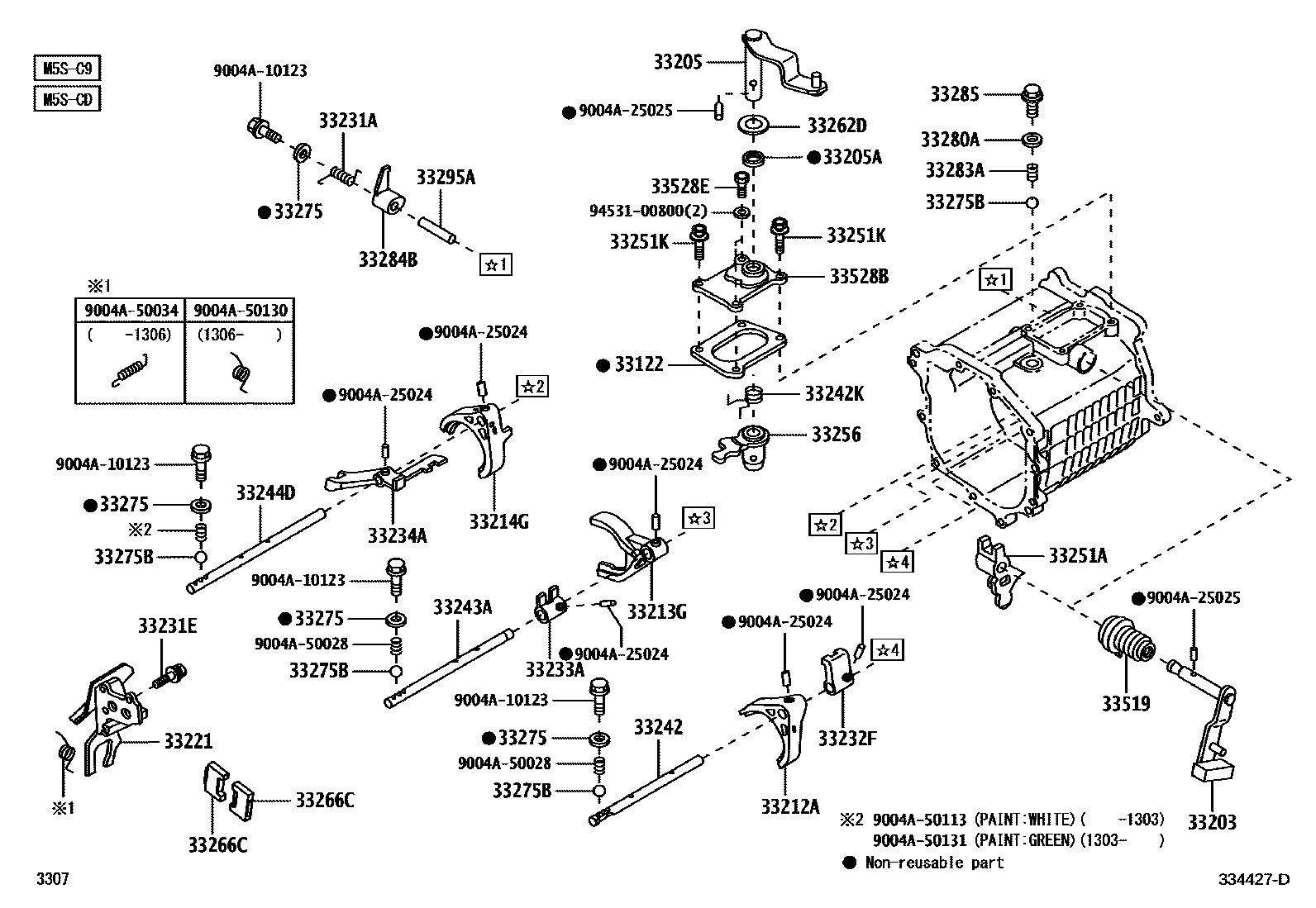

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1M5S-C9, M5S-CD 0002 1

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-BZ020iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)¥480201111-201508

main33122-BZ060iF653,654..5F..(IDN,MA,TH)201507-202112

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-BZ080iF65#..5F..IDN201111-201508

main33203-BZ100iF653,654..5F..(IDN,MA,TH)201507-202112

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-BZ060iF65#..5F..IDN201111-201508

main33205-BZ080iF653,654..5F..(IDN,MA,TH)201507-202112

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main9004A-31017iF65#..5F..IDN¥420201111-202112

33212AFORK, GEAR SHIFT, NO.1

main33212-BZ040iF65#..5F..IDN¥3,350201111-201508

main33212-BZ060iF653,654..5F..(IDN,MA,TH)201507-202112

33213GFORK, GEAR SHIFT, NO.2

main33213-BZ090iF65#..5F..IDN¥4,020201111-202112

33214GFORK, GEAR SHIFT, NO.3

main33214-BZ050iF65#..5F..IDN¥3,200201111-201508

main33214-BZ070iF653,654..5F..(IDN,MA,TH)201507-202112

33221ARM, REVERSE SHIFT

main33201-BZ010iF65#..5F¥8,900201111-201306

sub33201-BZ011¥4,380

main33201-BZ011iF65#..5F..IDN¥4,380201306-202112

33231ASPRING, REVERSE SHIFT RESTRICT

main9004A-50033iF65#..5F..IDN¥80201111-202112

33231EBOLT(FOR REVERSE SHIFT HEAD)

main9004A-11228iF65#..5F..IDN201111-202112

33232FHEAD, GEAR SHIFT, NO.1

main33232-BZ010iF65#..5F..IDN¥3,470201111-201605

33233AHEAD, GEAR SHIFT, NO.2

main33233-BZ010iF65#..5F..IDN¥2,290201111-202112

33234AHEAD, GEAR SHIFT, NO.3

main33234-BZ010iF65#..5F..IDN¥1,480201111-202112

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-BZ010iF65#..5F..IDN¥3,610201111-201604

sub33242-BZ050¥1,650

main33242-BZ050iF65#..5F..(IDN,MA,TH)¥1,650201605-202112

33242KSPRING, TORSION(FOR SELECT RETURN)

main9004A-50032iF65#..5F..IDN¥120201111-202112

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-BZ010iF653..5F201111-201708

sub33243-BZ080

main33243-BZ030iF654..5F¥1,650201111-201708

sub33243-BZ090

sub33245-B4010¥1,730

main33243-BZ080iF653..LO..GEN;F653..5F..STD..IDN201709-202112

main33243-BZ090iF654..5F..IDN201709-202112

33244DSHAFT, GEAR SHIFT FORK, NO.3

main33244-BZ010iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)¥1,650201303-201708

sub33244-97501¥1,780

sub33244-BZ070

main33244-BZ040iF65#..5F201111-201303

main33244-BZ070iF65#..5F..(IDN,MA,TH)201709-202112

33251ALEVER, SHIFT, INNER NO.1

main33251-BZ050iF65#..5F201111-201401

sub33251-BZ060

main33251-BZ060iF65#..5F..(MID,SPO)..IDN201401-202112

33251KBOLT, WASHER BASED HEAD HEXAGON

main9004A-11230iF65#..5F..IDN201111-201508

33256LEVER, SELECT INNER

main33256-BZ040iF65#..5F201111-201401

sub33256-BZ050

main33256-BZ050iF65#..5F..IDN201401-202112

33262DWASHER, PLATE (FOR SELECT LEVER SHAFT)

main9004A-20015iF65#..5F..IDN¥100201111-202112

33266CPLATE, SHIFT INTERLOCK

main33266-BZ040iF65#..5F201111-201401

sub33266-BZ050¥540

main33266-BZ050iF65#..5F..IDN¥540201401-202112

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main9004A-43005iF653,654..5F..(IDN,MA,TH)¥80201111-202112

0D=17

33275BBALL, SHAFT DETENT

main9004A-36044iF65#..5F201111-202112

sub90043-60003¥170

33280AGASKET, REVERSE RESTRICT PIN

main9004A-43004iF65#..5F..IDN¥80201111-201508

33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)

main9004A-50125iF65#..5F¥410201111-201303

33284BPIN, REVERSE RESTRICT, NO.2

main33284-BZ010iF65#..5F..IDN¥1,670201111-202112

33285HOLDER, REVERSE RESTRICT PIN

main33285-BZ020iF65#..5F..IDN201111-201508

33295ASHAFT, REVERSE RESTRICT

main33283-BZ050iF65#..5F..IDN201111-202112

33519BOOT, CONTROL SHAFT DUST

main33519-BZ010iF65#..5F..IDN¥310201111-202112

33528BCOVER, CONTROL SHAFT

main33528-87Z01iF65#..5F..IDN¥3,350201111-201508

sub33528-87503¥3,970

main33528-BZ050iF653,654..5F..(IDN,MA,TH)201507-202112

33528EBOLT (FOR CONTROL SHAFT COVER)

main9004A-10122iF65#..5F..IDN¥230201111-201508

main9004A-10190iF653,654..5F..(IDN,MA,TH)201507-202112

9004A10123

main9004A-10123

9004A25024

main9004A-25024

9004A25025

main9004A-25025

9004A50028

main9004A-50028¥80

9004A50034

main9004A-50034¥220

9004A50113

main9004A-50113

9004A50130

main9004A-50130¥160

9004A50131

main9004A-50131

9453100800

main94531-00800¥160

41 parts on this diagram · 2 diagrams in section
