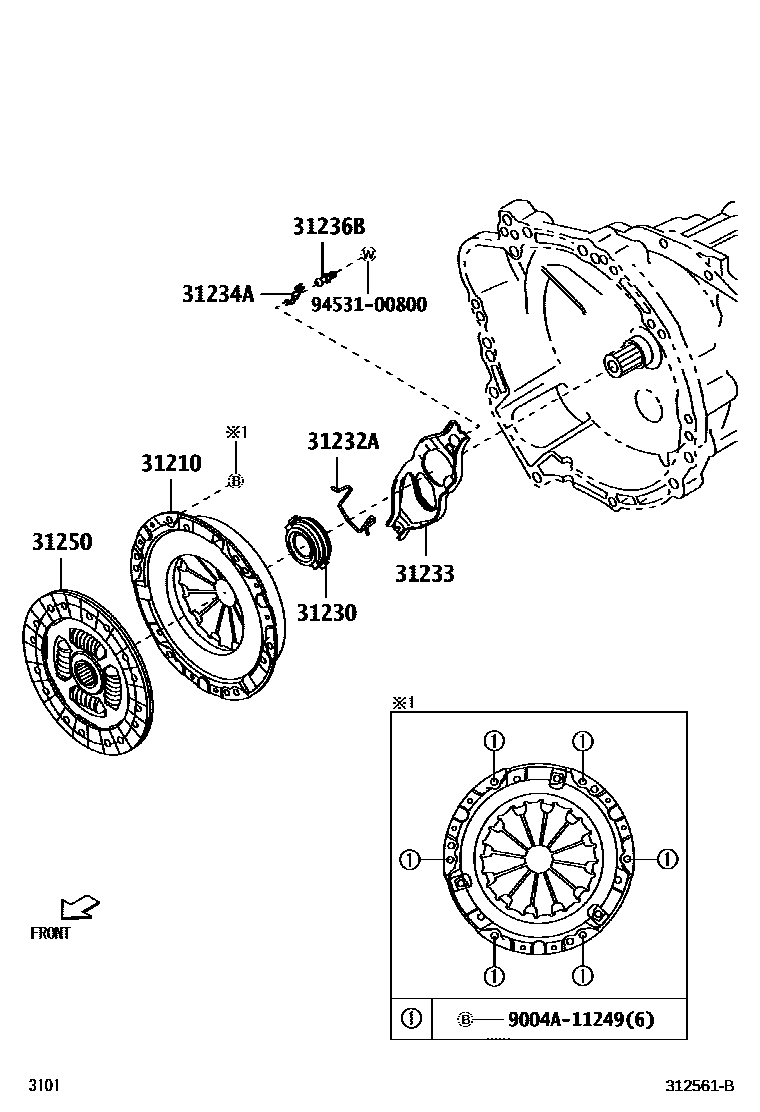

CLUTCH & RELEASE FORK

0001 1 0002 1

31210COVER ASSY, CLUTCH

main31210-BZ020iF651..5F201111-201204

sub31210-BZ021

main31210-BZ021iF653..5F..(GEN,PHL,SA)201205-202110

main31210-BZ081iF654..5F..(GCC,GEN,MXC,PHL,SA)201111-202110

31230BEARING ASSY, CLUTCH RELEASE

main31230-BZ060iF653..STD..GEN;F653..5F..(PHL,SA);F654..5F..(GCC,GEN,PHL,SA)201111-202112

31232ACLIP, RELEASE BEARING HUB

main31232-BZ040iF653..5F..(IDN,MA)201111-202112

main31232-BZ080iF654..5F..MXC201111-202112

31233FORK, CLUTCH RELEASE

main31233-BZ020iF653..5F201111-201510

sub31233-BZ040

main31233-BZ030iF652..5F201111-201509

sub31233-BZ050

main31233-BZ040iF653..LO..GEN;F653..5F..STD..IDN201511-202112

main31233-BZ050iF654..5F..(IDN,TH)201510-202112

31234ASPRING, RELEASE FORK SUPPORT

main31234-BZ030iF65#..5F201111-201502

sub31234-BZ031

main31234-BZ031iF65#..5F..(MID,SPO)..IDN201503-202112

31236BSUPPORT, RELEASE FORK

main31236-BZ010iF654..5F..IDN201111-202112

main31236-BZ020iF653..5F..(MID,SPO)201111-202112

31250DISC ASSY, CLUTCH

main31250-BZ080iF652..5F..(GCC,MXC,PHL,SA,TH)201111-202110

main31250-BZ130iF653..5F..(LO,STD,VB)..(GEN,IDN,PHL,SA)201111-202110

9004A11249

main9004A-11249

9453100800

main94531-00800

9 parts on this diagram · 2 diagrams in section
