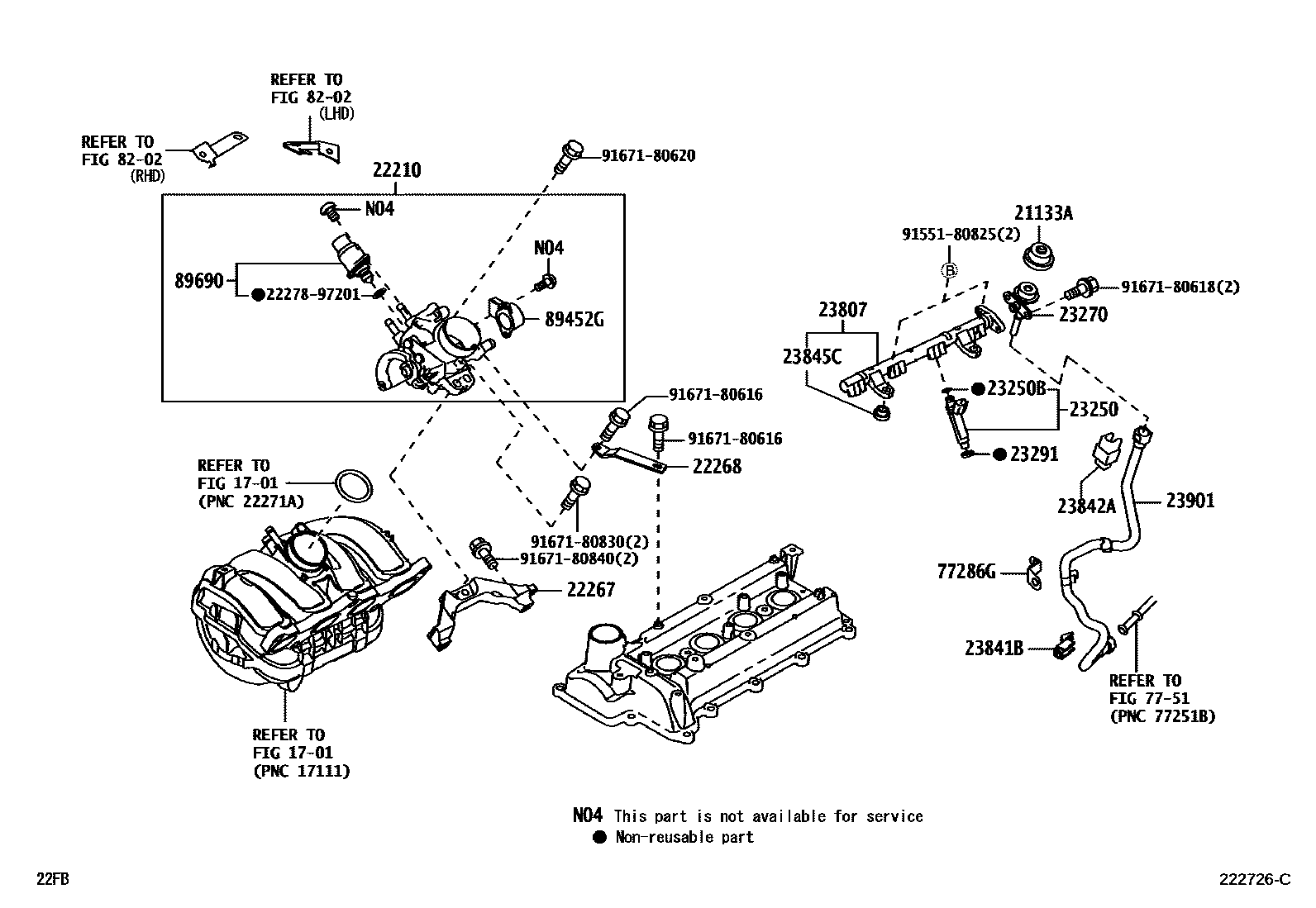

FUEL INJECTION SYSTEM

0001 1 0002 1

1701

21133ACOVER, DUST

main21133-BZ020iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

22210BODY ASSY, THROTTLE

main22210-BZ080iK3VE,3SZVE..F65#..IDN,MA,PHL,TH201111-201310

sub22210-BZ081

main22210-BZ081iK3VE,3SZVE..F651,652..GCC,MA,PHL,TH201310-201508

main22210-BZ090iK3VE,3SZVE..F65#..GEN,MXC,SA201111-201310

sub22210-BZ091

main22210-BZ091iK3VE,3SZVE..F651,652..GEN,MXC,SA201310-201508

22267BRACKET, THROTTLE BODY

main22267-BZ020iK3VE,3SZVE..F65#..IDN201111-201508

22268BRACKET, THROTTLE BODY, NO.2

main22268-BZ010iK3VE,3SZVE..F65#..IDN201111-201508

23250INJECTOR ASSY, FUEL

main23209-BZ050i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-202110

main23250-BZ010iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

23250BRING, O(FOR FUEL INJECTOR)

main90043-01136iK3VE,3SZVE..F65#201111-201507

main90043-01136iK3VE,3SZVE..F651,652201507-201508

LOCAL SOURCED PARTS

main9004A-30055iK3VE,3SZVE..F651,652201507-201508

JAPAN SOURCED PARTS

main90301-07037i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-202110

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-B0010iK3VE,3SZVE..F65#..IDN201111-201508

sub23270-B0030

main23270-B0030i3SZVE..F652..TH201111-201508

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201507-202110

main23291-BZ010iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-BZ030iK3VE,3SZVE..F65#..IDN201111-201508

sub23807-97403

main23807-BZ080i3SZVE..F652..TH201111-201508

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-B1010iK3VE,3SZVE..F65#..IDN201111-201510

main23841-BZ020i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201511-202110

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-B0010iK3VE,3SZVE..F65#..IDN201111-202110

23845CINSULATOR, FUEL PIPE

main23845-BZ010iK3VE,3SZVE..F65#..IDN201111-201508

23901TUBE SUB-ASSY, FUEL

main23901-B0020iK3VE..F651..IDN201111-201508

main23901-B0030i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main23901-BZ030i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

77286GCLAMP, FUEL TUBE, NO.2

main23849-BZ010iF65#..IDN201111-201508

7751

8202

89452GSENSOR, THROTTLE POSITION

main89452-97401iF65#..IDN201111-201508

89690ACTUATOR ASSY, IDLE SPEED CONTROL

main89690-97202iF65#201111-201309

sub89690-B1010

main89690-BZ010iF65#..IDN201310-201508

2227897201GASKET, IDLE SPEED CONTROL VALVE

main22278-97201

9155180825

main91551-80825

9167180616

main91671-80616

9167180618

main91671-80618

9167180620

main91671-80620

9167180830

main91671-80830

9167180840

main91671-80840

26 parts on this diagram · 2 diagrams in section
