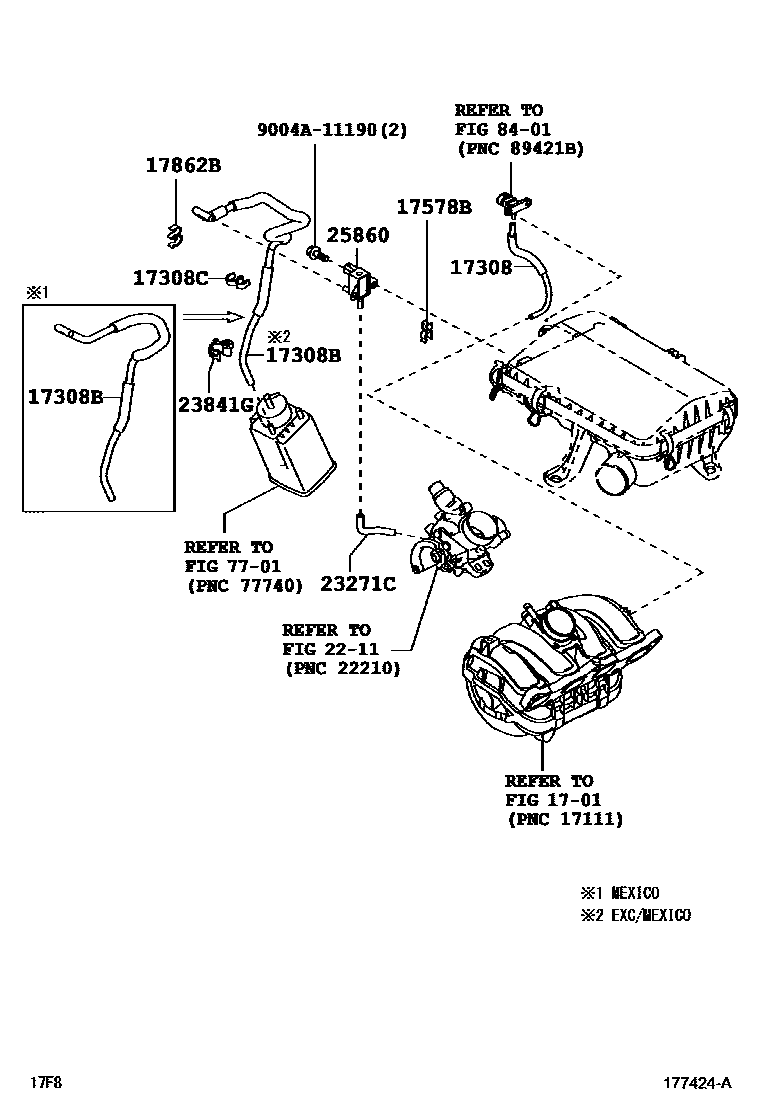

VACUUM PIPING

0001 1 0002 1

1701

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main44750-B0050iK3VE,3SZVE..F65#..IDN201111-201508

17308BHOSE SUB-ASSY, VACUUM

main77795-BZ050iK3VE,3SZVE..F65#..IDN201111-201508

main77795-BZ060iK3VE,3SZVE..F651,652..GEN,SA201111-201508

main77795-BZ090i3SZVE..F652..MXC201112-201508

17308CCLAMP(FOR VACUUM HOSE)

main90044-64797iK3VE,3SZVE..F65#..IDN201111-201508

17578BCLAMP, PIPE

main90044-64774iK3VE,3SZVE..F65#..IDN201111-201508

17862BCLAMP, HOSE

main90044-64773iK3VE,3SZVE..F651,652..GEN,SA201111-201508

2211

23271CHOSE, FUEL

main77754-BZ040iK3VE,3SZVE..F65#..IDN201111-201508

23841GCLAMP, FUEL HOSE

main90044-64759iK3VE,3SZVE..F65#..IDN201111-201508

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main89470-BZ020iK3VE,3SZVE..F65#..IDN201111-201508

sub17650-97207

main9004A-91069i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-202110

7701

8401

9004A11190

main9004A-11190

13 parts on this diagram · 2 diagrams in section
