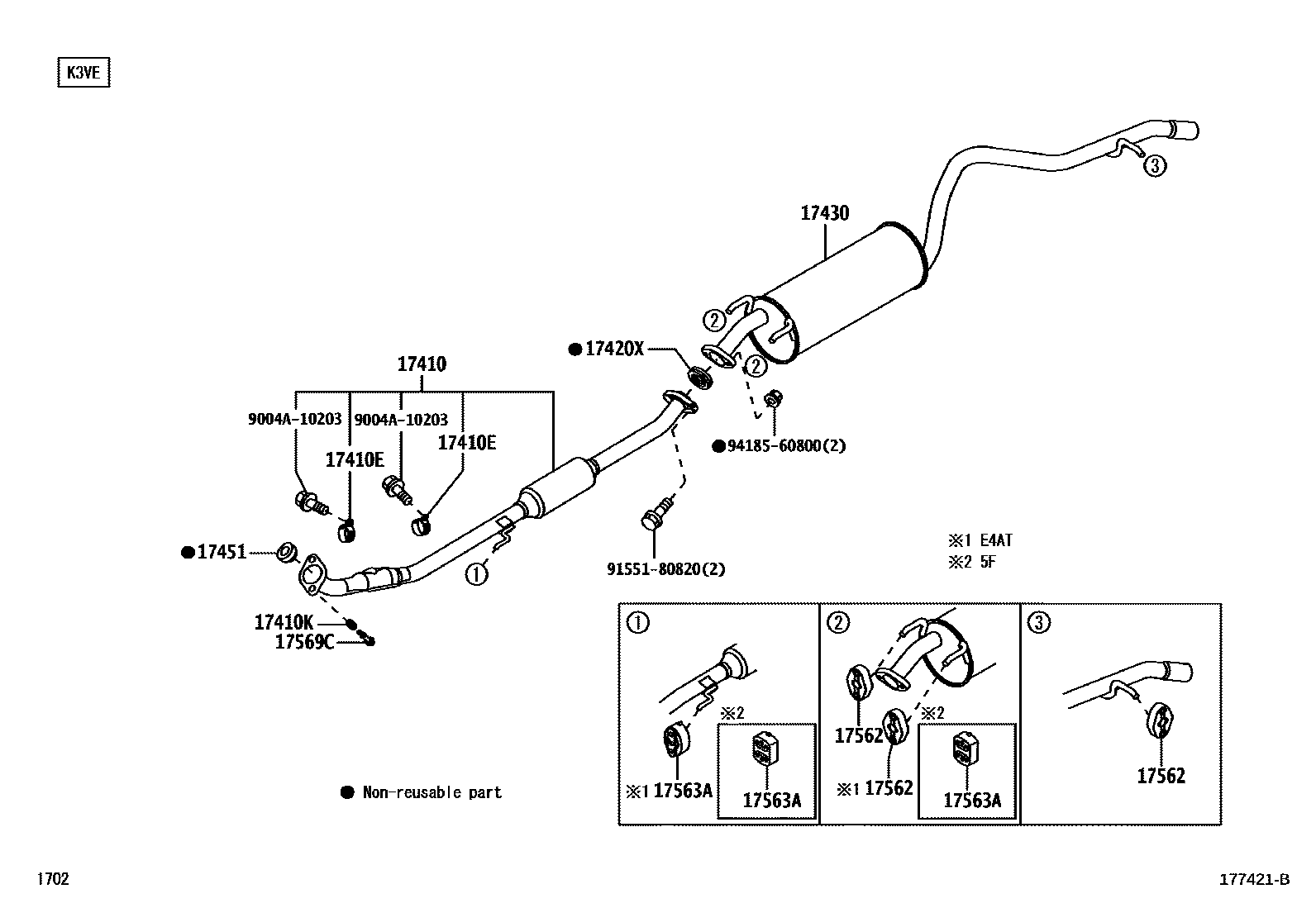

EXHAUST PIPE

0001 1 0002 1 0005 1 0006 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-BZ420iK3VE..F651..IDN201111-201508

main17410-BZ430i3SZVE..F652..GEN,MA,PHL,SA201111-201508

main17410-BZ470i3SZVE..F652..MXC,TH201111-201311

sub17410-BZ610

main17410-BZ610i3SZVE..F652..MXC,TH201312-201508

main17410-BZ620i3SZVE..F652..GCC201404-201508

main17410-BZ640i1NRVE,2NRVE..F65#..GEN,MA,SA201507-201904

ID NO. = 3BZ14,PAINTED=BLACK

main17410-BZ640i1NRVE..F653..MID..IDN;2NRVE..F654..4AT..IDN201810-202110

ID NO. = 3BZ14,RHD GENERAL COUNTRIES,PAINTED=BLACK

main17410-BZ640i2NRVE..F654..MID..PHL;1NRVE..F653..5F..STD..PHL201512-202201

ID NO. = 3BZ14,CAMBODIA/LAOS,PAINTED=BLACK

main17410-BZ640i1NRVE..F653..4AT..PHL201810-202201

ID NO. = 3BZ14,MYANMAR,PAINTED=BLACK

main17410-BZ650i2NRVE..F654..GCC201508-201807

ID NO. = BZ020,PAINTED=BLUE

main17410-BZ650i2NRVE..F654..GCC201801-201807

ID NO. = BZ020,COSTA RICA,PAINTED=BLUE

main17410-BZ830i2NRVE..F654..MID..GEN201807-202201

ID NO. = BZ150,COSTA RICA,PAINTED=YELLOW

main17410-BZ830i1NRVE,2NRVE..F65#..IDN201807-202110

ID NO. = BZ150,PAINTED=YELLOW

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90461-12418iK3VE..F651..GEN,MA,PHL,SA201111-201508

17410KSPRING, EXHAUST PIPE

main17152-B1010i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-202304

main17152-BZ010iK3VE,3SZVE..F65#..IDN201111-201508

sub90501-35028

17420XGASKET, EXHAUST PIPE, CENTER

main17451-BZ010i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201111-202110

17430PIPE ASSY, EXHAUST, TAIL

main17430-BZ290iK3VE,3SZVE..F651,652..GEN,MA,MXC,PHL,SA,TH201111-201508

main17430-BZ330i3SZVE..F652..GCC201404-201508

main17430-BZ340i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-202110

17451GASKET, EXHAUST PIPE

main17451-21030i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201507-202110

main17451-B0010iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

17562SUPPORT, EXHAUST PIPE, NO.2

main17567-87703iK3VE..F651..4AT..IDN201111-201904

17563ASUPPORT, EXHAUST PIPE, NO.3

main17567-BZ030iK3VE..F651..5F..(GEN,MA,PHL,SA);3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202004

sub17567-BZ031

main17567-BZ031i1NRVE,2NRVE..F65#..(MID,SPO)..IDN202005-202110

main17567-BZ040iK3VE..F651..LHD..4AT201111-201508

17569CBOLT, EXHAUST PIPE SUPPORT

main17569-97501i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201507-202110

main90901-05026iK3VE,3SZVE..F65#201111-201507

9004A10203

main9004A-10203

9155180820

main91551-80820

9418560800

main94185-60800

12 parts on this diagram · 4 diagrams in section
