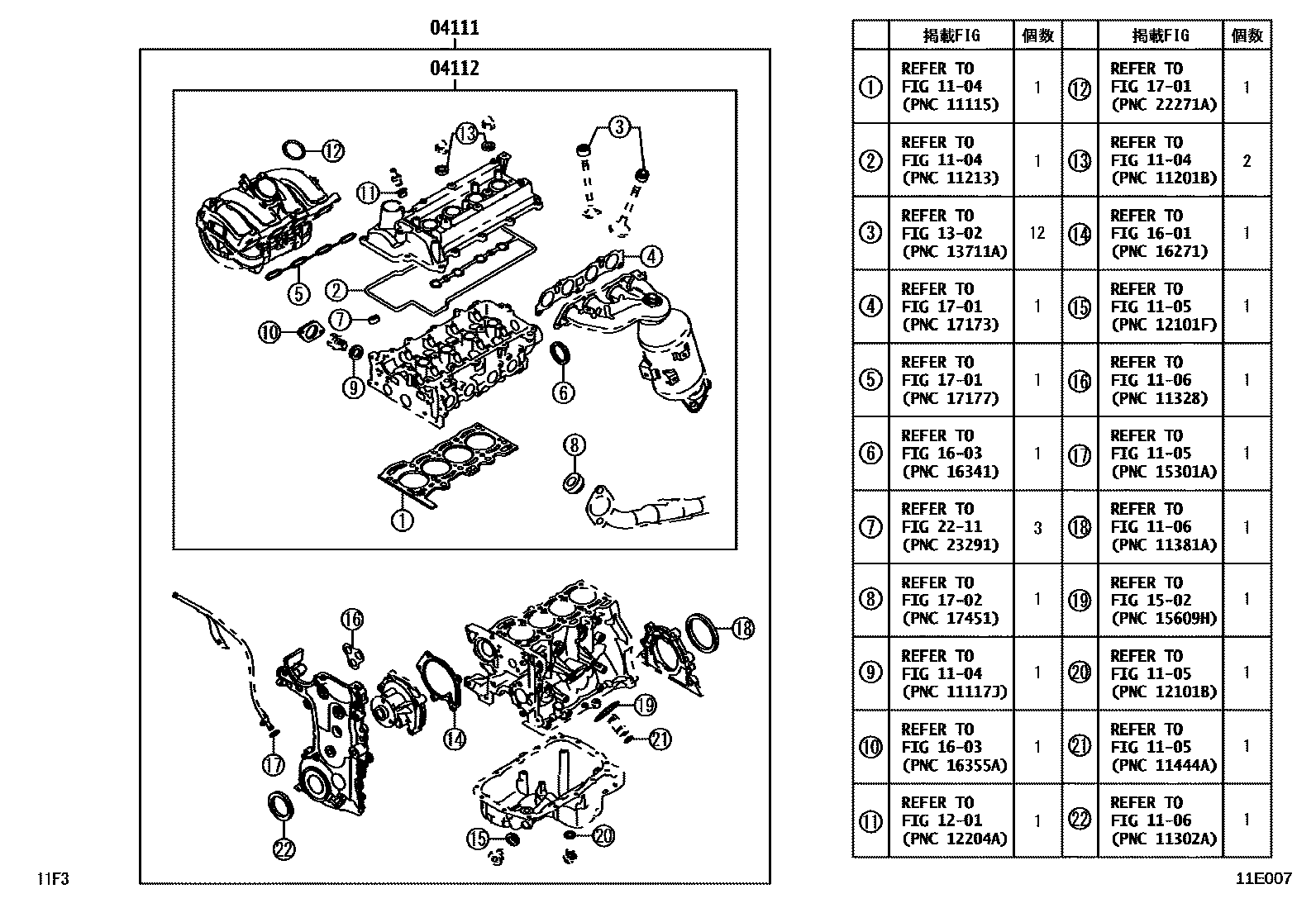

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-BZ101iK3VE..F651;3SZVE..F652..MA,SA;3SZVE..F652..STD..TH;3SZVE..F652..4AT..IDN201111-201112

sub04111-BZ102

main04111-BZ102iK3VE..F651;3SZVE..F652..5F..TH;3SZVE..F652..4AT..IDN;3SZVE..F652..GEN,MA,MXC,SA201112-201311

sub04111-BZ103

main04111-BZ103iK3VE..F651;3SZVE..F652..5F..TH;3SZVE..F652..4AT..IDN;3SZVE..F652..GEN,MA,MXC,SA201311-201408

sub04111-BZ107

main04111-BZ105i3SZVE..F652..5F..(IDN,PHL);3SZVE..F652..4AT..(PHL,TH)201111-201311

sub04111-BZ106

main04111-BZ106i3SZVE..F652..5F..(GCC,IDN,PHL);3SZVE..F652..4AT..(GCC,PHL,TH)201311-201408

sub04111-BZ108

main04111-BZ107iK3VE..F651..IDN;3SZVE..F652..4AT..IDN201408-201508

sub04111-BZ109

main04111-BZ108i3SZVE..F652..5F..(GCC,PHL);3SZVE..F652..4AT..(GCC,PHL,TH)201408-201508

main04111-BZ125i1NRVE,2NRVE..F653,654201507-201508

sub04111-BZ126

main04111-BZ126i1NRVE,2NRVE..F65#201508-201510

sub04111-BZ127

main04111-BZ127i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201510-202110

04112GASKET KIT, ENGINE VALVE GRIND

main04112-BZ101iK3VE..F651;3SZVE..F652..MA,SA;3SZVE..F652..STD..TH;3SZVE..F652..4AT..IDN201111-201112

sub04112-BZ102

main04112-BZ102iK3VE..F651..IDN;3SZVE..F652..4AT..IDN201112-201508

main04112-BZ105i3SZVE..F652..5F..IDN201111-201508

main04112-BZ125i1NRVE,2NRVE..F653,654201507-201508

sub04112-BZ126

main04112-BZ126i1NRVE,2NRVE..F65#201508-201510

sub04112-BZ127

main04112-BZ127i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201510-202110

1104

1105

1106

1201

1302

1502

1601

1603

1701

1702

2211

13 parts on this diagram · 2 diagrams in section
