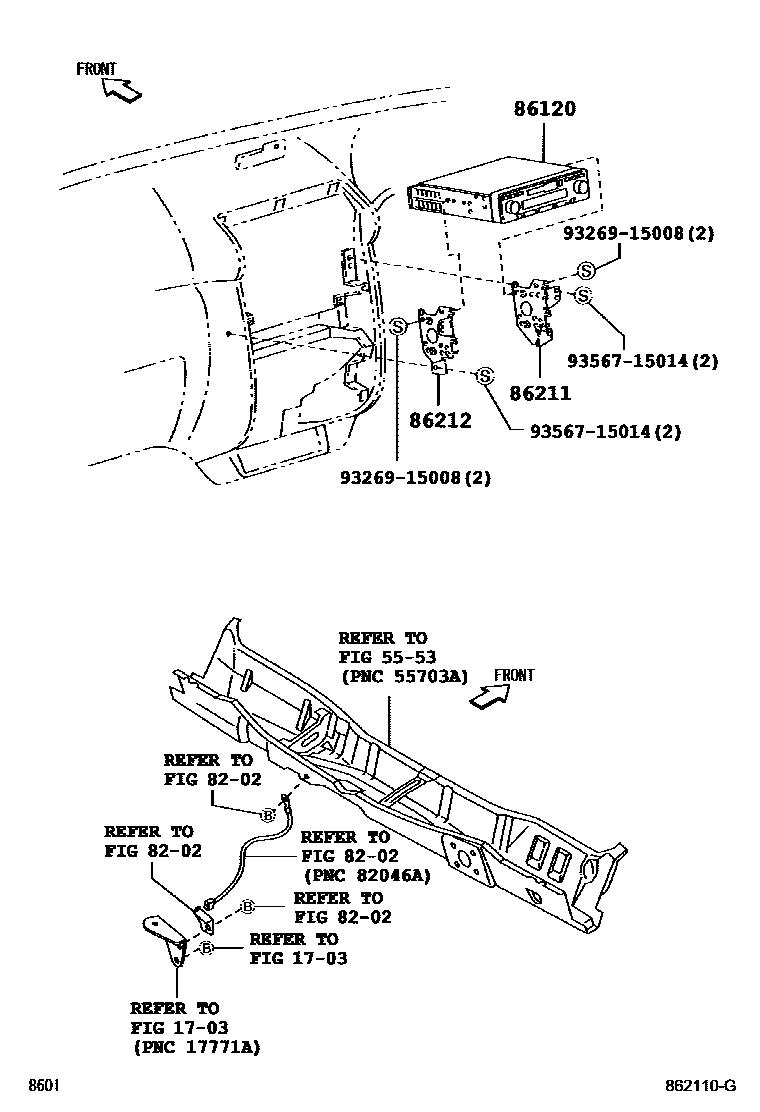

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0004 1 0005 1 0007 1L/AUDIO

1703

5553

8202

86120RECEIVER ASSY, RADIO

main86120-BZ020iF601..BRU,IDN,TH200312-200608

PIONEER

main86120-BZ120iF601..DLX..GEN;F60#..(E,G,J,XI)..(IDN,PHL)200608

FUJITSU TEN

86211BRACKET, RADIO, NO.1

main86211-BZ010iF601..4AT200608-200911

86212BRACKET, RADIO, NO.2

main86212-BZ010iF601..E,G,GL,S200312-200608

9326915008

main93269-15008

9356715014

main93567-15014

8 parts on this diagram · 5 diagrams in section
