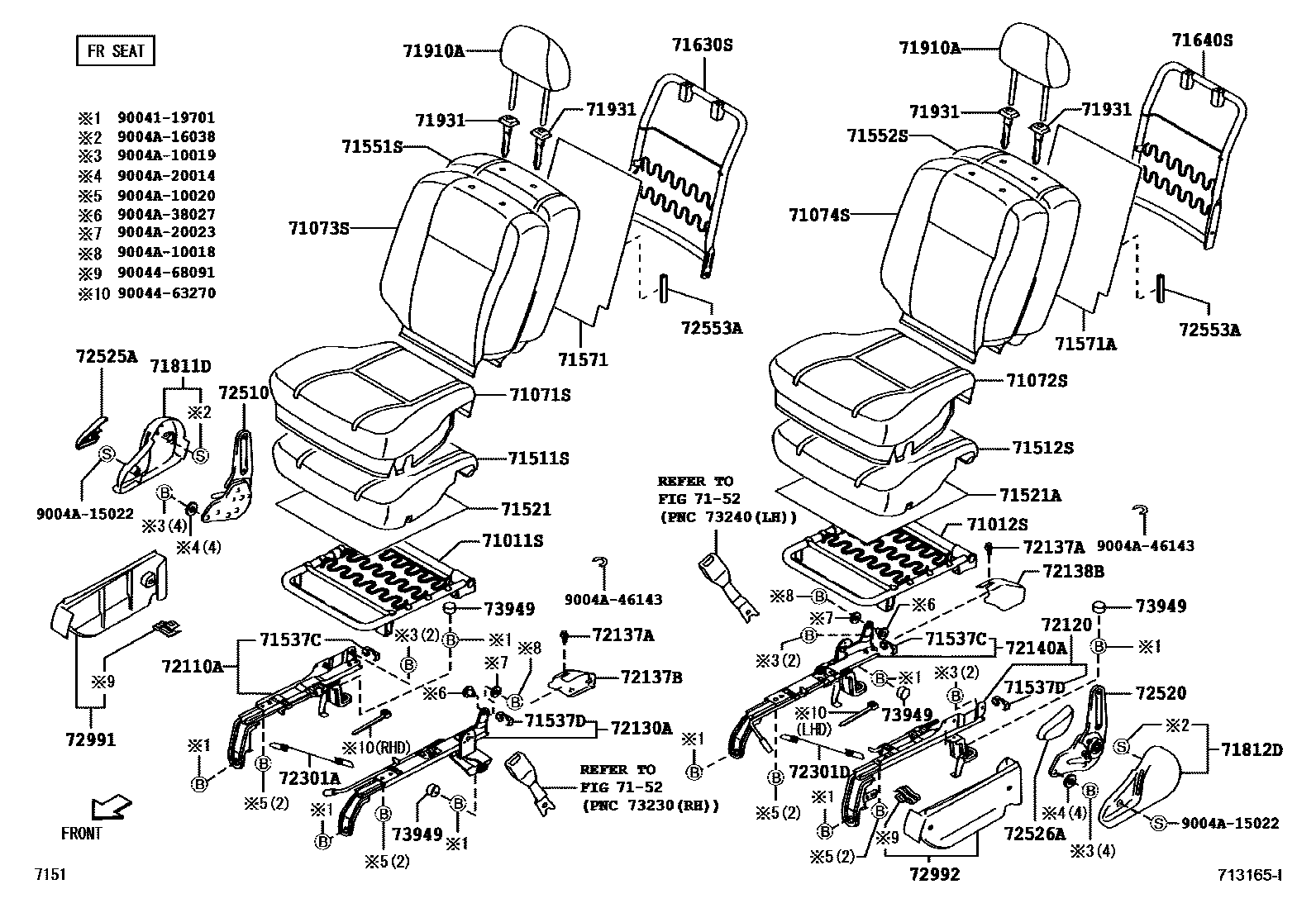

SEAT & SEAT TRACK

0001 1FRONT SEAT 0002 1FRONT SEAT 0003 1REAR NO.1 SEAT (SEPARATE TYPE0004 1REAR NO.1 SEAT (SEPARATE TYPE0005 1REAR NO.2 SEAT (BENCH TYPE) 0006 1REAR NO.2 SEAT (BENCH TYPE) 0007 1REAR NO.2 SEAT (BENCH TYPE) 0008 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-BZ010iF601..BRU,IDN,TH200312-200608

main71011-BZ020iF601..4AT200410-200911

main71011-BZ040iF601..DLX..GEN;F602..GEN,IDN,MXC,PHL,TH;F601..(CTM,E,G,J,XI)..(GEN,IDN,PHL,SA)200608

main71011-BZ060iF60#..(DLX,GL,STD)..SA200608

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-BZ010iF601..BRU,IDN,TH200312-200608

main71012-BZ020iF602..MA;F601..5F..MA200410-200911

main71012-BZ030iF601..DLX..GEN;F602..GEN,IDN,MXC,PHL,TH;F601..(CTM,E,G,J,XI)..(GEN,IDN,PHL,SA)200608

main71012-BZ040iF60#..(DLX,GL,STD)..SA200608

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-BZ020-B0iF601..(E,G,GL)..(BRU,IDN,TH)200312-200608

GRAY,TRIM1#

main71071-BZ030-B0iF601..S200408-200608

GRAY,TRIM1#

main71071-BZ060-B1iF601..MA200410-200608

BLACK,TRIM1#

main71071-BZ080-C0iF601..LIMD200412-200608

BLACK,TRIM1#

main71071-BZ160-B0iF601..LHD200608

GRAY,TRIM1#

main71071-BZ180-A0iF60#..(E,G,GL)..(GEN,IDN,MXC,PHL)200608-200810

IVORY,TRIM0#

main71071-BZ190-A0iF602..S..(GEN,IDN)200608-200810

IVORY,TRIM0#

main71071-BZ200-C0iF602..S..TH200610

BLACK,TRIM1#

main71071-BZ210-A0iF60#..MA200609-200811

IVORY,TRIM0#

main71071-BZ220-A0iF60#..(DLX,E,GL,J,STD)..(SA,TH)200608-200810

IVORY,TRIM0#

main71071-BZ540-B0iF601..CTM200706

GRAY,TRIM1#

main71071-BZ670-E0iF60#..(E,G,GL,XI)..(GEN,IDN,MXC,PHL)200810

GREGE,TRIM4#

main71071-BZ680-E0iF602..(E,J)..TH200810

GREGE,TRIM4#

main71071-BZ690-E0iF602..MA;F601..5F..MA200811-201011

GREGE,TRIM4#

main71071-BZ700-E0iF602..S..(GEN,IDN)200810

GREGE,TRIM4#

main71071-BZC30-C0iF602..MA;F601..5F..MA201011

BLACK,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-BZ020-B0iF601..(E,G,GL)..(BRU,IDN,TH)200312-200608

GRAY,TRIM1#

main71072-BZ030-B0iF601..S200408-200608

GRAY,TRIM1#

main71072-BZ060-B0iF601..MA200410-200608

BLACK,TRIM1#

main71072-BZ100-C0iF601..LIMD200412-200608

BLACK,TRIM1#

main71072-BZ170-B0iF601..CTM200706

GRAY,TRIM1#

main71072-BZ190-A0iF602..LHD200610-200810

IVORY,TRIM0#

main71072-BZ200-A0iF602..S..(GEN,IDN)200608-200810

IVORY,TRIM0#

main71072-BZ210-C0iF602..S..TH200610

BLACK,TRIM1#

main71072-BZ220-A0iF60#..MA200609-200811

IVORY,TRIM0#

main71072-BZ230-A0iF60#..RHD..(DLX,E,G,GL,J,STD)..(GEN,IDN,SA,TH)200608-200810

IVORY,TRIM0#

main71072-BZ350-B0iF601..LHD200608

GRAY,TRIM1#

main71072-BZ660-E0iF60#..RHD..(E,G,J,XI)..(GEN,IDN,TH)200810

GREGE,TRIM4#

main71072-BZ670-E0iF602..MA;F601..5F..MA200811-201011

GREGE,TRIM4#

main71072-BZ680-E0iF602..LHD200810

GREGE,TRIM4#

main71072-BZ690-E0iF602..S..(GEN,IDN)200810

GREGE,TRIM4#

main71072-BZC40-C0iF602..MA;F601..5F..MA201011

BLACK,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-BZ020-B0iF601..(E,G,GL)..(BRU,IDN,TH)200312-200608

GRAY,TRIM1#

main71073-BZ030-B0iF601..S200408-200608

GRAY,TRIM1#

main71073-BZ060-B0iF601..MA200410-200608

BLACK,TRIM1#

main71073-BZ100-C0iF601..LIMD200412-200608

BLACK,TRIM1#

main71073-BZ200-B0iF601..CTM,J;F601..DLX..GEN200608

GRAY,TRIM1#

main71073-BZ220-A0iF601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main71073-BZ230-A0iF602..S..(GEN,IDN)200608-200810

IVORY,TRIM0#

main71073-BZ240-C0iF60#..(DLX,GL,STD)..SA200610

BLACK,TRIM1#

main71073-BZ250-A0iF60#..MA200609-200811

IVORY,TRIM0#

main71073-BZ740-E0iF601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main71073-BZ750-E0iF601..4AT200811-201011

GREGE,TRIM4#

main71073-BZ760-E0iF602..S..(GEN,IDN)200810

GREGE,TRIM4#

main71073-BZC60-C0iF602..MA;F601..5F..MA201011

BLACK,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-BZ020-B0iF601..(E,G,GL)..(BRU,IDN,TH)200312-200608

GRAY,TRIM1#

main71074-BZ030-B0iF601..S200408-200608

GRAY,TRIM1#

main71074-BZ060-B0iF601..MA200410-200608

BLACK,TRIM1#

main71074-BZ090-C0iF601..LIMD200412-200608

BLACK,TRIM1#

main71074-BZ150-B0iF601..CTM,J;F601..DLX..GEN200608

GRAY,TRIM1#

main71074-BZ170-A0iF601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main71074-BZ180-A0iF602..S..(GEN,IDN)200608-200810

IVORY,TRIM0#

main71074-BZ190-C0iF602..S..TH200610

BLACK,TRIM1#

main71074-BZ200-A0iF60#..MA200609-200811

IVORY,TRIM0#

main71074-BZ600-E0iF601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main71074-BZ610-E0iF601..4AT200811-201011

GREGE,TRIM4#

main71074-BZ620-E0iF602..S..(GEN,IDN)200810

GREGE,TRIM4#

main71074-BZ890-C0iF602..MA;F601..5F..MA201011

BLACK,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-BZ010iF60#..GEN,IDN,MXC,PHL,SA,TH200312-200608

main71501-BZ030iF601..MA200410-200911

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-BZ010iF601..BRU,IDN,TH200312-200608

main71502-BZ030iF602..MA;F601..5F..MA200410-200911

7152

71521PAD, FRONT SEAT CUSHION SILENCER, A

main71521-BZ010iF601..(E,G,GL,LIMD)..(BRU,IDN,TH)200312-200608

main71521-BZ020iF601..4AT200410-200911

71521APAD,FRONT SEAT CUSHION SILENCER

main71521-BZ010iF60#..GEN,IDN,MXC,PHL,SA,TH200312-200608

main71521-BZ020iF601..MA200410-200911

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-BZ010iF601..4AT200312-201011

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71537-BZ010iF602..MA;F601..5F..MA200312-201011

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-BZ010iF601..BRU,IDN,TH200312-200608

main71505-BZ030iF601..MA200410-200911

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71506-BZ010iF601..BRU,IDN,TH200312-200608

main71506-BZ020iF601..MA200410-200911

71571PAD, FRONT SEATBACK SILENCER, A

main71571-BZ010iF60#..GEN,IDN,MXC,PHL,SA,TH200312-200608

main71571-BZ020iF602..MA;F601..5F..MA200410-200911

71571APAD, FRONT SEATBACK SILENCER, LH

main71571-BZ010iF60#..GEN,IDN,MXC,PHL,SA,TH200312-200608

main71571-BZ020iF602..MA;F601..5F..MA200410-200911

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-BZ010iF601..BRU,IDN,TH200312-200608

main71630-BZ020iF601..MA200410-200911

main71630-BZ030iF60#..(DLX,GL,STD)..SA200608

main71630-BZ050iF601..DLX..GEN;F602..GEN,IDN,MXC,PHL,TH;F601..(CTM,E,G,J,XI)..(GEN,IDN,PHL,SA)200608

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-BZ010iF601..BRU,IDN,TH200312-200608

main71640-BZ020iF601..MA200410-200911

main71640-BZ030iF60#..(DLX,GL,STD)..SA200608

main71640-BZ050iF601..DLX..GEN;F602..GEN,IDN,MXC,PHL,TH;F601..(CTM,E,G,J,XI)..(GEN,IDN,PHL,SA)200608

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main71811-BZ010-B0iF601..CTM,J;F602..S..TH;F601..DLX..GEN200312-200608

DK.GRAY,TRIM1#

main71811-BZ010-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main71811-BZ020-A0iF60#..MA200609-200811

IVORY,TRIM0#

main71811-BZ020-B0iF602..MA;F601..5F..MA200410-200608

DK.GRAY,TRIM1#

main71811-BZ020-E0iF602..MA;F601..5F..MA200811-201011

GREGE,TRIM4#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main71812-BZ010-B0iF601..BRU,IDN,TH200312-200608

DK.GRAY,TRIM1#

main71812-BZ010-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main71812-BZ020-A0iF60#..MA200609-200811

IVORY,TRIM0#

main71812-BZ020-B0iF602..MA;F601..5F..MA200410-200608

DK.GRAY,TRIM1#

main71812-BZ020-E0iF601..4AT200811-201011

GREGE,TRIM4#

71910AHEADREST ASSY, FRONT SEAT

main71910-BZ020-B0iF601..(E,G,GL)..(BRU,IDN,TH)200312-200608

GRAY,TRIM1#

main71910-BZ030-B0iF601..S200408-200608

DARK GRAY,TRIM1#

main71910-BZ060-B0iF601..MA200410-200608

GRAY,TRIM1#

main71910-BZ080-C1iF601..LIMD200412-200608

BLACK,TRIM1#

main71910-BZ100-B0iF601..LHD200608

GRAY,TRIM1#

main71910-BZ140-A0iF601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200608-200810

IVORY,TRIM0#

main71910-BZ150-A0iF602..S..(GEN,IDN)200608-200810

IVORY,TRIM0#

main71910-BZ160-A0iF60#..MA200609-200811

IVORY,TRIM0#

main71910-BZ170-C0iF602..S..TH200610

DARK GRAY,TRIM1#

main71910-BZ180-A0iF60#..(DLX,GL,STD)..SA200608-200810

IVORY,TRIM0#

main71910-BZ430-B0iF601..CTM200706

GRAY,TRIM1#

main71910-BZ560-C0iF60#..(DLX,GL,STD)..SA200810

DARK GRAY,TRIM1#

main71910-BZ580-E0iF601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main71910-BZ590-E0iF602..MA;F601..5F..MA200811-201011

GREGE,TRIM4#

main71910-BZ600-E0iF602..S..(GEN,IDN)200810

GREGE,TRIM4#

main71910-BZA20-C0iF602..MA;F601..5F..MA201011

DARK GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-87Z03-A0iF60#..MA200609-200811

W(LOCK),IVORY,TRIM0#

main71930-87Z03-B0iF602..MA;F601..5F..MA200410-200608

W(LOCK),DK.GRAY,TRIM1#

main71930-87Z03-E0iF601..4AT200811-201011

W(LOCK),GREGE,TRIM4#,LH

main71930-87Z05-B0iF601..BRU,IDN,TH200312-200608

W(LOCK),DK.GRAY,TRIM1#

main71930-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

W(LOCK),IVORY,TRIM0#

main71930-BZ010-B0iF60#..(DLX,GL,STD)..SA200608

W(LOCK),DK.GRAY,TRIM1#

main71930-BZ010-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

W(LOCK),GREGE,TRIM4#

main71931-87Z03-A0iF60#..MA200609-200811

W/O(LOCK),IVORY,TRIM0#

main71931-87Z03-B0iF602..MA;F601..5F..MA200410-200608

W/O(LOCK),DK.GRAY,TRIM1#

main71931-87Z03-E0iF601..4AT200811-201011

W/O(LOCK),GREGE,TRIM4#,RH

main71931-87Z04-B0iF601..BRU,IDN,TH200312-200608

W/O(LOCK),DK.GRAY,TRIM1#

main71931-BZ020-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

W/O(LOCK),IVORY,TRIM0#

main71931-BZ020-B0iF60#..(DLX,GL,STD)..SA200608

W/O(LOCK),DK.GRAY,TRIM1#

main71931-BZ020-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

W/O(LOCK),GREGE,TRIM4#

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-BZ010iF601200312-200608

main72110-BZ050iF602..MA,SA,TH;F601..5F..(MA,SA)200608-200911

72120TRACK ASSY, FRONT SEAT, OUTER LH

main72120-BZ010iF601200312-200911

main72120-BZ040iF601..CTM,J;F60#..LHD..(DLX,G,GL)200608

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-BZ010iF601200312-200911

72137ACLIP (FOR SEAT TRACK COVER)

main90467-07191iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200802-200810

main90467-07191-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200811

IVORY,TRIM0#

sub90467-07191

main90467-07191-B2iF602..MA;F601..5F..MA200312-200802

DK.GRAY,TRIM1#

sub90467-07191

main90467-07191-E2iF601..4AT200810-201011

GREGE,TRIM4#

sub90467-07191

72137BCOVER, SEAT TRACK, RH

main72157-BZ010iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200802-200810

main72157-BZ010-A0iF60#..MA200608-200811

IVORY,TRIM0#

main72157-BZ010-B0iF601..CTM,J;F602..S..TH;F601..DLX..GEN200312-200802

DK.GRAY,TRIM1#

main72157-BZ010-E0iF601..4AT200810-201011

GREGE,TRIM4#

72138BCOVER, SEAT TRACK, LH

main72158-BZ010iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200802-200810

main72158-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200811

IVORY,TRIM0#

main72158-BZ010-B0iF601..CTM,J;F602..S..TH;F601..DLX..GEN200312-200802

DK.GRAY,TRIM1#

main72158-BZ010-E0iF601..4AT200810-201011

GREGE,TRIM4#

72140ATRACK ASSY, FRONT SEAT,INNER LH

main72140-BZ010iF601..4AT200312-200911

72301AWIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

main72301-BZ010iF60#..GEN,IDN,MXC,PHL,SA,TH200312-200608

main72301-BZ020iF602..MA;F601..5F..MA200410-201011

72301DWIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

main72301-BZ010iF60#..GEN,IDN,MXC,PHL,SA,TH200312-200608

main72301-BZ020iF601..MA200410-201011

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-BZ010iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200312-200811

sub72510-BZ040

main72510-BZ040iF602..LHD..G;F602..DLX,E,GL,J,S;F601..GEN,IDN,PHL,SA200602-200911

72520ADJUSTER ASSY, RECLINING SEATBACK, LH

main72520-BZ010iF601200312-200811

sub72520-BZ040

main72520-BZ040iF601..4AT200602-200911

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main72525-BZ010-B0iF60#..(DLX,GL,STD)..SA200312-200608

DK.GRAY,TRIM1#

main72525-BZ010-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main72525-BZ020-A0iF60#..MA200609-200811

IVORY,TRIM0#

main72525-BZ020-B0iF601..MA200410-200608

DK.GRAY,TRIM1#

main72525-BZ020-E0iF601..4AT200811-201011

GREGE,TRIM4#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main72526-BZ010-B0iF601..CTM,J;F602..S..TH;F601..DLX..GEN200312-200608

DK.GRAY,TRIM1#

main72526-BZ010-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main72526-BZ020-A0iF60#..MA200609-200811

IVORY,TRIM0#

main72526-BZ020-B0iF601..MA200410-200608

DK.GRAY,TRIM1#

main72526-BZ020-E0iF601..4AT200811-201011

GREGE,TRIM4#

72553APROTECTOR, RECLINING COVER, RH

main72565-BZ010iF60#..(DLX,GL,STD)..SA200608

72991COVER, FRONT SEAT CUSHION, RH

main72991-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main72991-BZ010-B0iF601..BRU,IDN,TH200312-200608

DK.GRAY,TRIM1#

main72991-BZ010-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main72991-BZ020-A0iF60#..MA200609-200811

IVORY,TRIM0#

main72991-BZ020-B0iF602..MA;F601..5F..MA200410-200608

DK.GRAY,TRIM1#

main72991-BZ020-E0iF601..4AT200811-201011

GREGE,TRIM4#

72992COVER, FRONT SEAT CUSHION, LH

main72992-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main72992-BZ010-B0iF601..CTM,J;F602..S..TH;F601..DLX..GEN200312-200608

DK.GRAY,TRIM1#

main72992-BZ010-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main72992-BZ020-A0iF60#..MA200609-200811

IVORY,TRIM0#

main72992-BZ020-B0iF602..MA;F601..5F..MA200410-200608

DK.GRAY,TRIM1#

main72992-BZ020-E0iF602..MA;F601..5F..MA200811-201011

GREGE,TRIM4#

73949CAP

main73949-87502iF601200312-200911

main73949-BZ050iF60#..GEN,IDN,MXC,PHL,SA,TH200802

9004119701

main90041-19701

9004463270

main90044-63270

9004468091

main90044-68091

9004A10018

main9004A-10018

9004A10019

main9004A-10019

9004A10020

main9004A-10020

9004A15022

main9004A-15022

9004A16038

main9004A-16038

9004A20014

main9004A-20014

9004A20023

main9004A-20023

9004A38027

main9004A-38027

9004A46143

main9004A-46143

52 parts on this diagram · 8 diagrams in section
