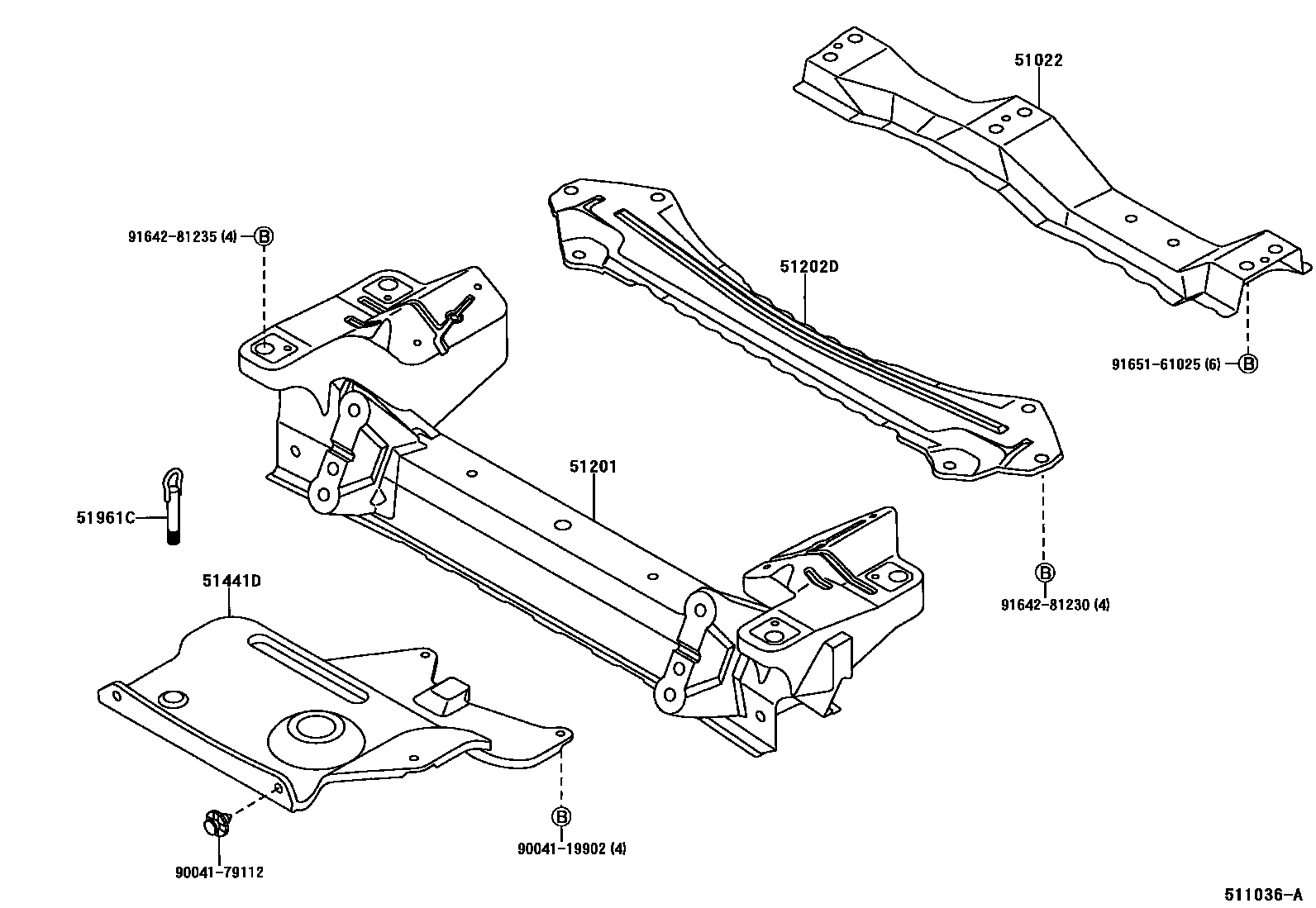

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51022MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main51022-BZ010iF601200312-200608

main51022-BZ011iF601..4AT200608-200911

main51022-BZ060iF602..MA200608

main51022-BZ100iF601..4AT..G;F601..G..GEN;F601..CTM,DLX,J,STD,XI201104

main51022-BZ110iF601..5F..IDN;F602..GEN,IDN,MXC,PHL,SA,TH201104

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51210-BZ010iF601200312-200608

main51210-BZ110iF60#..GEN,IDN,MXC,PHL,SA,TH201104

main51210-BZ902iF60#..GEN,IDN,MXC,PHL,SA,TH200608-201104

51202DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-BZ010iF601..5F200312-200608

main51202-BZ011iF60#..5F..(GEN,IDN,MXC,PHL,SA,TH)200608-201104

main51202-BZ020iF601..4AT200404-200608

main51202-BZ021iF60#..4AT..(GEN,IDN,MXC,PHL,TH)200608-201104

main51202-BZ120iF60#..5F..(GEN,IDN,MXC,PHL,SA,TH)201104

main51202-BZ130iF60#..4AT..(GEN,IDN,MXC,PHL,TH)201104

51441COVER, ENGINE UNDER, NO.1

main51441-BZ050iF602..DLX,E,GL,J200608-200811

51441DCOVER, ENGINE UNDER

main51441-BZ010iF601..G..GEN;F601..5F..(IDN,MA,PHL,SA)200608

main51441-BZ020iF601..4AT200608-200911

main51441-BZ050iF602..(DLX,E,GL,J)..(MXC,SA,TH)200811

51961CHOOK, FRONT

main51960-BZ020iF601200312-200608

9004119902

main90041-19902

9004179112

main90041-79112

9164281230

main91642-81230

9164281235

main91642-81235

9165161025

main91651-61025

11 parts on this diagram · 3 diagrams in section
