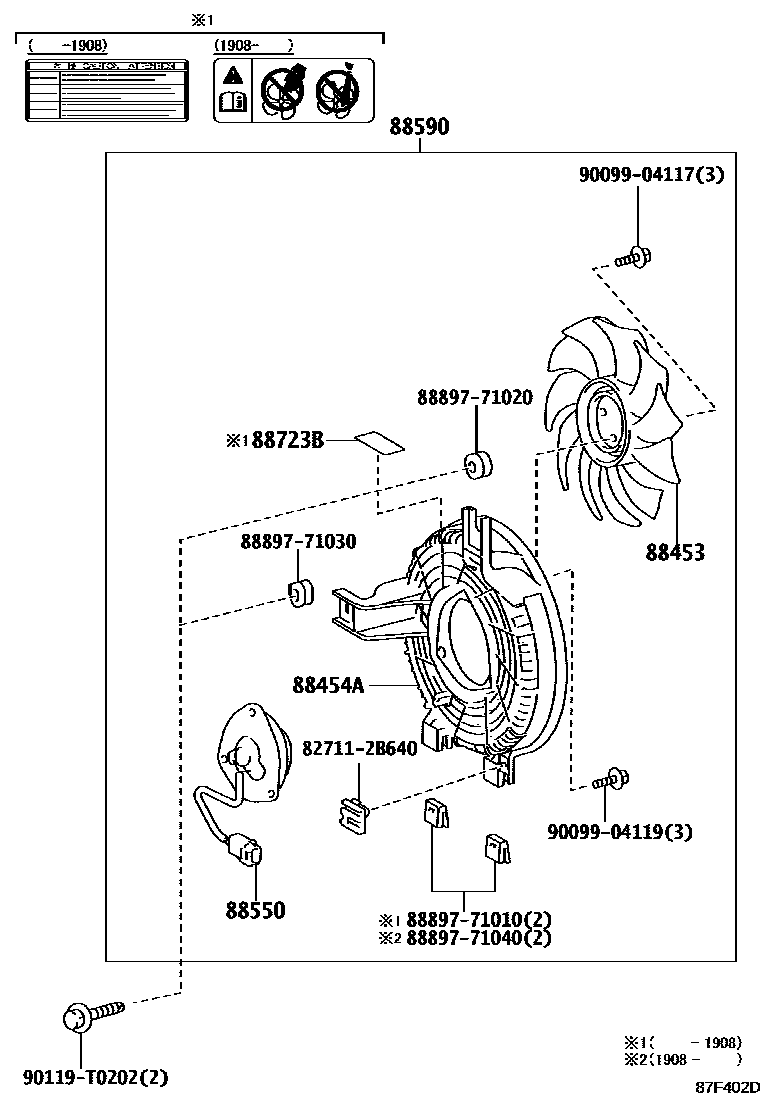

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1W(CONDENSER FAN) 0003 1FRONT 0005 1FRONT 0006 1FRONT 0007 1FRONT 0011 1FRONT 0016 1FRONT 0017 1FRONT 0018 1FRONT 0019 1FRONT 0020 1FRONT 0023 1FRONT 0025 1FRONT 0027 1FRONT 0029 1FRONT 0031 1FRONT 0033 1FRONT 0034 1FRONT 0035 1FRONT 0036 1FRONT 0037 1FRONT 0038 1REAR 0044 1REAR

88453FAN, COOLING (FOR CONDENSER)

main88453-60010supersedes 88453-60010iTGN141..6FC..27..GCC201511-202008

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

88454ASHROUD, FAN

main88454-0K040supersedes 88454-0K040iTGN141..5F..27G..GCC201511-201807

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12160supersedes 88550-12160iTGN141..GCC202009-202304

88590BLOWER ASSY, W/SHROUD

main88590-0K050supersedes 88590-0K050iTGN141..5F..27G..GCC201511-201807

main88590-0K051iTGN141..GCC201908-202008

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

88723BLABEL, COOLER SERVICE CAUTION

main16793-31070iTGN141..GCC201908-202008

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88723-20081supersedes 88723-20081iTGN141..6FC..27..GCC201511-201908

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8889771010VALVE, COOLER MAGNET

main88897-71010

8889771020VALVE, COOLER MAGNET

main88897-71020

8889771030VALVE, COOLER MAGNET

main88897-71030

8889771040VALVE, COOLER MAGNET

main88897-71040

9009904117

main90099-04117

9009904119

main90099-04119

90119T0202

main90119-T0202

13 parts on this diagram · 23 diagrams in section
