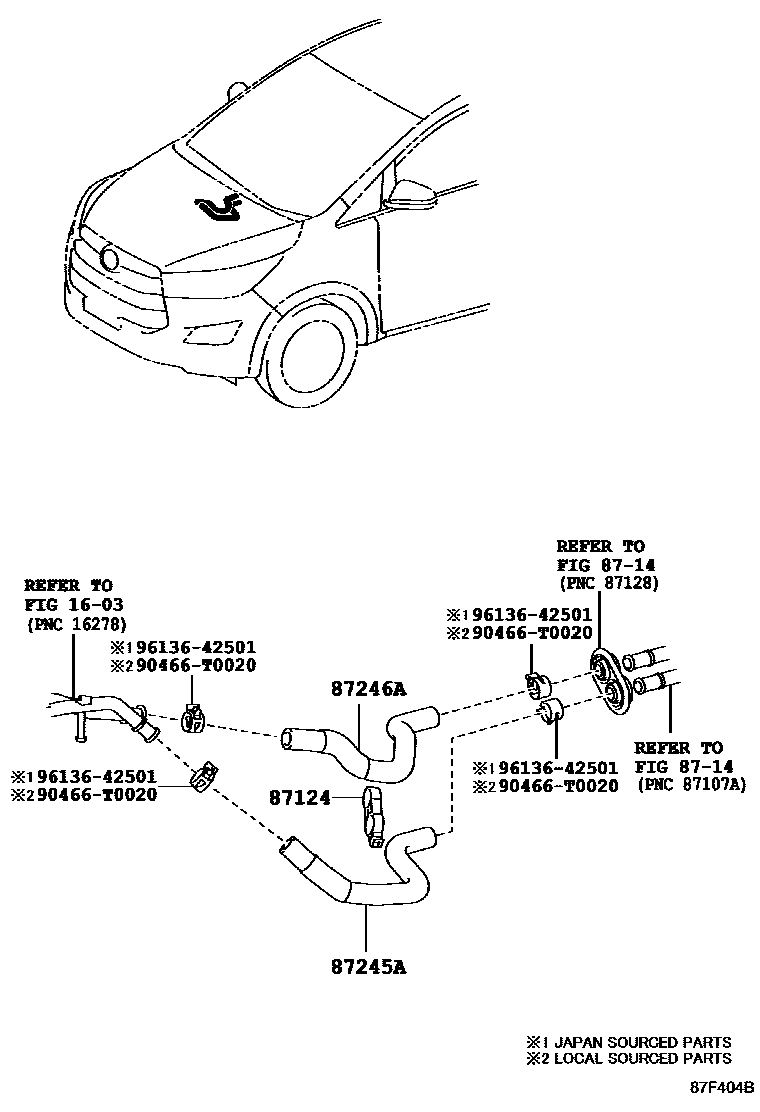

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0004 1 0006 1

1603

87124CLAMP, HEATER

main87124-0K170iGUN142..MA202101-202108

main87124-0K280iGUN143..PHLP..(28G,28V)201604-202102

main87124-0K290iGUN142..RHD..IDNP..(24V,N);GUN143..IDNP..(28,28V)..PHL202009

main87124-0K300iGUN142..(6F,6FC)..IND202011-202301

8714

87245AHOSE, HEATER WATER, INLET A

main87245-0KA60iGUN142..(24Q,24V)..IDN;GUN14#..IDNP..(24,24G,24V,28G,28V)..(GCC,PHL,SA,TH)201511-201609

main87245-0KA61iGUN142..RHD..IDNP..(24V,N);GUN143..IDNP..(28,28V)..PHL202009

main87245-0KA70iTGN14#..LHD..IDNP..(20,20G,27,G,SRV)202009-202304

main87245-0KB20iTGN140..VN201607-202009

main87245-0KB40iTGN141..IND201607-202010

main87245-0KB82iGUN142..MA202101-202108

main87245-0KC80iTGN140..20Q202009

main87245-0KD70iTGN140..(20G,20V)..MA201611-202012

main87245-0KD80iTGN140..PHLP..20202102-202108

main87245-0KK90iGUN143..PHLP..(28G,28V)201604-201708

main87245-0KK91iGUN143..PHLP..(28G,28V)201709-202102

main87245-0KL30iGUN14#..IND201604-201712

main87245-0KL31iGUN142..(6F,6FC)..IND202011-202301

87246AHOSE, HEATER WATER, OUTLET A

main87245-0K810iTGN140..20Q202009

main87245-0K850iTGN141..IND202011-202301

main87245-0KA80iTGN14#..LHD..IDNP..(20G,27,27G,27SR,27SRV)201511-202008

main87245-0KB30iTGN140..VN201607-202009

main87245-0KB91iGUN142..MA202101-202108

main87245-0KD60iTGN140..(20G,20V)..MA201611-202012

main87245-0KD90iTGN140..PHLP..20202102-202108

main87245-0KE30iGUN142..(24Q,24V)..IDN;GUN14#..IDNP..(24,24G,24V,28G,28V)..(GCC,PHL,SA,TH)201511-201609

main87245-0KE31iGUN142..RHD..IDNP..(24V,N);GUN143..IDNP..(28,28V)..PHL202009

main87245-0KE50iGUN14#..IND201604-201712

main87245-0KE51iGUN142..5F..IND202011

main87245-0KL00iGUN143..PHLP..(28G,28V)201604-201708

main87245-0KL01iGUN143..PHLP..(28G,28V)201709-202102

90466T0020

main90466-T0020

9613642501

main96136-42501

7 parts on this diagram · 3 diagrams in section
