HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT MANUAL COOLER 0003 1FRONT MANUAL COOLER 0005 1FRONT MANUAL HEATER 0007 1FRONT MANUAL AIR CONDITIONER 0009 1FRONT MANUAL AIR CONDITIONER 0014 1FRONT MANUAL AIR CONDITIONER 0015 1FRONT MANUAL AIR CONDITIONER 0016 1FRONT MANUAL AIR CONDITIONER 0018 1FRONT AUTO AIR CONDITIONER 0021 1FRONT AUTO AIR CONDITIONER 0026 1FRONT AUTO AIR CONDITIONER 0027 1FRONT AUTO AIR CONDITIONER 0030 1REAR MANUAL COOLER 0035 1REAR AUTO COOLER

87010BSCREW(FOR AIR CONDITIONER UNIT)

main88718-0A020×2iTGN14#..VN202010

main90099-00968×2supersedes 90099-00968iGUN142,TGN141..IND..(DCRL,HTWC)201511-202010

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0KD10iTGN140..5F..VN201607-202009

main87050-0KD70iTGN140..6FC..VN201607-202009

main87050-0KE30iGUN143,TGN140..IDNP..(20E,28E,N)..PHL201608-202008

main87050-0KE40iTGN141..27SR201511-201807

main87050-0KE50iGUN143,TGN141..(27,28)..GCC202009-202304

main87050-0KE60iTGN141..5F..27G..GCC;GUN142..(24G,28V)..GCC201511-201807

main87050-0KE70iGUN143..TH201511-202008

main87050-0KE80iGUN142..5F..24Z202011

main87050-0KJ00iTGN140..6FC..20E..MA201611-202012

main87050-0KJ10iGUN142,TGN140..(20V,24G)..MA202101

main87050-0KJ70iGUN143,TGN140..IDNP..(20,28,28V)..PHL202009

main87050-0KJ80iTGN140..TH201511-202008

FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL)

main87050-0KJ90iTGN140..GEN201511-201807

main87050-0KK10iGUN142,TGN141..(24G,27G,G,N)..IND..(DCRL,HTWC)201604-202010

main87050-0KK20iTGN140..PHLP..5F..20E201604

main87050-0KK30iGUN143,TGN140..PHLP..6FC..(20G,28G)201604

main87050-0KK70iGUN143..PHLP..5F..(28E,N)201604-202102

main87050-0KK80iGUN143..PHLP..28202102

main87050-0KK90iGUN142,TGN140..(20Q,20V,24Q,24V)..IDN201511-202008

main87050-0KL10iGUN142..6F201709-202001

ECO PACKAGE-WITH(IDLE STOP SYSTEM)

87050LSCREW(FOR AIR CONDITIONER RADIATOR)

main88718-0A020iTGN14#..6FC..VN202010

main90099-00968×9supersedes 90099-00968iTGN141..5F..27G..GCC;GUN142..(24G,28V)..GCC201511-201807

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0K390iTGN140..VN201607-201908

sub55607-KK040

main87103-0K391iTGN14#..VN202010

main87103-0K410iTGN140..TH201511-201905

FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL)

sub55607-KK030

main87103-0K411iTGN140..TH201906-202008

FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL)

main87103-0K420iGUN143,TGN140..IDNP..(20E,28E,N)..PHL201608-201905

sub55607-KK040

main87103-0K421iGUN143,TGN140..IDNP..(20E,28E,N)..PHL202009

main87103-0K430supersedes 87103-0K430iGUN142..(24Q,24V)..IDN;GUN143,TGN140..RHD..IDNP..(20Q,20V,28G,28V)201511-201906

sub55607-KK030

main87103-0K431iGUN14#,TGN140..RHD..IDNP..(20Q,20V,24Q,24V,28G,28V)201906-202008

main87103-0K440iTGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20G,24V,28G,28V)..(GEN,PHL)201511-201906

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

sub55607-KK040

main87103-0K441iTGN141..27..GCC201906-202008

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87103-0K450iGUN142,TGN141..(24G,27G,G,N)..IND..(DCRL,HTWC)201604-202003

sub55607-KK030

main87103-0K451iGUN142..5F..IND202011

main87103-0K510iGUN143,TGN140..PHLP..(20E,28E,N)201604-201906

main87103-0K511iGUN143,TGN140..PHLP..(20E,28E,N)202102

main87103-0K520iGUN143,TGN140..PHLP..(20G,28G,28V)201604-201906

main87103-0K521iGUN143,TGN140..PHLP..(20G,28G)201907

main87103-0K530iTGN140..6FC..20E..MA201611-201907

sub55607-KK030

main87103-0K531iTGN140..20E..MA201907-202012

main87103-0K540iTGN140..(20G,20V)..MA201611-201907

sub55607-KK030

main87103-0K541iTGN140..(20G,20V)..MA201907-202012

87114BCOVER, HEATER

main87114-0K040iTGN140..VN201607-202009

main87114-0K060iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main87114-0K080iGUN142..5F..IND202011

main87114-0K090iTGN140..5F..MA201611-201905

main87114-0K100iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201604-202102

87128GROMMET, HEATER

main87128-0K140iTGN140..TH;GUN142..20G202009-202304

main87128-0K150supersedes 87128-0K150iTGN141..5F..27..GCC201511-201904

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87128-0K160iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

main87128-0K180iTGN140..VN201607-202009

main87128-0K210iTGN140..6FC..20E..MA201611-202012

main87128-0K240iGUN143,TGN140..PHLP..(20E,28E,N)202102

main87128-0K250iTGN140..(20G,20V)..MA201611-202012

main87128-0K260iGUN143,TGN140..PHLP..(20G,28G)201604

87130DBLOWER ASSY

main87130-0K590iTGN140..5F..VN201607-201908

sub55607-KK040

main87130-0K591iTGN140..20E..VN202010

main87130-0K630iTGN140..6FC..VN201607-201908

sub55607-KK040

main87130-0K631iTGN140..6FC..VN201908-202009

main87130-0K650iGUN143,TGN140..IDNP..(20E,28E,N)..PHL201608-201905

main87130-0K651iGUN143,TGN140..IDNP..(20E,28E,N)..PHL202009

main87130-0K660iTGN141..5F..27..GCC201511-201904

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

sub55607-KK040

main87130-0K661iGUN143,TGN141..(27,28)..(GCC,LA)202009-202304

main87130-0K680iTGN141..5F..27G..GCC;GUN142..(24G,28V)..GCC201511-201807

sub55607-KK040

main87130-0K681iGUN143,TGN140..IDNP..(20,28,28V)..PHL202009

main87130-0K690supersedes 87130-0K690iGUN142..(24Q,24V)..IDN;GUN143,TGN140..RHD..IDNP..(20Q,20V,28G,28V)201511-201906

sub55607-KK030

main87130-0K691iTGN140..20Q;GUN142..RHD..IDNP..(24V,N)202009

main87130-0K700iGUN14#..(24V,24Z,28Z)..IND201604-202001

sub55607-KK030

main87130-0K701iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z)202011-202301

GRADE MARK-V

main87130-0K840iTGN140..5F..MA201611-201905

sub55607-KK030

main87130-0K841iTGN140..20E..MA201907-202012

main87130-0K850iTGN140..(20G,20V)..MA201611-201907

sub55607-KK030

main87130-0K851iTGN140..(20G,20V)..MA201907-202012

main87130-0KA00iTGN140..TH201511-201905

FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL)

sub55607-KK030

main87130-0KA01iGUN142,TGN140..(20G,24G)..IDN202009

main87130-0KA10iTGN140..GEN201511-201807

main87130-0KA20iGUN142,TGN141..(24G,27G,G,N)..IND..(DCRL,HTWC)201604-202003

sub55607-KK030

main87130-0KA21iGUN142,TGN141..(24G,27G,G,N)..IND202004-202010

main87130-0KA30iGUN143,TGN140..PHLP..(20E,28E,N)201604-201906

main87130-0KA31iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201907-202102

main87130-0KA40iGUN143,TGN140..PHLP..(20G,28G,28V)201604-201906

main87130-0KA41iGUN143,TGN140..PHLP..(20,28,28V)202102

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-0K220iTGN140..TH201511-202008

FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL)

main87106-0K240iGUN143,TGN140..PHLP..(20G,28G,28V)201511-202101

main87106-0K241iGUN14#,TGN14#..LHD..IDNP..(20G,24V,27G,27SRV,28G,28V)202001-202008

main87106-0K250supersedes 87106-0K250iGUN142,TGN141..(24V,24Z,27V,27Z)..(DCRL,HTWC)201604-202004

main87106-0K251iTGN140..(20G,20V)..MA202001-202012

87138CRESISTOR, BLOWER

main87138-0K350iTGN140..PHLP..5F..20E201511

main87138-0K360iGUN14#..(24G,28G,G,N)..IND201511-202001

87139CFILTER, CLEAN AIR

main87139-0K030iGUN142..TH201511-201707

POLLEN FILTER,OE PART

main87139-0K040iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

POLLEN FILTER,OE PART

main87139-0K050iGUN14#..IND201604-202001

POLLEN FILTER,OE PART

main87139-0K070iTGN14#..VN202010

POLLEN FILTER,OE PART

main87139-0K100iGUN142,TGN140..MA202101

POLLEN FILTER,OE PART

main87139-0K110iGUN143,TGN140..PHLP202102

POLLEN FILTER,OE PART

main87139-58010iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

DEODORANT FILTER

8715

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0K390iTGN14#..VN202010

main88501-0K410iTGN141..IND;GUN142..6FC..IND202011-202301

main88501-0K450iGUN142..GCC;TGN141..IDNP..5F..(27G,27SR)201511-201807

main88501-0K460iTGN140..TH201511-202008

FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL)

main88501-0K510iTGN140..5F..MA201611-201905

main88501-0K530iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201604-202102

main88501-0K550iGUN142..6F201709-202001

ECO PACKAGE-WITH(IDLE STOP SYSTEM)

88515VALVE, COOLER EXPANSION

main88515-0K580iTGN140..VN201511-202009

main88515-0K590supersedes 88515-0K590iTGN141..5F..27..GCC201511-201904

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2supersedes 90099-04542iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL)

88539JHOSE, DRAIN COOLER

main88539-0K330iGUN142..GCC;TGN141..IDNP..5F..(27G,27SR)201511-201807

main88539-0K340iTGN140..IDN;GUN142..IDN,TH202009

main88539-0K360iGUN14#..IND201604-202001

main88539-0K380iTGN14#..VN202010

main88539-0K470iTGN140..6FC..MA201611-202012

main88539-0K480iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201604-202102

88548BCASE, AIR FILTER

main88548-0K080iTGN140..VN201607-201812

main88548-0K090supersedes 88548-0K090iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main88548-0K091iTGN141..5F..GCC201901-201904

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88548-0K100iGUN14#,TGN141..IND201604-201910

main88548-0K101iGUN142..5F..IND202011

main88548-0K130iTGN140..MA201611-201812

main88548-0K131iGUN142,TGN140..MA202101

main88548-0K160iGUN143,TGN140..PHLP201604-201812

main88548-0K161iGUN143,TGN140..PHLP202102

main88899-06330iTGN140..VN201901-202009

88625THERMISTOR, COOLER, NO.1

main88620-0K010iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main88620-0K020supersedes 88620-0K020iGUN142..6F201511-202001

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0K380iGUN142,TGN141..(24G,27G)..IND..(DCRL,HTWC)201604-202010

main88650-0K410iTGN140..TH201511-201610

FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL)

main88650-0K420iTGN140..20E..VN202009

main88650-0K440iTGN140..6FC..VN201511-202009

main88650-0K450iGUN143,TGN141..6FC..(27G,28G,28V)..GCC201511-202008

main88650-0K470iTGN140..TH;GUN142..20G202009-202304

main88650-0K510iGUN142..5F..24Z202011

88894GCONNECTOR, DRAIN HOSE

main88894-0K010iTGN140..VN201607-202009

main88894-0K040iGUN14#,TGN14#..LHD..(GCC,GEN,LA)202009-202304

main88894-0K050iTGN140..IDN;GUN142..IDN,TH202009

main88894-0K070iGUN14#..IND201604-202001

main88894-0K130iGUN142,TGN140..MA202101

main88894-0K180iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604

main88894-0K200iGUN142..(6F,6FC)..IND202011-202301

8719387101

main87193-87101

9009900968

main90099-00968

9009914120

main90099-14120

9009914121

main90099-14121

90119T0404

main90119-T0404

90159T0005

main90159-T0005

90159T0014

main90159-T0014

90178T0053

main90178-T0053

90178T0065

main90178-T0065

9017906323

main90179-06323

9167380616

main91673-80616

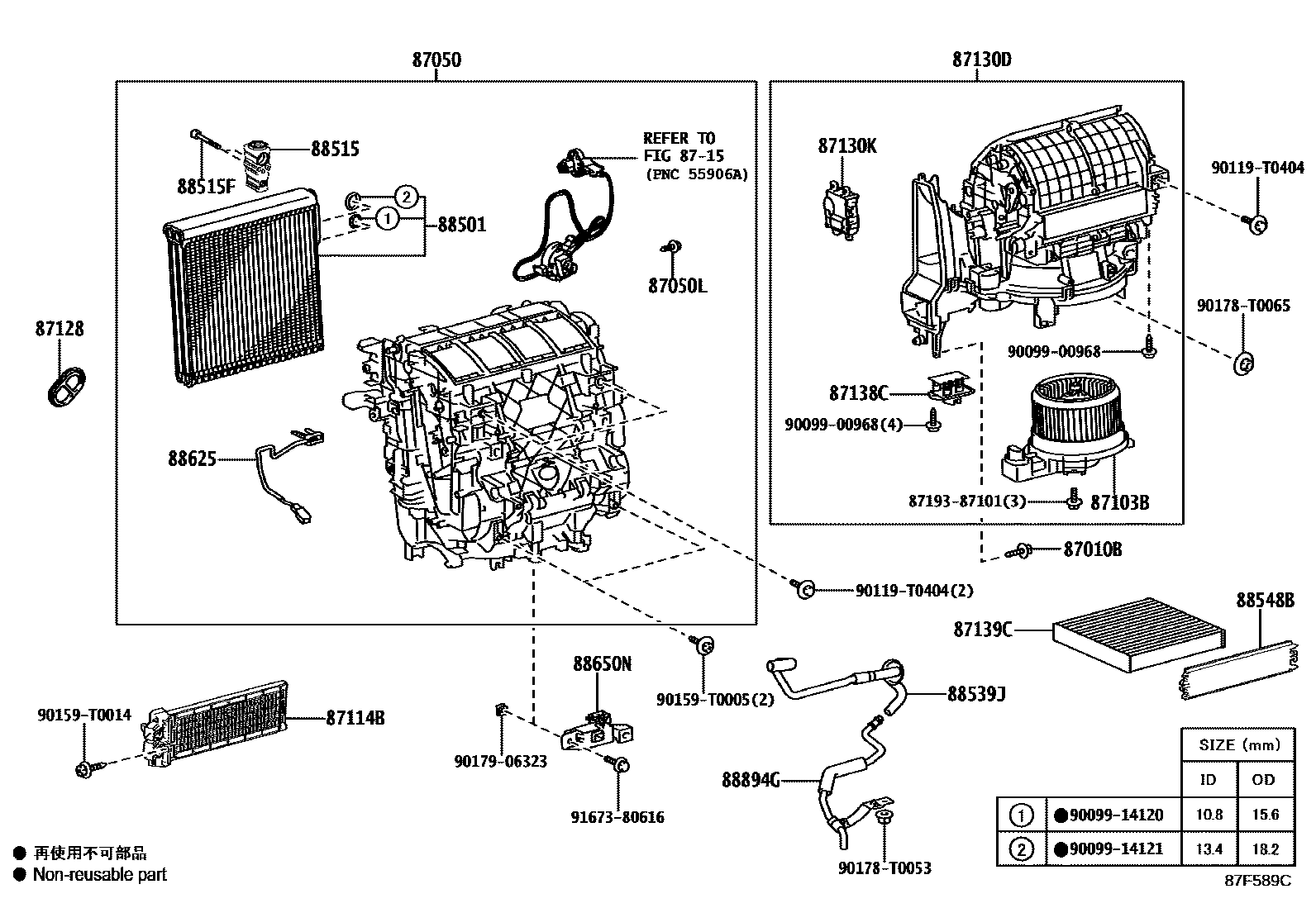

30 parts on this diagram · 14 diagrams in section
