SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE(EURO6C) 0003 1ENGINE 0004 1TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM(RELAY BLOCK) 0007 1COWL(1/2) 0008 1COWL(2/2) 0009 1COWL(1/2) 0010 1COWL(2/2) 0011 1COWL(2/2) 0012 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0014 1INSTRUMENT PANEL 0015 1STEERING 0016 1SEAT 0017 1DOOR,ROOF,FLOOR & LUGGAGE

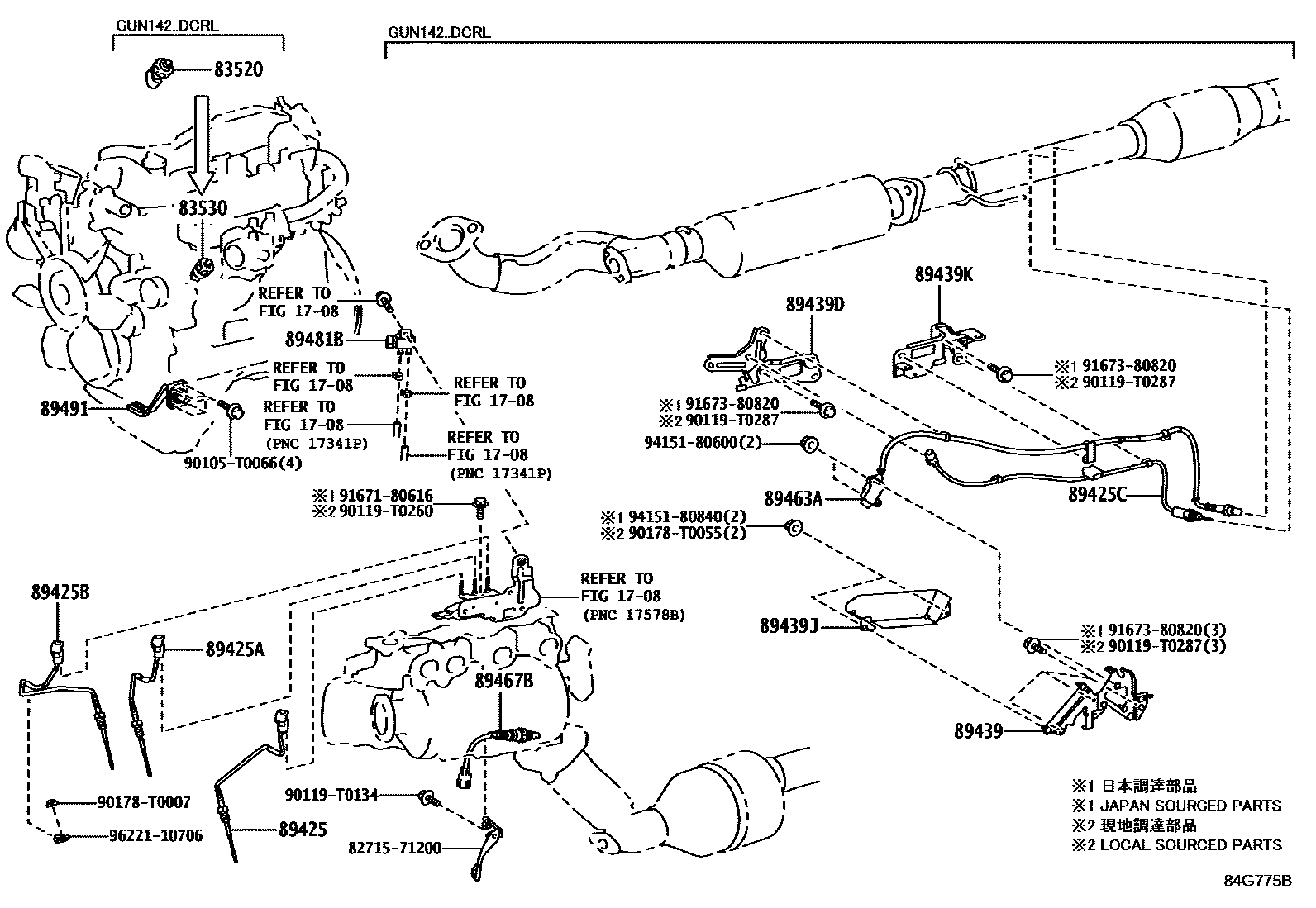

1708

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iGUN142..(5F,6FC)..IND202002-202301

main83520-60060iGUN142..IDN202009

EXHAUST EMISSION CONTROL-EURO4,WITH(ON BOARD DIAGNOSIS)

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iGUN14#..(24G,24V,28,28E,28V,N)..(IDN,MA,PHL)202009

EXHAUST EMISSION CONTROL-EURO4,WITH(ON BOARD DIAGNOSIS),DENSO

main83530-28010iGUN142..TH201511-202304

DENSO

main83530-28020iTGN140..5F..MA201511-202304

DENSO

main83530-60010iGUN143..PHLP..(28E,28V,N)201511-202304

YAZAKI

main83530-60020iTGN141..27G,27Z201511-202304

YAZAKI

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-71070iGUN142..TH201511-202301

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-71080iGUN142..TH201511-202301

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-71090iGUN142..TH201511-202301

89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4

main89425-71110iGUN142..IND202002-202301

89439BRACKET, SENSOR

main8946A-71050iGUN142..IND202002-202301

89439DBRACKET, SENSOR, NO.1

main8946A-71080iGUN142..IND202002-202210

main8946A-71081iGUN142..(6F,6FC)..IND202210-202301

89439JBRACKET, SENSOR, NO.2

main8946A-KK020iGUN142..IND202002-202301

89439KBRACKET, SENSOR, NO.3

main8946A-KK040iGUN142..IND202002-202210

main8946A-KK041iGUN142..(6F,6FC)..IND202210-202301

89463ASENSOR, NITROGEN OXIDES

main89463-71030iGUN142..IND202002-202110

main89463-71031iGUN142..(6F,6FC)..IND202110-202301

89467BSENSOR, AIR FUEL RATIO

main89467-71120iGUN14#..IND201511-202301

main89467-71130iTGN14#..(20G,27,27G,27Z,G,N,SRV)..(GCC,GEN,IND,LA,TH)201511-202301

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iGUN142..TH..DCR;GUN142..(5F,6FC)..IND..DCRL201511-202301

89491SENSOR, ENGINE OIL LEVEL

main89491-26190iGUN143..PHLP..28G202002-202304

main89491-71010iGUN143..5F..(GCC,GEN)201511-202005

8271571200BRACKET,WIRING HARNESS CLAMP

main82715-71200

90105T0066

main90105-T0066

90119T0134

main90119-T0134

90119T0260

main90119-T0260

90119T0287

main90119-T0287

90178T0007

main90178-T0007

90178T0055

main90178-T0055

9167180616

main91671-80616

9167380820

main91673-80820

9415180600

main94151-80600

9415180840

main94151-80840

9622110706

main96221-10706

27 parts on this diagram · 17 diagrams in section
