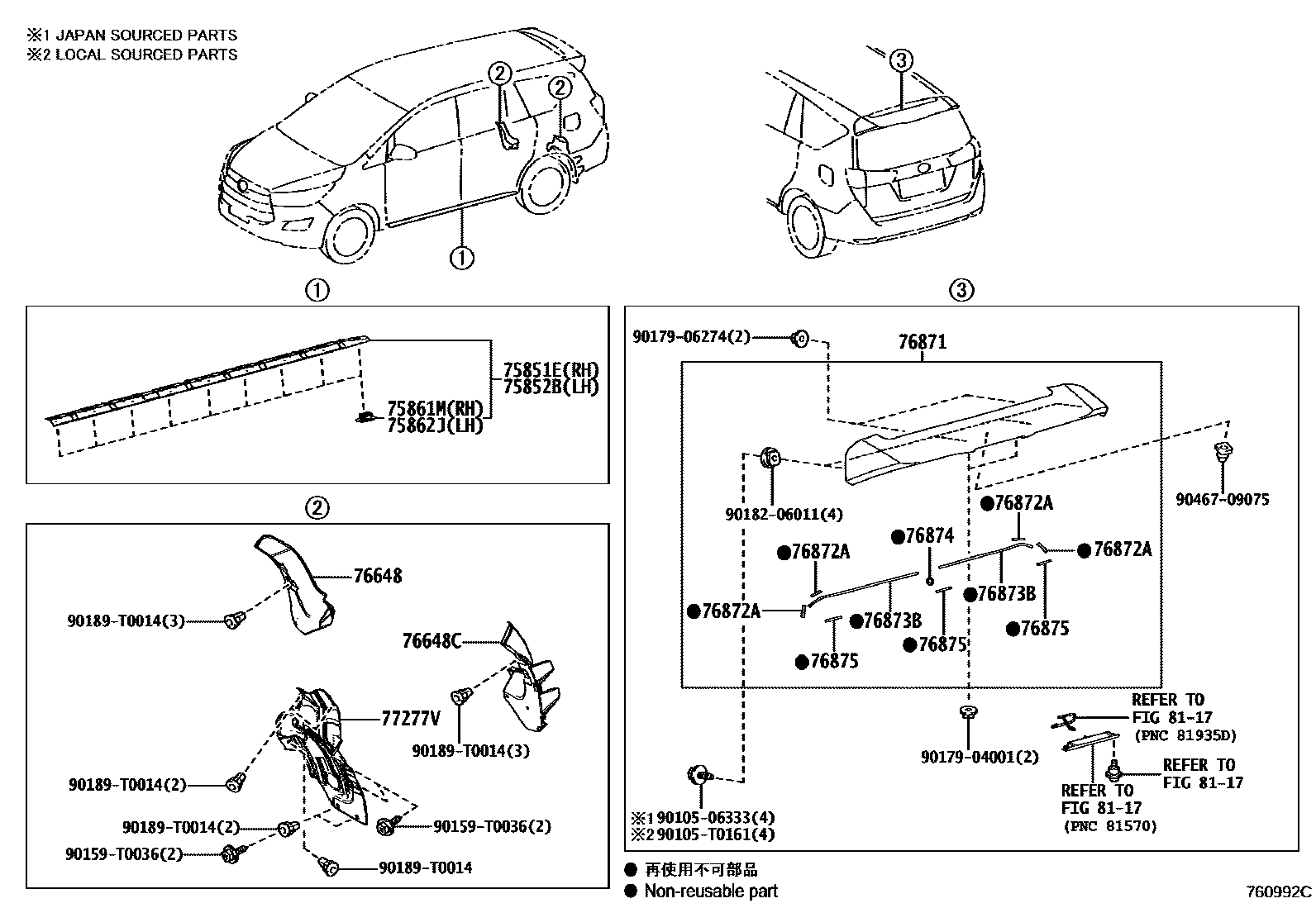

SPOILER & SIDE MUDGUARD

0001 1 0002 1 0003 1FRONT SPOILER & REAR SIDE SPO

75851EMOULDING, BODY ROCKER PANEL, RH

main75851-0K040iTGN140..VN201511-202304

main75851-0K050iGUN142..5F..IND201604-202301

75852BMOULDING, BODY ROCKER PANEL, LH

main75852-0K040iTGN140..20..GEN;TGN141..5F..27..GCC;TGN140..(MAP,PHLP)..5F;GUN142..(GCC,SA,TH)..DCR;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN143,TGN141..5F..(2201511-202304

main75852-0K050iGUN142..5F..IND201604-202301

75861MRETAINER, ROCKER PANEL MOULDING, RH

main76924-12030iTGN140..VN201511-202304

75862JRETAINER, ROCKER PANEL MOULDING, LH

main76924-12030iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202304

76648SUPPORT, REAR BODY MUDGUARD, RH

main76647-0K130iTGN140..5F..MA201511-202304

main76647-0K140iGUN142..5F..IND201604-202301

76648CSUPPORT, REAR BODY MUDGUARD, LH

main76648-0K130iGUN142..TH201511-202304

main76648-0K140iGUN14#..IND201604-202301

76871SPOILER, REAR

main76085-0K907iGUN142,TGN14#..(20Q,20V,24V,27V)..(IDN,MA,VN)202009

PAINT REQ.,WITH(MLM PACKAGE(TMMIN VENTURER))

main76085-0K907iGUN142..TH201511-202102

main76085-0K907iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

PAINT REQ.

main76871-0K912iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main76871-0K912iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

PAINT REQ.

76872APROTECTOR, REAR SPOILER, NO.1

main76872-0K020iTGN140..5F..MA201511-202304

main76872-0K020iGUN142,TGN14#..(20Q,20V,24V,27V)..(IDN,MA,VN)202009

WITH(MLM PACKAGE(TMMIN VENTURER))

main76872-0K030iTGN141..IND;GUN142..(6F,6FC)..IND201604-202301

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-0K020iTGN140..5F..MA201511-202304

main76873-0K020iGUN142,TGN14#..(20Q,20V,24V,27V)..(IDN,MA,VN)202009

WITH(MLM PACKAGE(TMMIN VENTURER))

main76873-0K030iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

76874PROTECTOR, REAR SPOILER, NO.3

main76874-0K030iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202304

main76874-0K030iTGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..IDN,MA,TH,VN;GUN143..(28,28E,28V,N)..PHL202009

WITH(MLM PACKAGE(TMMIN VENTURER))

main76874-0K040iTGN141..IND;GUN142..(6F,6FC)..IND201604-202301

76875PROTECTOR, REAR SPOILER, NO.4

main76875-0K020iTGN140..5F..MA201511-202304

main76875-0K020iTGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..IDN,MA,TH,VN;GUN143..(28,28E,28V,N)..PHL202009

WITH(MLM PACKAGE(TMMIN VENTURER))

main76875-0K030iTGN141..IND;GUN142..(6F,6FC)..IND201604-202301

77277VPROTECTOR, FUEL TANK FILLER PIPE, NO.1

main77277-0K110iTGN140..5F..MA201511-202304

main77277-0K120iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

8117

9010506333

main90105-06333

90105T0161

main90105-T0161

90159T0036

main90159-T0036

9017904001

main90179-04001

9017906274

main90179-06274

9018206011

main90182-06011

90189T0014

main90189-T0014

9046709075

main90467-09075

21 parts on this diagram · 3 diagrams in section
