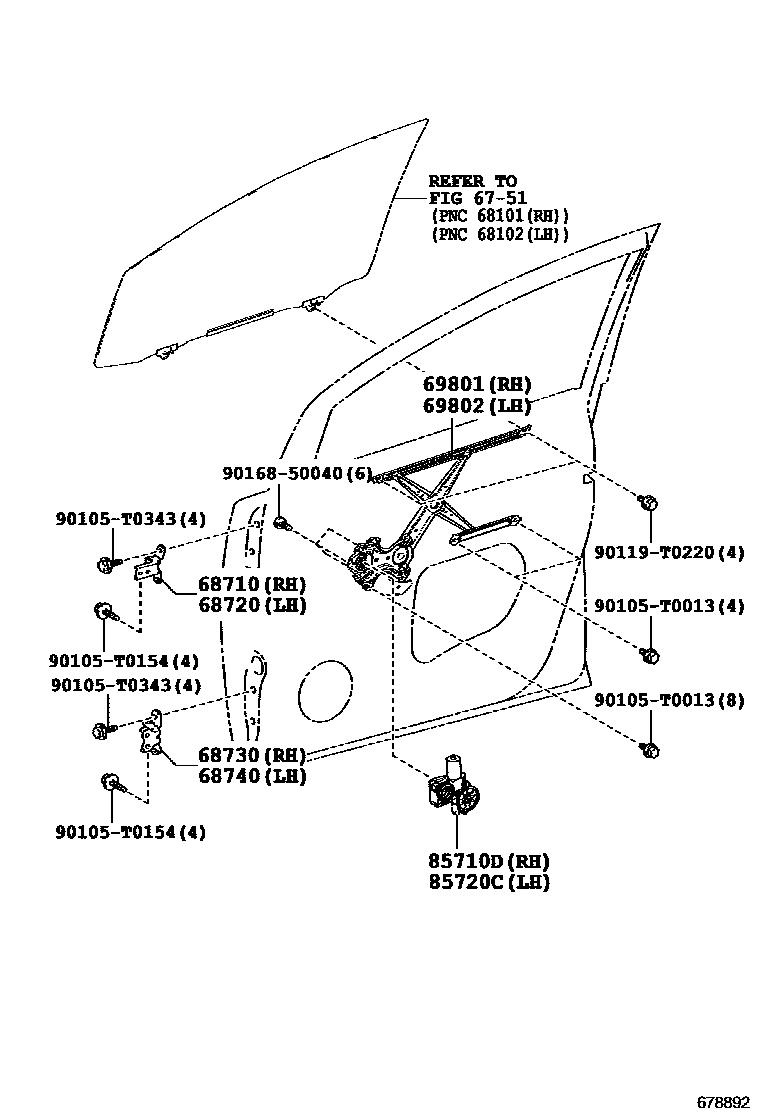

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02080iGUN142..5F..IND201604-202301

main68710-0K020iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202304

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02080iGUN142..5F..IND201604-202301

main68720-0K020iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202304

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02090iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

main68730-02100iTGN140..VN201511-202304

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02090iTGN141..IND;GUN142..(6F,6FC)..IND201604-202301

main68740-02100iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0K100iGUN142..5F..IND201604-202301

main69801-0K170iTGN140..VN201511-202304

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0K100iTGN141..IND;GUN142..(6F,6FC)..IND201604-202301

main69802-0K170iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201511-202304

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0K070iGUN142..TH201511-202304

main85710-0K100iGUN142..G,N201604-201807

sub85710-0K120

main85710-0K110iGUN142..5F..(24G,24Z)..IND201604-202301

main85710-0K120iGUN142..G201808-202010

main85710-0K180iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511-202102

main85710-0K180iGUN143,TGN14#..(20G,27,28)..(GCC,GEN,LA)202009-202304

WIRELESS DOOR LOCK-WITH

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D330iGUN142,TGN141..(24G,27G,G,N)..IND..(DCRL,HTWC)201808-202301

main85720-0K070iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511-202304

main85720-0K070iGUN143,TGN140..IDNP..(20G,28E,28V)..(GCC,PHL,TH);GUN14#,TGN140..IDNP..(20E,20Q,24Q,28G)..(IDN,PHL);GUN14#,TGN141..6FC..(24V,27G,27SRV,28G)..(GCC,GEN,LA)201511-202008

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)

main85720-0K100iGUN14#,TGN141..(24G,27G,28G,G,N)..IND201604-201807

sub85720-0D330

main85720-0K120iGUN142,TGN141..(24V,24Z,27V,27Z)..IND..(DCRL,HTWC)201604-202010

main85720-0K120iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z)202011-202301

GRADE MARK-V

main85720-0K180iGUN143,TGN141..5F..(24,27,28)..(GCC,GEN)201511-202304

main85720-0K180iGUN142,TGN140..(20Q,24V)..IDN202009

WIRELESS DOOR LOCK-WITH

90105T0013

main90105-T0013

90105T0154

main90105-T0154

90105T0343

main90105-T0343

90119T0220

main90119-T0220

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
