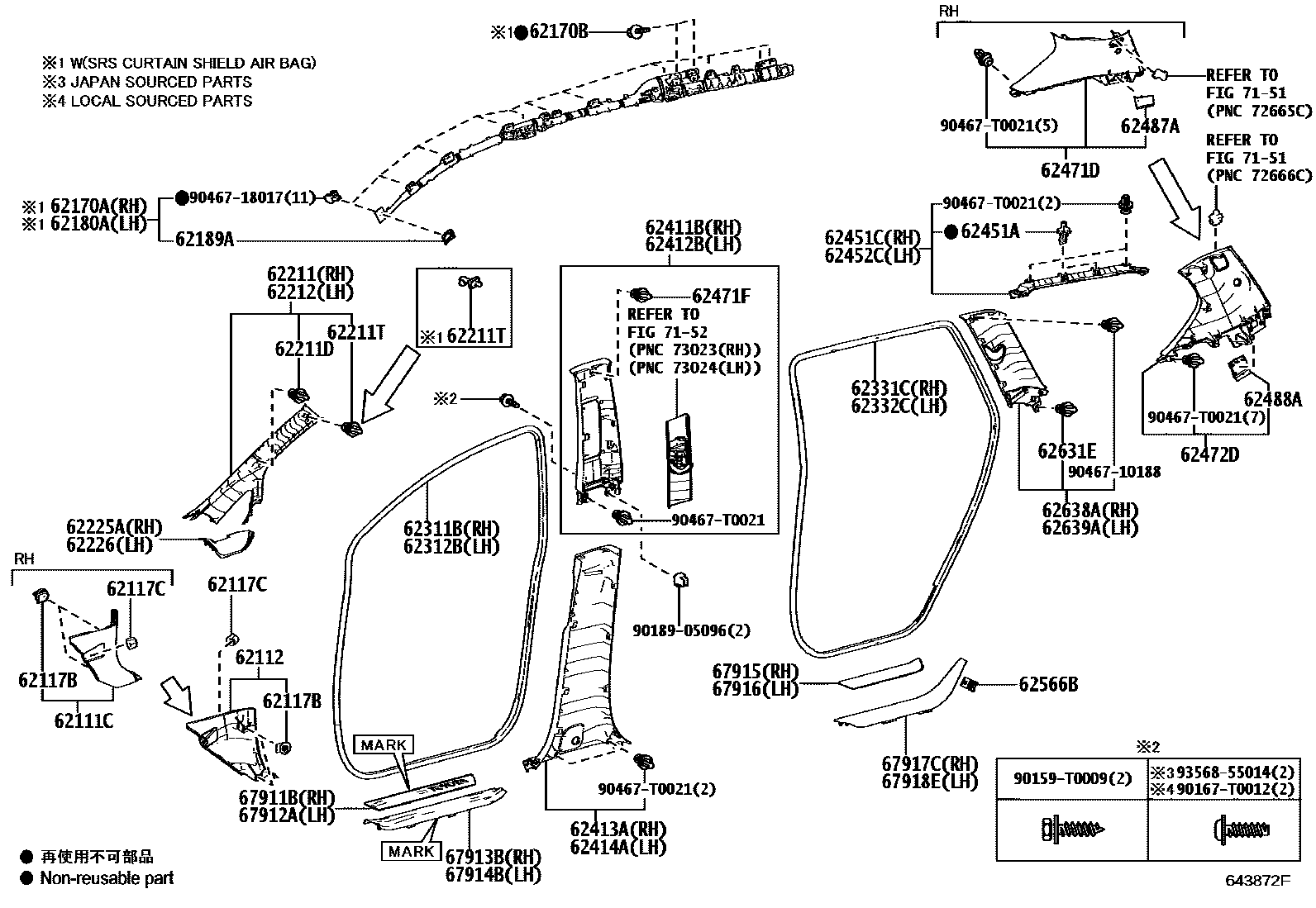

INSIDE TRIM BOARD

0001 1 0002 1DECK SIDE TRIM 0003 1DECK SIDE TRIM 0006 1DECK SIDE TRIM

62111CBOARD, COWL SIDE TRIM, RH

main62111-0K210-C0iTGN140..20E..VN201607-202009

BLACK,TRIM4#

main62111-0K210-C0iTGN140..6FC..MA201611-202012

BLACK,TRIM2#

main62111-0K210-C0iTGN140..(20,20E,20G)..VN201607-202009

BLACK,TRIM2#,4#

main62111-KK010-C0iGUN142..20G,24,24Z;TGN140..GEN,IDN,TH;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)201604-202301

BLACK,TRIM2#

main62111-KK010-C0iGUN142..20G,24,24Z;TGN140..GEN,IDN,TH;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)201511-202301

BLACK,TRIM2#,4#

main62111-KK010-C0iGUN142,TGN140..MA202101-202301

BLACK,TRIM2#,MARK=62111-KK010

main62111-KK030-C0iGUN143..(28,28V)..PHL202302

BLACK,TRIM2#

main62111-KK030-C0iGUN143..(28,28V)..PHL202302-202304

BLACK,TRIM2#,4#

main62111-KK030-C0iGUN143..28E,N;GUN142..5F..(24G,G)..IND202302

BLACK,TRIM2#,MARK=62111-KK030

main62111-KK030-C0iGUN143..28E,N;GUN142..5F..(24G,G)..IND202302

BLACK,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-0K210-C0iTGN140..6FC..MA201611-202012

BLACK,TRIM2#

main62112-0K210-C0iTGN14#..6FC..VN201607-202009

BLACK,TRIM2#,4#

main62112-0K210-C0iTGN140..20E..VN201607-202009

BLACK,TRIM4#

main62112-KK010-C0iTGN140..PHLP..N;GUN142..(24G,G)..IND;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;TGN140..IDNP..(20E,N)..PHL201604-202301

BLACK,TRIM2#

main62112-KK010-C0iGUN142..TH201511-202301

BLACK,TRIM2#,4#

main62112-KK010-C0iGUN142,TGN140..MA202101-202301

BLACK,TRIM2#,MARK=62112-KK010

main62112-KK030-C0iGUN14#,TGN14#..GCC,GEN,LA,TH202302-202304

BLACK,TRIM2#,4#

main62112-KK030-C0iTGN140..MA202302

BLACK,TRIM2#,MARK=62112-KK030

main62112-KK030-C0iTGN140..MA202302

BLACK,TRIM4#

main62112-KK030-C0iTGN140..MA202302

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-11089-A0iGUN142,TGN141..IND..(DCRL,HTWC)201511-202304

IVORY

sub90467-11089

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06147iTGN140..5F..MA201511-202304

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0K070iTGN141..G;TGN141..6FC..27..LA201511-202304

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD)

sub62170-0K071

main62170-0K070iGUN142..TH201511-202012

sub62170-0K071

main62170-0K070iGUN142,TGN141..MA,TH,VN;GUN14#..(24V,28V)..(IDN,PHL);TGN140..(20E,20Q,20V)..(IDN,MA,VN)202009-202305

SRS AIR BAG-WITH(*DRP)

sub62170-0K071

main62170-0K071iGUN14#,TGN140..(20Q,24V,28V)..(IDN,PHL)202306

SRS AIR BAG-WITH(*DRP)

main62170-0K140iGUN142,TGN141..(24G,24V,24Z,27Z,G,N)..IND..(DCRL,HTWC)201604-202010

sub62170-0K141

main62170-0K140iGUN142..5F..24Z202011-202305

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD)

sub62170-0K141

main62170-0K140iGUN142..5F..24Z201607-202305

SRS AIR BAG-WITH(*DRP)

sub62170-0K141

main62170-0K141iGUN142..5F..24Z202306

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD)

main62170-0K141iGUN142..5F..(24G,G)..IND202306

SRS AIR BAG-WITH(*DRP)

62170BBOLT, W/WASHER

main91673-80616iGUN142..5F..24Z;GUN142,TGN141..MA,TH,VN;GUN14#..(24V,28V)..(IDN,PHL);TGN140..(20E,20Q,20V)..(IDN,MA,VN)201607-202004

SRS AIR BAG-WITH(*DRP)

main91673-80616iGUN142..TH201511-202012

main91673-80616iTGN140..20E..MA201511-202304

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD)

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0K070iGUN142..TH201511-202012

sub62180-0K071

main62180-0K070iTGN140..20E..MA201511-202304

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD)

sub62180-0K071

main62180-0K070iGUN142,TGN141..MA,TH,VN;GUN14#..(24V,28V)..(IDN,PHL);TGN140..(20E,20Q,20V)..(IDN,MA,VN)202009-202305

SRS AIR BAG-WITH(*DRP)

sub62180-0K071

main62180-0K071iGUN14#,TGN140..(20Q,24V,28V)..(IDN,PHL)202306

SRS AIR BAG-WITH(*DRP)

main62180-0K140iGUN142..5F..(24G,G)..IND202011-202305

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD)

sub62180-0K141

main62180-0K140iGUN14#..24Z,28Z201604-202010

sub62180-0K141

main62180-0K140iGUN142,TGN141..(24G,24V,24Z,27Z,G,N)..(DCRL,HTWC)201607-202305

SRS AIR BAG-WITH(*DRP)

sub62180-0K141

main62180-0K141iGUN142..5F..24Z202306

SRS AIR BAG-WITH(*DRP)

main62180-0K141iGUN142..5F..24Z202306

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD)

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iTGN14#..IDNP..(20,27SR)201511-202304

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD)

main62189-42010iTGN141..(27G,27V)..IND201607-202004

SRS AIR BAG-WITH(*DRP)

main62189-42010iGUN142..TH201511-202012

62211GARNISH, FRONT PILLAR, RH

main62211-0K110-B0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL202009

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62211-0K110-B0iGUN14#,TGN140..IDNP..(20,20G,24G,28)..(IDN,PHL)201511-202304

LT.GRAY,TRIM2#,4#

main62211-0K110-B0iGUN14#,TGN140..IDNP..(20Q,24V,28V)..(IDN,PHL)201608-202008

LT.GRAY,TRIM2#

main62211-0K120-B0iGUN14#..IDNP..(24V,28V)..(GEN,PHL);GUN14#..RHD..IDNP..6FC..(24Q,28G,28V)201511-202304

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#,4#

main62211-0K120-B0iGUN14#..IDNP..(24V,28V)..(GEN,PHL);GUN14#..RHD..IDNP..6FC..(24Q,28G,28V)201511-202304

LT.GRAY,TRIM2#,4#

main62211-0K120-B0iTGN140..5F..MA201611-202012

LT.GRAY,TRIM2#

main62211-0K120-B0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL201608-202008

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#

main62211-0K120-B0iTGN14#..6FC..VN202010

LT.GRAY,TRIM4#

main62211-0K130-B0iGUN142..5F..24Z201604-202301

LT.GRAY,TRIM2#

main62211-0K130-B0iGUN142,TGN141..24Z,27Z202002-202010

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62211-0K130-B0iGUN142,TGN141..24Z,27Z202002-202010

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#

main62211-0K140-B0iGUN14#..24Z,28Z201604-202301

LT.GRAY,TRIM2#,4#

main62211-0K140-B0iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z)202011-202301

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#

main62211-0K140-B0iGUN142,TGN141..(24G,24V,27G,27V,G,N)..IND202002-202010

LT.GRAY,TRIM2#

main62211-0K420-B0iGUN143,TGN140..PHLP..(20,28)202102

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62211-0K420-B0iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201604-202102

LT.GRAY,TRIM2#

main62211-0K420-B0iGUN143,TGN140..PHLP..(20G,28G)201604

LT.GRAY,TRIM2#,4#

main62211-0K430-B0iGUN143..PHLP..28V201604-202102

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#

main62211-0K430-B0iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201604-202102

LT.GRAY,TRIM2#,4#

main62211-0K430-B0iGUN143,TGN140..PHLP..(20G,28G)201604

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#,4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-T0021iGUN142..TH201511-202301

main90467-T0021iTGN140..20E..MA201511-202304

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD)

main90467-T0021iTGN140..PHLP..6FC..20E;GUN142,TGN141..MA,TH,VN;GUN142..5F..(24G,24Z,G)..IND;TGN140..(20E,20Q,20V)..(IDN,MA,VN);GUN14#..IDNP..(24V,28V)..(IDN,PHL);GUN143,TGN140..PHL202009

SRS AIR BAG-WITH(*DRP)

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-52120iTGN140..5F..MA201511-202012

main62217-52120iTGN140..20E..MA201511-202304

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD)

main90467-T0021iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201511-202304

main90467-T0021iGUN142,TGN141..IND202002-202010

SRS AIR BAG-WITH(*DRP)

62212GARNISH, FRONT PILLAR, LH

main62212-0K150-B0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL201608-202008

LT.GRAY,TRIM2#

main62212-0K150-B0iGUN14#,TGN140..IDNP..(20Q,24V,28V)..(IDN,PHL)202009

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62212-0K150-B0iGUN14#,TGN140..IDNP..(20Q,24V,28V)..(IDN,PHL)201511-202304

LT.GRAY,TRIM2#,4#

main62212-0K160-B0iTGN140..20V..VN201511-202304

LT.GRAY,TRIM2#,4#

main62212-0K160-B0iTGN140..(20,20E,20G)..VN201511-202304

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#,4#

main62212-0K160-B0iTGN140..5F..MA201611-202012

LT.GRAY,TRIM2#

main62212-0K160-B0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL201608-202008

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#

main62212-0K160-B0iTGN14#..6FC..VN202010

LT.GRAY,TRIM4#

main62212-0K170-B0iTGN141..27G;GUN142..6FC..24G..IND201604-202301

LT.GRAY,TRIM2#

main62212-0K170-B0iGUN142,TGN141..24Z,27Z202002-202010

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62212-0K170-B0iGUN142,TGN141..24Z,27Z202002-202010

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#

main62212-0K180-B0iGUN142..5F..(24G,G)..IND202011-202301

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#

main62212-0K180-B0iGUN14#..24Z,28Z201604-202301

LT.GRAY,TRIM2#,4#

main62212-0K180-B0iGUN142,TGN141..(24G,24V,27G,27V,G,N)..IND202002-202010

LT.GRAY,TRIM2#

main62212-0K420-B0iGUN143,TGN140..PHLP..(20E,28E,N)202102

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62212-0K420-B0iGUN143,TGN140..PHLP..(20,28)201604-202102

LT.GRAY,TRIM2#

main62212-0K420-B0iGUN143,TGN140..PHLP..(20,28)201604

LT.GRAY,TRIM2#,4#

main62212-0K430-B0iGUN143,TGN140..PHLP..(20G,28G)201604-202102

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#

main62212-0K430-B0iTGN140..PHLP..5F..20E201604

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#,4#

main62212-0K430-B0iGUN143..PHLP..28V201604-202102

LT.GRAY,TRIM2#,4#

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-0K030-C0iGUN142..TH201511-201711

BLACK,TRIM2#,4#

main62225-0K030-C0iTGN140..20E..MA201608-201711

BLACK,TRIM2#

main62225-0K031-C0iTGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA,TH);GUN142,TGN140..(20E,20G,20Q,20V,24G,24Q,24V)..(GEN,IDN,TH)201711-202012

BLACK,TRIM2#

main62225-0K031-C0iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201711-202304

BLACK,TRIM2#,4#

main62225-0K031-C0iTGN140..(20,20E,20G)..VN201711-202009

BLACK,TRIM4#

main62225-0K040-C0iGUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND201604-201705

BLACK,TRIM2#,4#

main62225-0K040-C0iGUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND201604-201705

BLACK,TRIM2#

main62225-0K041-C0iTGN141..27G;GUN142..6FC..24G..IND201705-202301

BLACK,TRIM2#,4#

main62225-0K041-C0iGUN14#..24Z,28Z201705-202301

BLACK,TRIM2#

main62225-0K050-C0iGUN143,TGN140..PHLP..(20G,28G,28V)201604-201709

BLACK,TRIM2#,4#

main62225-0K050-C0iGUN143,TGN140..PHLP..(20G,28G,28V)201604-201709

BLACK,TRIM2#

main62225-0K051-C0iGUN143,TGN140..PHLP..(20,28,28V)201709-202102

BLACK,TRIM2#

main62225-0K051-C0iGUN143,TGN140..PHLP..(20,28,28V)202102

BLACK,TRIM2#,4#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-0K030-C0iTGN140..(20G,20V)..MA;GUN143,TGN140..IDNP..(20E,28E,N)..PHL201608-201711

BLACK,TRIM2#

main62226-0K030-C0iTGN140..20E..MA201511-201711

BLACK,TRIM2#,4#

main62226-0K031-C0iGUN142..IDN,TH;TGN140..20E..VN;GUN143,TGN140..IDNP..(20,20G,20Q,28,28V)..(IDN,PHL)201711-202012

BLACK,TRIM2#

main62226-0K031-C0iGUN142..IDN,TH;TGN140..20E..VN;GUN143,TGN140..IDNP..(20,20G,20Q,28,28V)..(IDN,PHL)201711-202304

BLACK,TRIM2#,4#

main62226-0K031-C0iTGN14#..6FC..VN201711-202009

BLACK,TRIM4#

main62226-0K040-C0iGUN14#,TGN141..24Z,27Z,28Z201604-201705

BLACK,TRIM2#,4#

main62226-0K040-C0iGUN14#,TGN141..24Z,27Z,28Z201604-201705

BLACK,TRIM2#

main62226-0K041-C0iGUN142..5F..(24G,G)..IND201705-202301

BLACK,TRIM2#,4#

main62226-0K041-C0iGUN142..5F..24Z201705-202301

BLACK,TRIM2#

main62226-0K050-C0iGUN143,TGN140..PHLP..(20G,28G,28V)201604-201709

BLACK,TRIM2#,4#

main62226-0K050-C0iGUN143,TGN140..PHLP..(20G,28G,28V)201604-201709

BLACK,TRIM2#

main62226-0K051-C0iGUN143,TGN140..PHLP..(20,28,28V)202102

BLACK,TRIM2#,4#

main62226-0K051-C0iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201709-202102

BLACK,TRIM2#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0K090iTGN140..6FC..MA201511-202304

main62311-0K100iGUN142..5F..IND201604-202301

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0K090iGUN142..TH201511-202304

main62312-0K100iGUN14#..IND201604-202301

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0K100iGUN142..TH201511-202304

main62331-0K110iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0K100iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

main62332-0K110iGUN14#..IND201604-202301

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-0K090-B0iGUN14#,TGN140..(IDNP,MAP)..(20E,20V,24G,28E,N)..(MA,PHL)201608-202012

LT.GRAY,TRIM2#

main62411-0K090-B0iGUN142..IDN,TH;TGN140..20E..VN;GUN143,TGN140..IDNP..(20,20G,20Q,28,28V)..(IDN,PHL)201511-202304

LT.GRAY,TRIM2#,4#

main62411-0K090-B0iTGN14#..6FC..VN202010

LT.GRAY,TRIM4#

main62411-0K100-B0iGUN142,TGN141..(24Z,27Z)..(DCRL,HTWC)201604-202301

LT.GRAY,TRIM2#,4#

main62411-0K100-B0iGUN142,TGN141..(24Z,27Z)..(DCRL,HTWC)201604-202301

LT.GRAY,TRIM2#

main62411-0K190-B0iGUN143..PHLP..28V201604-202102

LT.GRAY,TRIM2#

main62411-0K190-B0iGUN143..PHLP..28V201604-202102

LT.GRAY,TRIM2#,4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-0K090-B0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL201608-202012

LT.GRAY,TRIM2#

main62412-0K090-B0iTGN140..VN201511-202304

LT.GRAY,TRIM2#,4#

main62412-0K090-B0iTGN14#..6FC..VN202010

LT.GRAY,TRIM4#

main62412-0K100-B0iGUN142,TGN141..(24G,24V,27G,27V,G,N)..IND..(DCRL,HTWC)201604-202301

LT.GRAY,TRIM2#

main62412-0K100-B0iGUN14#..24Z,28Z201604-202301

LT.GRAY,TRIM2#,4#

main62412-0K190-B0iTGN140..PHLP..5F..20E201604-202102

LT.GRAY,TRIM2#

main62412-0K190-B0iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201604-202102

LT.GRAY,TRIM2#,4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0K090-C0iGUN142..TH201511-202304

BLACK,TRIM2#,4#

main62413-0K090-C0iGUN142..IDN,TH;TGN140..20E..VN;GUN143,TGN140..IDNP..(20,20G,20Q,28,28V)..(IDN,PHL)201608-202012

BLACK,TRIM2#

main62413-0K090-C0iTGN14#..6FC..VN202010

BLACK,TRIM4#

main62413-0K100-C0iGUN142,TGN141..(24G,24V,27G,27V,G,N)..IND..(DCRL,HTWC)201604-202301

BLACK,TRIM2#

main62413-0K100-C0iGUN14#..24Z,28Z201604-202301

BLACK,TRIM2#,4#

main62413-0K190-C0iGUN143..PHLP..28V201604-202102

BLACK,TRIM2#,4#

main62413-0K190-C0iTGN140..PHLP..5F..20E201604-202102

BLACK,TRIM2#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0K090-C0iTGN140..6FC..(20E,20G)..MA201511-202304

BLACK,TRIM2#,4#

main62414-0K090-C0iTGN140..20V..MA201608-202012

BLACK,TRIM2#

main62414-0K090-C0iTGN14#..6FC..VN202010

BLACK,TRIM4#

main62414-0K100-C0iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z)201604-202301

BLACK,TRIM2#

main62414-0K100-C0iGUN14#..24Z,28Z201604-202301

BLACK,TRIM2#,4#

main62414-0K190-C0iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201604-202102

BLACK,TRIM2#

main62414-0K190-C0iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201604-202102

BLACK,TRIM2#,4#

62451ACLIP, SIDE GARNISH

main62217-52120iGUN142..TH201511-202304

62451CGARNISH, ROOF SIDE RAIL, REAR RH

main62451-0K010-B0iGUN142..TH201511-202304

LT.GRAY,TRIM2#,4#

main62451-0K010-B0iGUN142..IDN,TH;TGN140..20E..VN;GUN143,TGN140..IDNP..(20,20G,20Q,28,28V)..(IDN,PHL)201608-202012

LT.GRAY,TRIM2#

main62451-0K010-B0iTGN14#..6FC..VN202010

LT.GRAY,TRIM4#

main62451-0K030-B0iGUN14#..(24G,24V,28G,G,N)..IND201604-202301

LT.GRAY,TRIM2#,4#

main62451-0K030-B0iGUN14#..24Z,28Z201604-202301

LT.GRAY,TRIM2#

main62451-0K060-B0iGUN143..PHLP..28V201604-202102

LT.GRAY,TRIM2#,4#

main62451-0K060-B0iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201604-202102

LT.GRAY,TRIM2#

62452CGARNISH, ROOF SIDE RAIL, REAR LH

main62452-0K010-B0iGUN142..IDN,TH;TGN140..20E..VN;GUN143,TGN140..IDNP..(20,20G,20Q,28,28V)..(IDN,PHL)201511-202304

LT.GRAY,TRIM2#,4#

main62452-0K010-B0iGUN14#,TGN140..(IDNP,MAP)..(20E,20V,24G,28E,N)..(MA,PHL)201608-202012

LT.GRAY,TRIM2#

main62452-0K010-B0iTGN14#..6FC..VN202010

LT.GRAY,TRIM4#

main62452-0K030-B0iGUN142,TGN141..(24Z,27Z)..(DCRL,HTWC)201604-202301

LT.GRAY,TRIM2#,4#

main62452-0K030-B0iGUN142,TGN141..(24Z,27Z)..(DCRL,HTWC)201604-202301

LT.GRAY,TRIM2#

main62452-0K060-B0iGUN143,TGN140..PHLP..(20G,28G)201604-202102

LT.GRAY,TRIM2#,4#

main62452-0K060-B0iGUN143..PHLP..28V201604-202102

LT.GRAY,TRIM2#

62471DGARNISH, REAR PILLAR, UPPER RH

main62471-0K180-B1iTGN140..IDN,TH;GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(20G,28G,28V)..(PHL,TH)201511-202304

LT.GRAY,TRIM2#,4#

main62471-0K180-B1iGUN143,TGN140..IDNP..(20E,28E,N)..PHL201608-202012

LT.GRAY,TRIM2#

main62471-0K180-B1iTGN14#..6FC..VN202010

LT.GRAY,TRIM4#

main62471-0K190-B1iGUN142,TGN141..(24G,24V,27G,27V,G,N)..IND..(DCRL,HTWC)201604-202301

LT.GRAY,TRIM2#

main62471-0K190-B1iGUN14#..24Z,28Z201604-202301

LT.GRAY,TRIM2#,4#

main62471-0K270-B0iGUN143,TGN140..PHLP..(20G,28G)201604-202102

LT.GRAY,TRIM2#,4#

main62471-0K270-B0iGUN143..PHLP..28V201604-202102

LT.GRAY,TRIM2#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-10188iTGN140..VN201511-202304

62472DGARNISH, REAR PILLAR, UPPER LH

main62472-0K140-B1iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

LT.GRAY,TRIM2#,4#

main62472-0K140-B1iTGN140..5F..MA201608-202012

LT.GRAY,TRIM2#

main62472-0K140-B1iTGN14#..6FC..VN202010

LT.GRAY,TRIM4#

main62472-0K150-B1iGUN142,TGN141..(24G,24V,27G,27V,G,N)..IND..(DCRL,HTWC)201604-202301

LT.GRAY,TRIM2#,4#

main62472-0K150-B1iGUN142,TGN141..(24Z,27Z)..(DCRL,HTWC)201604-202301

LT.GRAY,TRIM2#

main62472-0K270-B0iTGN140..PHLP..5F..20E201604-202102

LT.GRAY,TRIM2#

main62472-0K270-B0iGUN143..PHLP..28V201604-202102

LT.GRAY,TRIM2#,4#

62487ACOVER, ROOF SIDE INNER GARNISH, RH

main62487-0K010-C0iGUN14#,TGN140..(IDNP,MAP)..(20E,20V,24G,28E,N)..(MA,PHL)201608-202012

BLACK,TRIM2#

main62487-0K010-C0iGUN14#,TGN140..(IDNP,MAP)..(20E,20V,24G,28E,N)..(MA,PHL)201511-202304

BLACK,TRIM2#,4#

main62487-0K010-C0iTGN14#..6FC..VN202010

BLACK,TRIM4#

main62487-0K020-C0iTGN141..27G;GUN142..6FC..24G..IND201604-202301

BLACK,TRIM2#

main62487-0K020-C0iGUN14#..24Z,28Z201604-202301

BLACK,TRIM2#,4#

main62487-0K030-C0iGUN143,TGN140..PHLP..(20G,28G)201604-202102

BLACK,TRIM2#,4#

main62487-0K030-C0iGUN143..PHLP..28V201604-202102

BLACK,TRIM2#

62488ACOVER, ROOF SIDE INNER GARNISH, LH

main62488-0K010-C0iGUN142..TH201511-202304

BLACK,TRIM2#,4#

main62488-0K010-C0iTGN140..6FC..MA201608-202012

BLACK,TRIM2#

main62488-0K010-C0iTGN14#..6FC..VN202010

BLACK,TRIM4#

main62488-0K020-C0iGUN14#..(24G,24V,28G,G,N)..IND201604-202301

BLACK,TRIM2#

main62488-0K020-C0iGUN14#..(24G,24V,28G,G,N)..IND201604-202301

BLACK,TRIM2#,4#

main62488-0K030-C0iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201604-202102

BLACK,TRIM2#,4#

main62488-0K030-C0iGUN143..PHLP..28V201604-202102

BLACK,TRIM2#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-71010iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

62631ERETAINER, QUATER TRIM

main90467-T0021iGUN142..TH201511-202304

62638AGARNISH, QUARTER PILLAR, RH

main62638-0K130-B0iGUN14#,TGN141..6FC..(20G,27,28,G)201511-202304

LT.GRAY,TRIM2#,4#

main62638-0K130-B0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL201608-202008

LT.GRAY,TRIM2#

main62638-0K130-B0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL202009

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62638-0K140-B0iTGN140..5F..MA201611-202012

LT.GRAY,TRIM2#

main62638-0K140-B0iGUN142..TH201511-202304

LT.GRAY,TRIM2#,4#

main62638-0K140-B0iTGN140..20E..MA201608-202008

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#

main62638-0K140-B0iGUN142..SA201511-202304

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#,4#

main62638-0K140-B0iTGN14#..6FC..VN202010

LT.GRAY,TRIM4#

main62638-0K150-B0iGUN142,TGN141..24Z,27Z202002-202010

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#

main62638-0K150-B0iGUN142,TGN141..24Z,27Z202002-202010

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62638-0K150-B0iTGN141..(27G,27V)..IND201604-202301

LT.GRAY,TRIM2#

main62638-0K160-B0iGUN142..5F..(24G,G)..IND202011-202301

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#

main62638-0K160-B0iGUN142..5F..24Z201604-202301

LT.GRAY,TRIM2#,4#

main62638-0K160-B0iGUN142,TGN141..(24G,24V,27G,27V,G,N)..IND202002-202010

LT.GRAY,TRIM2#

main62638-0K260-B0iGUN143,TGN140..PHLP..(20E,28E,N)201604

LT.GRAY,TRIM2#,4#

main62638-0K260-B0iGUN143,TGN140..PHLP..(20,28)201604-202102

LT.GRAY,TRIM2#

main62638-0K260-B0iGUN143,TGN140..PHLP..(20,28)202102

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62638-0K270-B0iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201604-202102

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#

main62638-0K270-B0iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201604-202102

LT.GRAY,TRIM2#,4#

main62638-0K270-B0iGUN143,TGN140..PHLP..(20G,28G)201604

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#,4#

62639AGARNISH, QUARTER PILLAR, LH

main62639-0K130-B0iGUN14#,TGN140..IDNP..(20,20G,24G,28)..(IDN,PHL)201608-202008

LT.GRAY,TRIM2#

main62639-0K130-B0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL202009

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62639-0K130-B0iGUN14#,TGN140..IDNP..(20Q,24V,28V)..(IDN,PHL)201511-202304

LT.GRAY,TRIM2#,4#

main62639-0K140-B0iTGN140..(20G,20V)..MA201611-202012

LT.GRAY,TRIM2#

main62639-0K140-B0iGUN143..IDNP..28V..PHL;GUN142..RHD..IDNP..(24V,N);TGN140..(20E,20Q)..(IDN,VN)201511-202304

LT.GRAY,TRIM2#,4#

main62639-0K140-B0iTGN140..GEN,TH;TGN141..5F..LA;GUN14#,TGN141..(24V,28V,SRV)..(GCC,GEN,LA,TH)201511-202304

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#,4#

main62639-0K140-B0iTGN14#..6FC..VN202010

LT.GRAY,TRIM4#

main62639-0K140-B0iTGN140..20E..MA201608-202008

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#

main62639-0K150-B0iTGN141..27G;GUN142..6FC..24G..IND201604-202301

LT.GRAY,TRIM2#

main62639-0K150-B0iGUN142,TGN141..24Z,27Z202002-202010

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62639-0K150-B0iGUN142,TGN141..24Z,27Z202002-202010

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#

main62639-0K160-B0iGUN142..5F..24Z202011-202301

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#

main62639-0K160-B0iGUN142..5F..(24G,G)..IND201604-202301

LT.GRAY,TRIM2#,4#

main62639-0K160-B0iGUN142,TGN141..(24G,24V,27G,27V,G,N)..IND202002-202010

LT.GRAY,TRIM2#

main62639-0K260-B0iGUN143,TGN140..PHLP..(20,28)201604-202102

LT.GRAY,TRIM2#

main62639-0K260-B0iGUN143,TGN140..PHLP..(20E,28E,N)202102

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62639-0K260-B0iGUN143,TGN140..PHLP..(20E,28E,N)201604

LT.GRAY,TRIM2#,4#

main62639-0K270-B0iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201604-202102

LT.GRAY,TRIM2#,4#

main62639-0K270-B0iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201604-202102

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#

main62639-0K270-B0iTGN140..PHLP..5F..20E201604

SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT.GRAY,TRIM2#,4#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-0K030-C0iTGN140..20V..VN201607-202408

BLACK,TRIM2#,4#,MARK=67911-0K030

main67911-0K030-C0iTGN140..20V..VN201607-202408

BLACK,TRIM4#,MARK=67911-0K030

main67911-0K030-C0iTGN140..MA201611-202012

BLACK,TRIM2#,MARK=67911-0K030

main67911-KK010-C0iTGN141..27G;GUN142..6FC..24G..IND201511-202304

BLACK,TRIM2#,4#,MARK=67911-KK010

main67911-KK010-C0iTGN141..27G;GUN142..6FC..24G..IND201604-202301

BLACK,TRIM2#,MARK=67911-KK010

main67911-KK010-C0iTGN140..20E..VN202408

BLACK,TRIM4#,MARK=67911-KK010

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-0K010-C0iTGN140..MA201611-202012

BLACK,TRIM2#,MARK=67912-0K010

main67912-0K010-C0iTGN140..20V..VN201607-202408

BLACK,TRIM4#,MARK=67912-0K010

main67912-0K010-C0iTGN140..20V..VN201607-202408

BLACK,TRIM2#,4#,MARK=67912-0K010

main67912-KK010-C0iTGN141..27G;GUN142..6FC..24G..IND201511-202304

BLACK,TRIM2#,4#,MARK=67912-KK010

main67912-KK010-C0iTGN141..27G;GUN142..6FC..24G..IND201604-202301

BLACK,TRIM2#,MARK=67912-KK010

main67912-KK010-C0iTGN140..20E..VN202408

BLACK,TRIM4#,MARK=67912-KK010

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0K150-C0iTGN140..20E..VN201607-202408

BLACK,TRIM4#,MARK=67913-0K150

main67913-0K150-C0iTGN140..20V..VN201607-202408

BLACK,TRIM2#,4#,MARK=67913-0K150

main67913-0K150-C0iTGN140..MA201611-202012

BLACK,TRIM2#,MARK=67913-0K150

main67913-KK010-C0iTGN141..27G;GUN142..6FC..24G..IND201511-202304

BLACK,TRIM2#,4#,MARK=67913-KK010

main67913-KK010-C0iTGN141..27G;GUN142..6FC..24G..IND201604-202301

BLACK,TRIM2#,MARK=67913-KK010

main67913-KK010-C0iTGN140..20E..VN202408

BLACK,TRIM4#,MARK=67913-KK010

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0K150-C0iTGN14#..6FC..VN201607-202408

BLACK,TRIM2#,4#,MARK=67914-0K150

main67914-0K150-C0iTGN140..20V..VN201607-202408

BLACK,TRIM4#,MARK=67914-0K150

main67914-0K150-C0iTGN140..MA201611-202012

BLACK,TRIM2#,MARK=67914-0K150

main67914-KK010-C0iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202304

BLACK,TRIM2#,4#,MARK=67914-KK010

main67914-KK010-C0iGUN142,TGN141..(24G,24V,27G,27V,G,N)..IND..(DCRL,HTWC)201604-202301

BLACK,TRIM2#,MARK=67914-KK010

main67914-KK010-C0iTGN140..20E..VN202408

BLACK,TRIM4#,MARK=67914-KK010

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-0K100-C0iTGN140..20E..VN201607-202408

BLACK,TRIM2#,4#

main67915-0K100-C0iTGN140..20E..VN201607-202408

BLACK,TRIM4#

main67915-0K100-C0iTGN140..5F..MA201611-202012

BLACK,TRIM2#

main67915-KK020-C0iTGN14#..6FC..VN202408

BLACK,TRIM4#

main67915-KK020-C0iGUN142..TH201511-202304

BLACK,TRIM2#,4#

main67915-KK020-C0iGUN14#..(24G,24V,28G,G,N)..IND201604-202301

BLACK,TRIM2#

main67915-KK020-C0iGUN142,TGN140..MA202101

BLACK,TRIM2#,MARK=67915-KK020

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-0K100-C0iTGN140..6FC..MA201611-202012

BLACK,TRIM2#

main67916-0K100-C0iTGN140..20V..VN201607-202408

BLACK,TRIM4#

main67916-0K100-C0iTGN140..20V..VN201607-202408

BLACK,TRIM2#,4#

main67916-KK020-C0iGUN142..TH201511-202304

BLACK,TRIM2#,4#

main67916-KK020-C0iGUN143..PHLP..(28E,N)201604-202301

BLACK,TRIM2#

main67916-KK020-C0iGUN142,TGN140..MA202101

BLACK,TRIM2#,MARK=67916-KK020

main67916-KK020-C0iTGN140..20E..VN202408

BLACK,TRIM4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-KK040-C0iGUN142..TH201511-202304

BLACK,TRIM2#,4#

main67917-KK040-C0iTGN140..5F..MA201604-202301

BLACK,TRIM2#

main67917-KK040-C0iTGN140..20V..VN201607-202009

BLACK,TRIM4#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-KK040-C0iGUN142..TH201511-202304

BLACK,TRIM2#,4#

main67918-KK040-C0iTGN140..5F..MA201604-202301

BLACK,TRIM2#

main67918-KK040-C0iTGN140..20V..VN201607-202009

BLACK,TRIM4#

7151

7152

90159T0009

main90159-T0009

90167T0012

main90167-T0012

9018905096

main90189-05096

9046710188

main90467-10188

9046718017

main90467-18017

90467T0021

main90467-T0021

9356855014

main93568-55014

51 parts on this diagram · 4 diagrams in section
