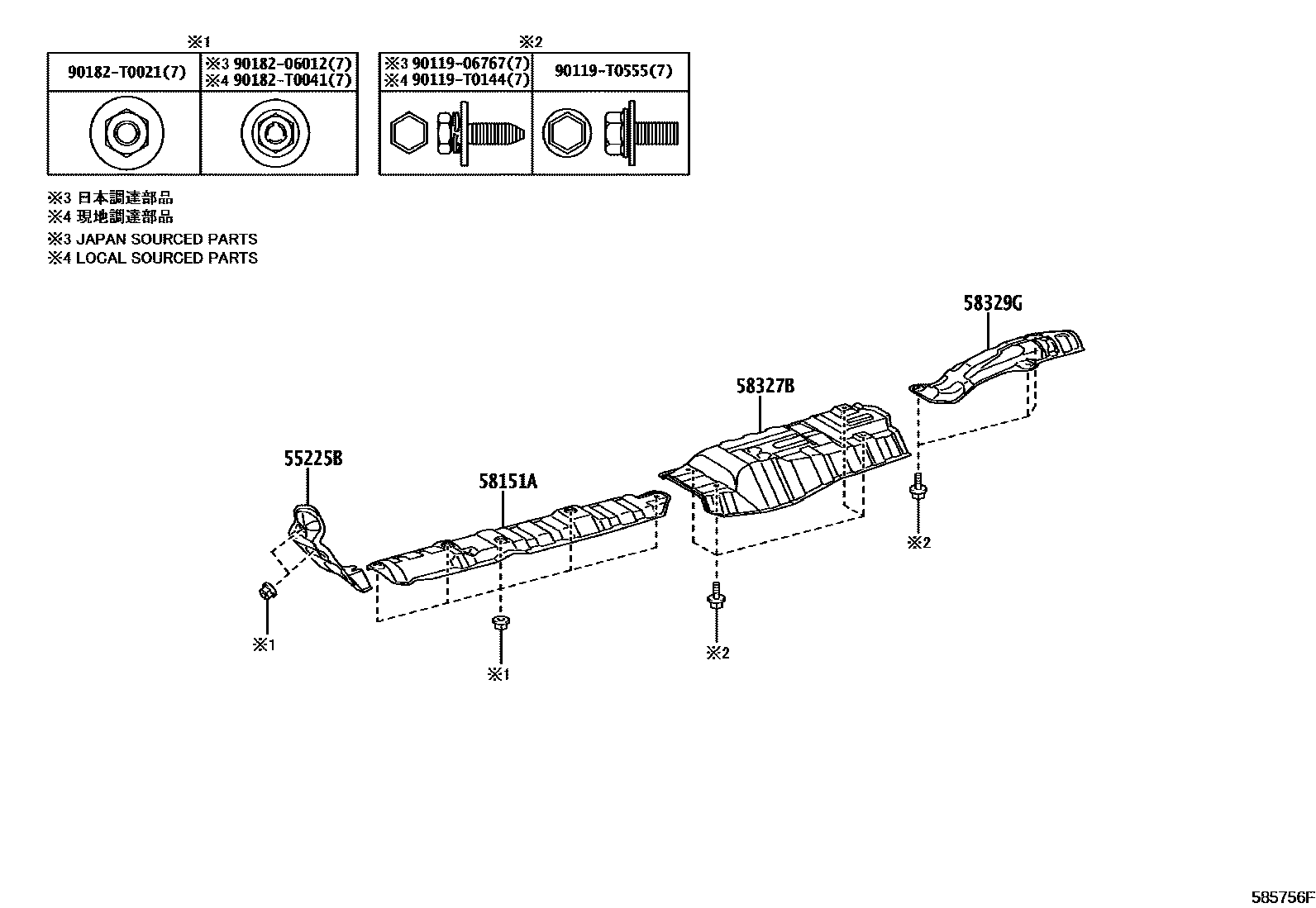

FLOOR INSULATOR

55225BINSULATOR, DASH PANEL HEAT

main55225-KK010iGUN14#,TGN14#201511-201702

main55225-KK011iGUN142..TH201703-201707

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-KK010iGUN14#,TGN14#201511-201702

main58151-KK011iGUN142..TH201703-201707

main58151-KK020iGUN14#..IND201911-202001

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K030iGUN142..TH201511-201707

58329GINSULATOR, MAIN MUFFLER HEAT, REAR UPPER

main58329-0K020iGUN142..TH201511-201707

sub58329-0K030

9011906767

main90119-06767

90119T0144

main90119-T0144

90119T0555

main90119-T0555

9018206012

main90182-06012

90182T0021

main90182-T0021

90182T0041

main90182-T0041

10 parts on this diagram · 1 diagram in section
