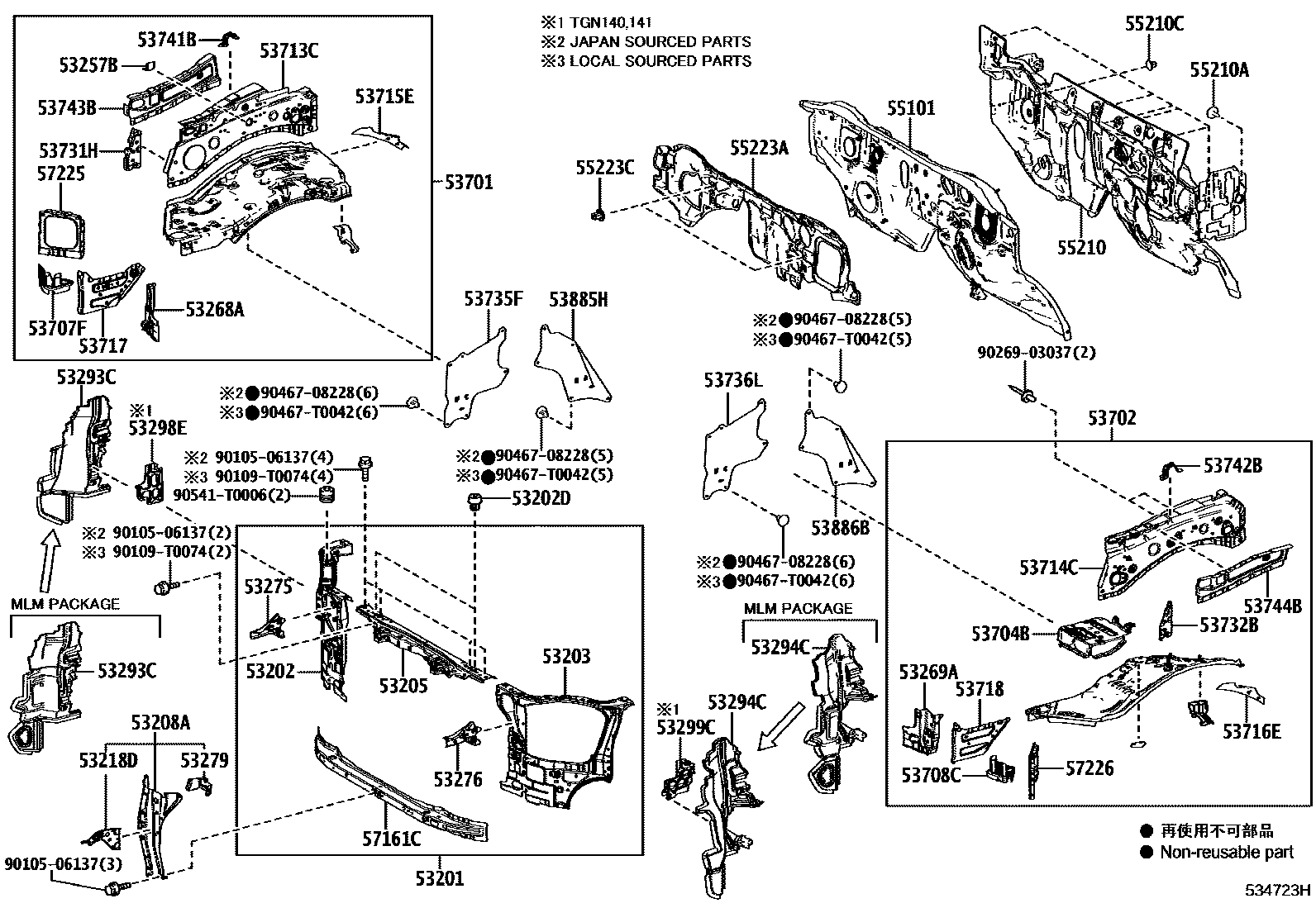

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0005 1 0006 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-KK040iTGN140..20E..VN;TGN140..IDNP..(IDN,PHL);GUN142,TGN141..IDN,MA,TH,VN;TGN140..(PHLP,VNP)..(20V,N);GUN143..(28,28E,28V,N)..PHL;TGN140..PHLP..6FC..(20,20E)201511-202412

main53201-KK070iTGN141..IND;GUN142..(6F,6FC)..IND201807-202301

main53201-KK210iTGN140..MA202412

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-KK020iTGN140..VN201511-202304

53202DCUSHION, RADIATOR SUPPORT

main53384-0K040iGUN142..TH201511-202304

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-KK020iGUN142..TH201511-202412

main53203-KK060iTGN140..MA;GUN142..5F..IND202412

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-KK020iTGN140..5F..MA201511-202304

main53205-KK080iGUN14#..IND201807-202301

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-KK020iTGN140..MA202412

main53208-KK040iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202412

main53208-KK070iGUN142,TGN141..IND..(DCRL,HTWC)201712-202301

53218DEXTENSION, HOOD LOCK BRACE

main53218-KK010iGUN142..TH201511-202304

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iGUN142..TH201511-202304

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-KK010iGUN14#..IND201511-202304

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-KK010iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH

main53275-KK010iGUN142..TH201511-202304

53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH

main53276-KK010iGUN142..TH201511-202304

53279BRACKET, HOOD LOCK SUPPORT BRACE, UPPER

main53279-KK020iGUN142..TH201511-202412

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-KK010iGUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH)202009-202207

WITH(MLM PACKAGE)

main53293-KK010iGUN142..TH201511-202102

main53293-KK010iGUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH)202009-202207

WITH(MLM PACKAGE(TMMIN VENTURER))

main53293-KK010iGUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH)202009-202108

WITH(MLM LUXURY)

main53293-KK140iTGN141..VN;GUN142..5F..(24G,24Z,G)..IND201511-202304

main53293-KK140iTGN140..VN202108

WITH(MLM PACKAGE)

main53293-KK140iTGN140..20V..MA202108

WITH(MLM PACKAGE(TMMIN VENTURER))

main53293-KK140iGUN142,TGN14#..(20Q,24V,27V)..(IDN,VN)202108

WITH(MLM LUXURY)

main53293-KK160iTGN140..TH202009-202110

WITH(MLM PACKAGE)

main53293-KK160iGUN142..GCC;TGN141..5F..27G..GCC201511-202012

main53293-KK160iTGN140..TH;GUN143,TGN141..GCC202009-202110

WITH(MLM PACKAGE(TMMIN VENTURER))

main53293-KK310iGUN143,TGN141..GCC202108-202304

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-KK010iGUN142..MA,TH;TGN140..20E..VN;TGN140..IDNP..PHL;TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E)202009-202207

WITH(MLM PACKAGE(TMMIN VENTURER))

main53294-KK010iGUN142..MA,TH;TGN140..20E..VN;TGN140..IDNP..PHL;TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E)202009-202207

WITH(MLM PACKAGE)

main53294-KK010iGUN142..SA201511-202102

main53294-KK010iGUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH)202009-202108

WITH(MLM LUXURY)

main53294-KK140iTGN140..20V..VN202108

WITH(MLM PACKAGE(TMMIN VENTURER))

main53294-KK140iTGN14#..IDNP..(20,27SR)201511-202304

main53294-KK140iGUN142,TGN14#..(20Q,24V,27V)..(IDN,VN)202108

WITH(MLM LUXURY)

main53294-KK140iTGN140..IDN202108

WITH(MLM PACKAGE)

main53294-KK160iTGN140..TH202009-202110

WITH(MLM PACKAGE)

main53294-KK160iTGN140..TH202009-202110

WITH(MLM PACKAGE(TMMIN VENTURER))

main53294-KK160iTGN140..6FC..MA201511-202012

main53294-KK310iGUN143,TGN141..GCC202108-202304

53298ESEAL, RADIATOR SIDE, RH

main53298-KK010iTGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..IDNP..(IDN,PHL);TGN14#..(20E,20V,27V)..(MA,VN)201511-202304

53299CSEAL, RADIATOR SIDE, LH

main53299-KK010iTGN140..5F..MA201511-202304

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-KK010iTGN140..IDNP..PHL;TGN141..IDNP..6FC;TGN141..5F..27..LA201511-202304

main53701-KK020iTGN140..IDN201511-202304

sub53701-KK430

main53701-KK030iGUN142..IND..DCRL201511-202301

sub53701-KK540

main53701-KK210iGUN143..6FC..GCC;GUN14#..IDNP..(24V,28E,28G,28V,N)..(GEN,PHL)201511-202111

sub53701-KK520

main53701-KK430iTGN141..IND202204-202301

main53701-KK520iGUN143..PHL202111-202304

main53701-KK540iGUN142..IDN202111-202304

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-KK010iTGN140..VN201511-202304

sub53702-KK220

main53702-KK020iGUN142..TH201511-202111

sub53702-KK210

sub53702-KK250

main53702-KK210iGUN14#,TGN140..RHD..(GEN,TH)202111-202304

main53702-KK220iGUN142..(6F,6FC)..IND202204-202301

main53702-KK250iTGN141..IND202111-202301

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-KK010iTGN141..27G,27Z201511-202304

sub53704-KK020

main53704-KK020iGUN142..5F..IND202111-202301

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-KK010iTGN140..5F..MA201511-202304

53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH

main53708-KK010iGUN142..TH201511-202304

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-KK010iGUN142..TH201511-202304

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-KK010iGUN142..TH201511-202304

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K030iGUN142..TH201511-202304

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K030iGUN142..TH201511-202304

53717PLATE, FENDER APRON, RH

main53717-KK010iGUN142..TH201511-202304

53718PLATE, FENDER APRON, LH

main53718-KK010iGUN142..TH201511-202304

53731HPATCH, FRONT FENDER APRON, RH

main53731-KK010iGUN142..TH201511-202304

53732BPATCH, FRONT FENDER APRON, LH

main53732-KK010iGUN142..TH201511-202304

53735FSEAL, FRONT FENDER APRON, UPPER RH

main53735-KK030iGUN142..TH201511-202304

53736LSEAL, FRONT FENDER APRON, UPPER LH

main53735-KK030iGUN142..TH201511-202304

53741BPLATE, FENDER APRON REINFORCE, RH

main53741-KK010iGUN142..TH201511-202304

53742BPLATE, FENDER APRON REINFORCE, LH

main53742-KK010iGUN142..TH201511-202304

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-KK020iGUN142..TH201511-202304

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-KK020iGUN142..TH201511-202304

53885HSEAL, FENDER APRON MUDGUARD, RH

main53885-KK010iGUN142..TH201511-202304

53886BSEAL, FENDER APRON MUDGUARD, LH

main53885-KK010iGUN142..TH201511-202304

55101PANEL SUB-ASSY, DASH

main55101-KK010iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

main55101-KK020iGUN143..LHD..IDNP..6FC;GUN142,TGN14#..LHD..IDNP..6FC..(20E,20G,24V,27,27G,27SRV)201511-202304

main55101-KK030iTGN140..5F..MA201511-202301

main55101-KK040iGUN142,TGN141..6FC..IND201511-202304

55210INSULATOR ASSY, DASH PANEL

main55210-0K200iGUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND201604-201910

sub55210-KK290

main55210-0K290iGUN14#,TGN141..(24G,27G,28G,G,N)..IND201604-201910

sub55210-KK300

main55210-KK010iTGN141..5F..27G..GCC;GUN142..(24G,28V)..GCC201511-201910

sub55210-KK250

main55210-KK020iGUN142..TH201511-202012

main55210-KK070iGUN143,TGN141..6FC..(27,28)..GCC;GUN143,TGN14#..(20,20E,27,28E,N)..(LA,PHL,VN)201511-201910

sub55210-KK270

main55210-KK080iTGN140..6FC..20E..MA201511-202012

main55210-KK250iGUN14#,TGN14#..LHD..IDNP..(20G,24V,27G,27SRV,28G,28V)201911-202304

main55210-KK260iGUN142..MA,TH;GUN142,TGN140..(20E,20Q,20V,24V)..(IDN,MA)201911-202304

main55210-KK270iGUN143..28E,N;TGN140..20E..VN;TGN140..IDNP..PHL;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E201911-202304

main55210-KK280iGUN142,TGN140..RHD..IDNP..(20E,20G,24G)201911-202304

main55210-KK290iGUN142,TGN141..(24V,24Z,27V,27Z)..IND..(DCRL,HTWC)201911-202010

main55210-KK290iTGN141..5F..IND202011-202301

GRADE MARK-V

main55210-KK300iGUN142,TGN141..(24G,27G,G,N)..IND..(DCRL,HTWC)201911-202301

55210ACLIP

main90467-T0004iGUN142,TGN141..IND202009-202010

main90467-T0004-A0iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

IVORY

55210CCLIP

main90467-06197iGUN142..5F..IND201803-202301

(J)

main90467-T0032iGUN142,TGN141..IND..(DCRL,HTWC)201803-202301

(L)

main90467-T0032iGUN142..TH201511-202304

55223AINSULATOR, DASH PANEL, OUTER

main55223-KK010iTGN140..20E..VN;TGN140..(IDNP,VNP)..6FC..(20,20V);GUN143,TGN141..(IDNP,VNP)..(PHL,VN)201511-202304

main55223-KK020iGUN142..IDN,MA,TH;TGN140..RHD..(20E,20Q,20V)201511-202304

main55223-KK080iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

main55223-KK090iGUN143..PHLP..(28E,28V,N)201703-202102

55223CCLIP

main90467-06197iGUN142,TGN141..IND..(DCRL,HTWC)201802-202301

(J)

main90467-06197iGUN143..PHLP..(28E,28V,N)201703-202102

main90467-T0032iGUN142..GEN,IDN;GUN143..IDNP..(PHL,TH);TGN140..RHD..IDNP..(20E,20Q,20V);TGN14#..IDNP..6FC..(20G,27)..(GCC,PHL);GUN143,TGN141..6FC..(27G,27SRV,28,28G,28V)..(GCC,LA)201511-202304

main90467-T0032iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

(L)

57161CMEMBER, FRONT CROSS

main57161-KK010iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202412

main57161-KK040iTGN140..MA;GUN142..5F..IND202412

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-KK010iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-KK010iTGN140..5F..MA201511-202304

9010506137

main90105-06137

90109T0074

main90109-T0074

9026903037

main90269-03037

9046708228

main90467-08228

90467T0042

main90467-T0042

90541T0006

main90541-T0006

53 parts on this diagram · 5 diagrams in section
