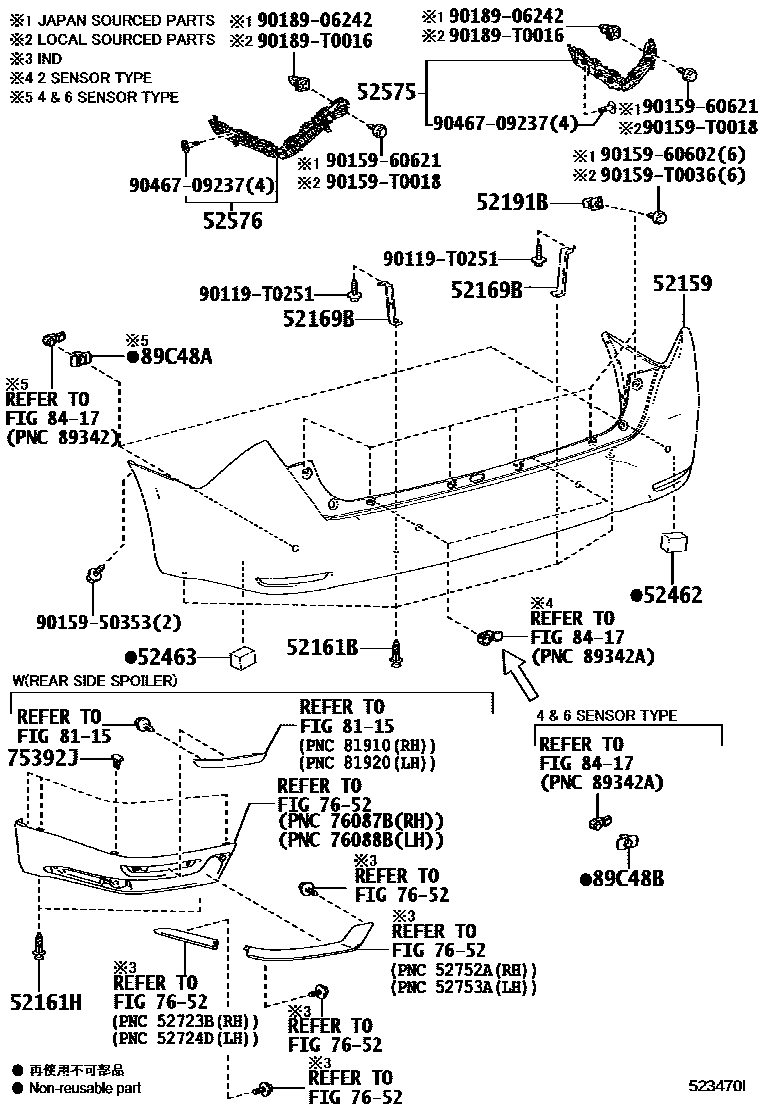

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-0K956iGUN142..G,N201604-201906

PAINT REQ.

main52159-0K957iGUN142..G,N201604-201809

PAINT REQ.

main52159-0K958iGUN143,TGN140..PHLP..(20G,28G,28V)201604

main52159-0K959iGUN143,TGN140..PHLP..(20E,28E,N)201604

main52159-0K959iGUN143,TGN140..PHLP..(20E,28E,N)202102

PAINT REQ.

main52159-0K968iGUN142..5F..IND202011-202301

PAINT REQ.

main52159-0K968iGUN14#,TGN141..IND201906-202010

main52159-0K975iGUN143..28V..(GCC,TH);GUN142,TGN14#..LHD..IDNP..(20G,24V,G,SRV)202009-202304

PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main52159-0K975iTGN140..(20E,20V)..VN;GUN142,TGN141..(24V,27V,N)..(IDN,TH,VN);GUN143,TGN140..IDNP..(20,20Q,28,28V)..(IDN,PHL)202009-202304

PAINT REQ.

main52159-0K976iGUN143,TGN140..PHLP..(20,28,28V)202102

PAINT REQ.

main52159-0M910iGUN142,TGN140..RHD..IDNP..(20G,20Q,20V,24G,24Q,24V)201511-201607

PAINT REQ.

main52159-0M910iGUN142,TGN140..RHD..IDNP..(20G,20Q,20V,24G,24Q,24V)201511-201607

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52159-0M911iGUN142,TGN140..IDN201511-202012

main52159-0M911iTGN140..(20E,20V)..MA;TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..(IDNP,MAP)..(24G,28E,N)..(IDN,MA,PHL)202009-202304

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K040iGUN142,TGN141..IND..(DCRL,HTWC)201511-202304

52161HPIECE, REAR BUMPER

52169BBRACKET, REAR BUMPER, CENTER

main52169-0K010iGUN142..TH201511-202304

52191BGROMMET, REAR BUMPER STAY

main52191-0K010iTGN140..6FC..MA201511-202304

52462PAD, REAR BUMPER, RH

main52462-0K010iGUN14#,TGN14#..IDNP,MAP,PHLP,VNP201511-201706

main52462-0K070iGUN14#,TGN141..IND201604-201706

52463PAD, REAR BUMPER, LH

main52462-0K010iGUN14#,TGN14#..IDNP,MAP,PHLP,VNP201511-201706

main52462-0K070iGUN14#,TGN141..IND201604-201706

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0K040iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201604-202102

main52575-0K060iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

main52575-0K100iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0K040iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201604-202102

main52576-0K070iGUN142..5F..IND201604-202301

main52576-0K100iTGN140..6FC..MA201511-202304

75392JRETAINER, OUTSIDE MOULDING

7652

8115

8417

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-0K020iTGN141..27V201906-202310

main89348-0K020iGUN143..28V..(GCC,TH);GUN142,TGN14#..LHD..IDNP..(20G,24V,G,SRV)202009-202304

WITH(MLM PACKAGE)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main89348-0K020iGUN143..28V..(GCC,TH);GUN142,TGN14#..LHD..IDNP..(20G,24V,G,SRV)202009-202304

CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-0K020iTGN141..27V201906-202310

main89348-0K020iGUN143..28V..(GCC,TH);GUN142,TGN14#..LHD..IDNP..(20G,24V,G,SRV)202009-202304

WITH(MLM PACKAGE)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main89348-0K020iGUN143..28V..(GCC,TH);GUN142,TGN14#..LHD..IDNP..(20G,24V,G,SRV)202009-202304

CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

90119T0251

main90119-T0251

9015950353

main90159-50353

9015960602

main90159-60602

9015960621

main90159-60621

90159T0018

main90159-T0018

90159T0036

main90159-T0036

9018906242

main90189-06242

90189T0016

main90189-T0016

9046709237

main90467-09237

24 parts on this diagram · 1 diagram in section
